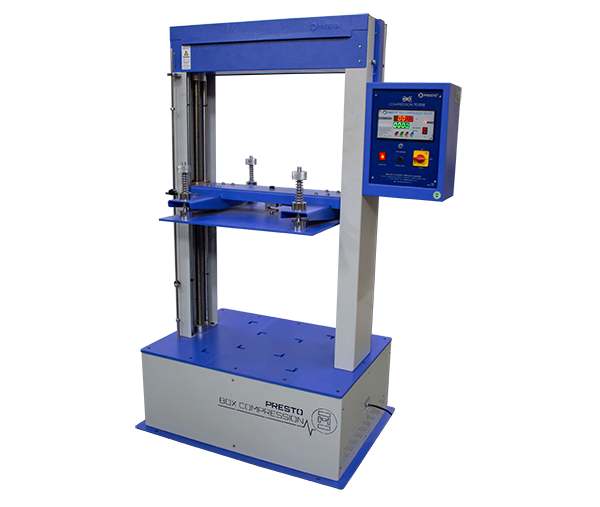

Box Compression Tester

quick info

Box Compression Tester is a consistent tool to indicate the Compression strength of cardboard boxes so that it does not get deformed or crushed when stacked one above the other during storage or transit.

Model

PDBC - 600

Brochure


  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • REVIEWS

OVERVIEW

Box Compression Tester is a consistent tool to indicate the Compression strength of cardboard boxes so that it does not get deformed or crushed when stacked one above the other during storage or transit.  The Compression strength is determined by placing the box on a flat platform and pressing it downwards from the top with the help of motorized arrangement.

Box Compression Tester is designed to quantify box or container performance so that the effect of various board mediums, closures and interior partitions can be plainly compared by means of Load & bend analysis. Presto BOX Compression Tester is manufactured to meet the requirements of the Paper & Packaging Industries according to International Standards. It is ergonomically designed and easy to use.

Presto Box Compression Tester is used to measure the box compression strength (BCT), shape change and stacking capability of cartons, beehive crates, paper tanks, paper cases etc. Box Compression Tester is designed to evaluate compression strength of the corrugated box and the load range selected to completely collapse as peak load or may be with a pre-determined load for a given period to evaluate stacking load. Compression Strength Test also serves as a useful index of over all quality of the material and workmanship of the box.

STANDARD

MATERIAL

INDUSTRY

TEST

SPECIFICATIONS

    • Type: Compression
    • Capacity: 500 Kgf
    • Display: LED (Digital)
    • Accuracy: ± 2% full scale (with master load).
    • Least Count: 200 gm
    • Power: 220V, Single phase, 50 Hz
    • Test Platform Size : 450 * 450 mm
    • Test Speed: 12.5 ± 2.5 mm/min
    • Motor: 1 HP Three Phase , 1350 rpm
    • Standard: ASTM D642, ASTM D4169, TAPPI T804, ISO 12048, and JIS Z0212.


The Instrument comes complete with Instruction Manual, Electrical Wiring Diagram & Calibration Certificate traceable to NABL approved Labs.

FEATURES

    • Microprocessor based display for accurate test results
    • Highly accurate test results under uniform compression Force
    • TARE and Peak Hold Facility Available
    • Overtravel protection
    • Strong base plate with rugged structure
    • Bright LED display
    • Feather touch controls


Available in Computerized model also.

Available in various platform sizes and Load Cell Capacity.

Optional Printer Facility

VIDEO

REVIEWS


I have purchase Box Compression Tester from Presto in 2012. The instrument helps us every time we produce a new lot. The machine is offers the test results in just 5 min. I am happy with the service also. I got time to time response everytime i consult Presto and get a engineer service as well at my door step within 24 hours.

— Kamldeep Singh

I asked for the customisation of the compression testing machine, which was beyond the scope. But the designers of Presto have managed to design one that fits to my requirement and fulfilling the testing standards. Hats off to you guys.

— Bobby Singh

I am a customer of Presto and has been using Box compression tester for years now. I usually have not faced any issue with the performance of the machine but if at all I had anything the support team of presto would have visited us to resolve the issue straight away.

— Raman Rao

One thing I can say about presto is that no one can compete with them in supplying quality instrument.

— Rajesh Kumar
