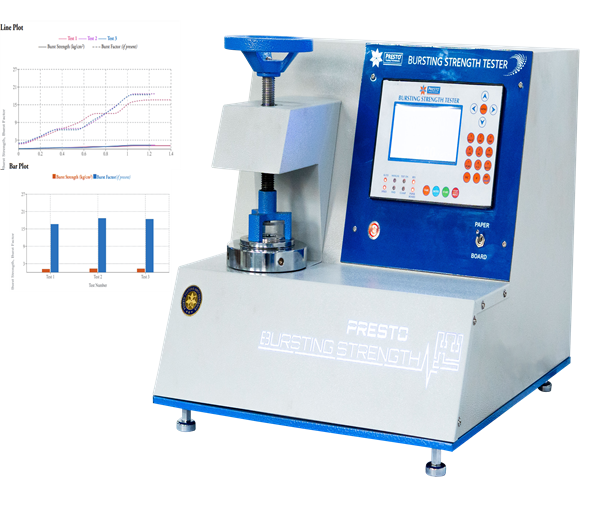

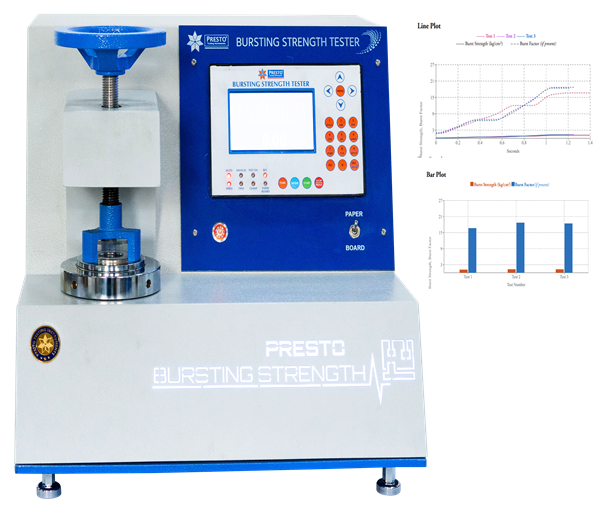

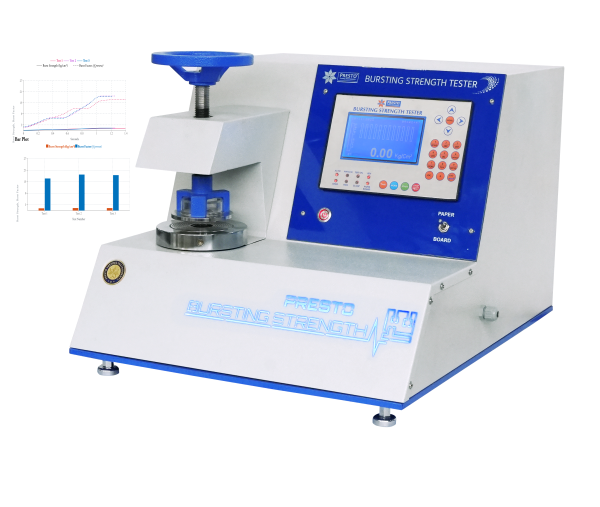

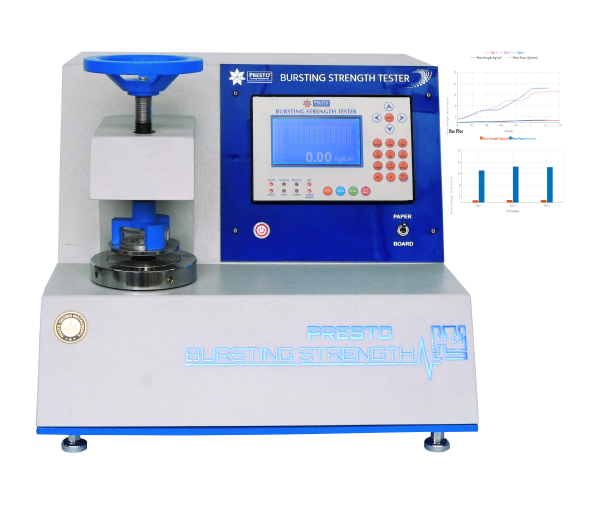

Bursting Strength Tester Digital Cum Computerised Model With Pneumatic Clamping

quick info

It is measured by giving a hydraulic pressure through a rubber diaphragm on a circular area of the specimen of CBF under test conditions. The force required to burst or complete rupture of the board is measured through a Digital Indicator.

Model

PBP - 600 (C)

Brochure


  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • REVIEWS

OVERVIEW

It is measured by giving a hydraulic pressure through a rubber diaphragm on a circular area of the specimen of CBF under test conditions.

The force required to burst or complete rupture of the board is measured through a Digital Indicator. The quality CFB is graded with the value of bursting strength.

Bursting Strength Tester – Digital cum computerized with pneumatic clamping is a consistent tool to indicate the Strength and performance of material like Rexene, leather, paper boards, paper, uneven boards and boxes, industrial fabric and solid fiber boards, filter cloth, plastic films, Foils, sheets, etc. Bursting strength is the force required to burst or rupture the material under testing. Bursting strength of test specimen is expressed in terms of Kg/cm². It is measured by giving hydraulic pressure through a rubber diaphragm on the test specimen.



It comes with Dual System viz.

1) Digital Display (Incase computer is not used/available)

2) Inbuilt hardware & software CD.



The equipment is built on a rigid metal base plate and finished in Autumn Gray & Blue combination painting and bright chrome / zinc plating to give it a corrosion resistant finish.

The Instrument comes complete with Instruction Manual, Two spare diaphragms, Test foil set, Electrical Wiring Diagram & Calibration Certificate traceable to NABL approved Labs.

STANDARD

INDUSTRY

SPECIFICATIONS

    • Display: LED Digital & Computerised both.
    • Clamping:Pneumatic
    • Capacity: 0-40kg/cm2
    • Accuracy: ± 1% within 10% to 90% of entire range as per IS: 1828.
    • Least Count: 0.1 kg/cm2
    • Sensor Type: Digital Sensor.
    • The rate of Fluid: 95 cc/min.
    • Test Fluid: Glycerin about 98% purified (lab grade)
    • Power Supply: Single Phase 220V, single phase, 50 Hz.
    • Motor: ¼ HP, Single Phase 1440 rpm.
    • Paint: Powder Coated along with Gray & Blue color combination finish plated with Bright chrome/zinc.
    • The airline is in customers scope.
    • Electrical Requirement : Single Phase
    • Standards: ASTM D3786, BS 3137, ISO 2758, ISO 3303-1:2012, ISO 3689-1983, IS – 1060 – 1987

FEATURES

    • Single Push Button Operation
    • Auto Sample locking under selectable pressure range
    • Microprocessor based display for accurate test results
    • Peak Hold facility for keeping maximum value of test result in memory
    • Memory to hold up to 9 test reading
    • Highly accurate test results under multidirectional Pneumatic Force
    • Strong Gripping clamps
    • Grooved structure of Test Specimen Holder to avoid slippage and intact holding of specimen under test
    • Bright LED display
    • Graph test report is Pressure Vs Time
    • 10 Sample test reports can be seen on one report
    • Email facility of report
    • Data can be tabulated in excel format
    • Pass/Fail Criteria can be programmed
    • Inbuilt hardware/software CD


Computer & Printer not a part of the offer

VIDEO

REVIEWS


The Bursting Strength Tester with Dual display and pneumatic clamping is the full fledged device for measuring bursting strength. It is a complete package of user-friendly features. All the settings are now possible in few clicks. Thanks for the product.

— Pawan Kumar

With the computerized version and new pneumatic controls, the operators can easily compose testing data and build a comparison graph for materials.

— Rajesh Shukla

When I connect the machine to my computer system, I get an access to a detailed report for bursting strength data. Graphical representation can also be obtained while current running test.

— Mrinal Sharma
