Bursting Strength Tester in Indonesia

quick info

Presto offered highly reliable and standardized Bursting Strength Tester for Indonesia. The testing equipment is primarily used by manufacturers of paper and packaging industries in Indonesia. For manufacturing the final

Brochure


  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • REVIEWS

OVERVIEW

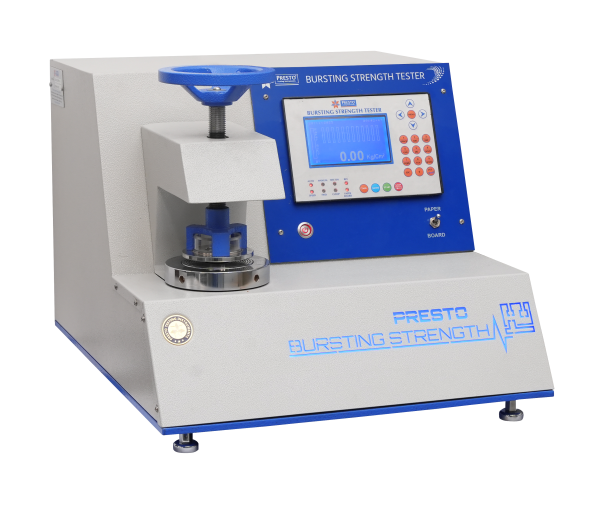

Presto offered highly reliable and standardized Bursting Strength Tester for Indonesia. The testing equipment is primarily used by manufacturers of paper and packaging industries in Indonesia. For manufacturing the final goods, the performance of the products with the quality and strength of the raw material are tested using this testing machine. The quality of various materials can be checked using this instrument such as corrugated boards, paper boards, solid fiber boards, single layered –boards, multi-layered boards and many more. The BS Tester for Indonesia has following five models provided by Presto:

• Analogue Model
• Pneumatic Model
• Digital Model
• Computerized Cum Digital with Pneumatic Clamping
• Computerized Cum Digital with Manual Clamping and

Presto's Bursting Strength Tester for Indonesia – Analogue Model concludes maximum hydrostatic pressure. This is done by applying pressure at an increasing rate via rubber diaphragm that results in collapsing or bursting of the paper material. The exact value of bursting strength provides the exact value of the weight that a box can tolerate to its maximum. The quality of the material can be determined by the value of bursting strength.

SPECIFICATIONS

    • The analogue meters are provided in the analogue model of Bursting Strength Tester for Indonesia that measures the pressure and bursting strength of the material.
    • The device is provided with upper clamp and lower clamp with diameters 30.5mm, and1mm respectively
    • The machine has following dimensions – 60 x 50 x 50cm (L x W x H)
    • The maximum pressure range is 0-7kg.sq.sm and 35kg/sq.cm for the machine
    • The fluid displacement rate of the machine is 95cc/min.
    • The glycerin fluid is added to fill the instrument.
    • The worm reduction type gearbox is fitted in the machine.
    • The ½ HP motor that work on single phase power is equipped with the machine.
    • The power consumption rate for efficient machine operation is ½ KW.
    • The power supply of 220V is also used for machine operation
    • The device is 74 kg (approximate weight) and 90 kg after gross

    The device is designed on the basis of following standards:

    • BS 3137
    • ASTM D3786 / D3786M – 13,
    • ISO 2758,
    • ISO 3689-1983,
    • ISO 3303-1:2012,
    • IS – 1060, 1987

FEATURES

    • The machine is simple to operate.
    • The performance of the machine is highly reliable.
    • The user manual and calibration certificate, which is noticeable to authorized laboratories, are supplied with the machine.
