OVERVIEW

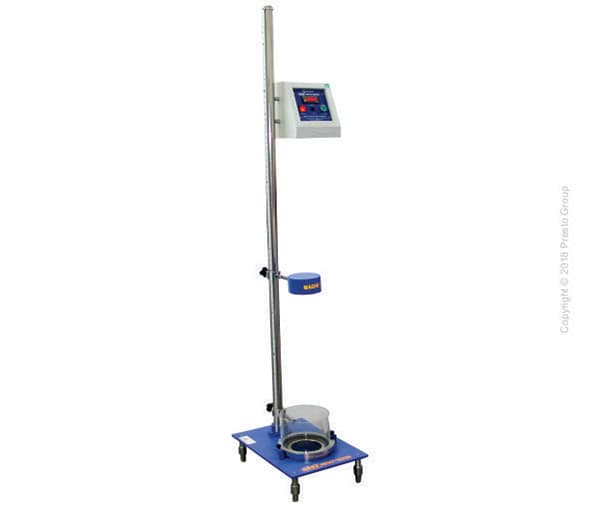

Plastic films constitute a big portion of the materials used in packaging industries. These plastic films are used for packaging and wrapping of a variety of materials and products. In order to provide the best quality of packaging to the clients, it is essential that the plastic films are of best quality. The Dart Impact Tester for Kenya offered by Presto is an efficient and accurate testing instrument that is used for testing the strength of plastic films with great accuracy. The device is capable of providing best analysis of the effect of the force applied on a plastic film through a freely falling dart.

Presto is known to be one of the best exporters and manufacturers of Dart Impact Tester for Kenya, which is used in most of the packaging industries for testing the quality and strength of the plastic films. The instrument is provided with a digital counter for keeping a track of the number of falls made by the darts. The machine is supplied with two different sizes of darts along with distinct sets of weights that are used for commencing two different test methods. The apparatus complies with the test standard ASTM D 1709 and is supplied with a user manual and a calibration certificate.

SPECIFICATIONS

    • The special clamping unit provided with the device has an inner diameter of 127 mm.
    • The test specimen that is tested on the instrument must have a minimum width of 240 mm.
    • The device is fitted with a high-grade electromagnetic release and hold mechanism for administration of free fall of darts.
    • There are two different sizes of darts supplied with the machine with diameters 38 mm and 50 mm for commencing two test methods A and B respectively.
    • The test procedures can be commenced from two different heights that are 660 and 1540 mm.
    • The apparatus is also accompanied by different sets of dead weights that can be used for putting extra load on the darts. The weights are supplied with the denominations of 5 gm, 15 gm, 30 gm, 40 gm, 60 gm, and 90 gm.
    • The apparatus is given with the following dimensions: 500 mm X 350 mm X 250 mm.
    • The appliance has a weight of 38 kg when unpacked and a weight of 68 kg when packed.
    • The device requires an electric power supply of 220 volts 50 Hz for a smooth operation.

FEATURES

    • There is a rigid metallic base plate provided with the instrument for stable performance.
    • The device offers a single push button operation for the administration of the electromagnetic holder.
    • The test with this method can be performed at different heights.
