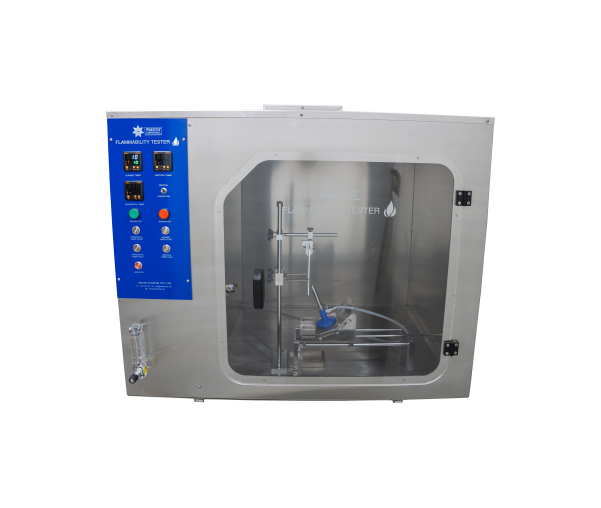

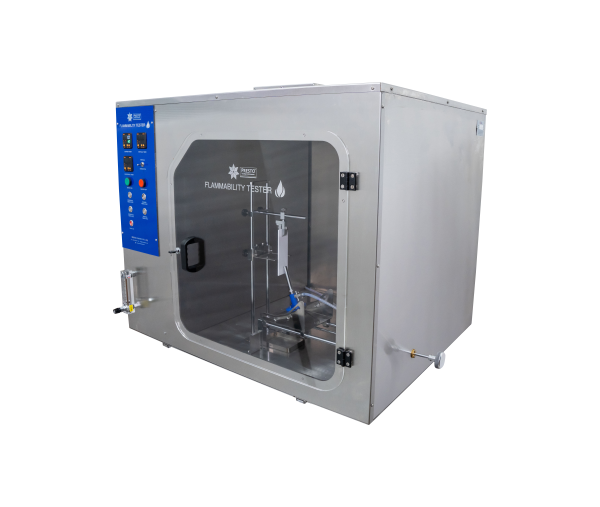

Flammability Tester (UL94) is a smart testing apparatus which is utilized to conduct the Standard test for ensuring the Safety of Flammability of Plastic Materials which are used for Parts in Devices and Appliances.

Model

PFT - UL-94

Brochure


  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • REVIEWS

OVERVIEW

Flammability Tester (UL94) is a smart testing apparatus which is utilized to conduct the Standard test for ensuring the Safety of Flammability of Plastic Materials which are used for Parts in Devices and Appliances.

This is to note that the test doesn’t show the real hazards faced by the specimen in real-life fire accidents. It just helps in categorizing samples as per their flammability quality. Plastic components which are used in electrical appliance or computer device must exhibit some amount of resistance towards the fire. These material are prone to catch fire easily and damage the entire circuit. Customers demand that the plastic component to be selected for a particular appliance must pass the UL 94 standard. Therefore, choosing the best and reliable testing apparatus is very important.

MATERIAL

SPECIFICATIONS

  • Specimen Size - 1/2"X5" for Horizontal and Vertical Burning Test and 8"X2" for Vertical Burning Test using Thin Material
  • Accuracy - ± 2% at full range.
  • Power - 220V, Single phase, 50 Hz
  • Specimen Holder Angle - 45° & 90°
  • Material - Stainless Steel
  • The distance between Burner & Specimen - 10mm±1mm
  • Digital Timer Range - 999.9 Second
  • Digital Timer Least Count - 0.1 second
  • Igniting Flame Length - 20mm±1

FEATURES

  • Equipped with Digital 7 Segment Display
  • Automatic Flame Stop mechanism installed
  • A complete set of specimen holder is available to ensure a strong grip
  • An LPG empty cylinder is also a part of the offer
  • Automated timer initiation through limit switches

VIDEO

REVIEWS


Testing the Flammability of the clothes that are used in automotive industries in vehicles and other similar stuff. To make flame proof products. This is now possible with Flammability Tester. The instrument is easy to use and offers highly accurate results. All the Credit goes to Presto!! 🙂

— Nitish Garg

Presto’s Flammability tester is the most referred product for UL 94 authorization in electronic appliance or parts.

— Jubin Dudeja

This one machine fulfilled all the test modes we required including 94HB, 94V, 94VTM, 94-5V, 94HBF, 94HF and radial one. Great product for use.

— Saqib Khan
