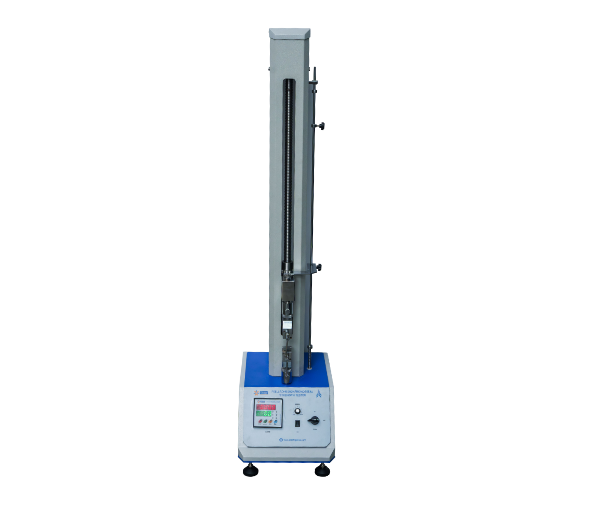

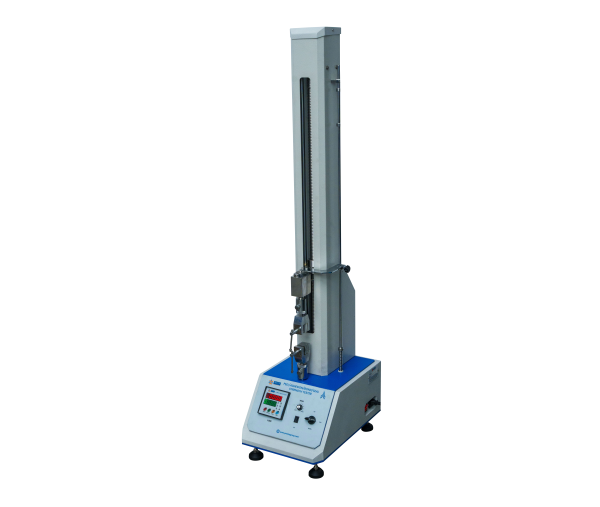

Peel / Seal / Bond and Adhesion Strength Tester

quick info

Presto Adhesion Strength Tester is used to quantify the permanence of adhesion or peel ability of self- adhesive pressure sensitive materials. Peel adhesion is defined as the force required for removing a pressure sensitive coated material.

Model

PPSS-2000

Brochure


  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • REVIEWS

OVERVIEW

Presto Adhesion Strength Tester is used to quantify the permanence of adhesion or peel ability of self- adhesive pressure sensitive materials. Peel adhesion is defined as the force required for removing a pressure sensitive coated material, which has been applied to a standard test plate under specified conditions, from the plate at a specified angle and speed. Presto Adhesion Strength Tester is strictly manufactured as per ASTM standards and is highly recommended for use in the plastic packaging industry.

The Presto Adhesion Strength Tester is built on a rigid metallic base plate and finished in Autumn Gray & Blue combination painting, the instrument has a bright chrome / zinc plating to give it a corrosion resistant finish. The tester comes complete with Instruction Manual; Electrical Wiring Diagram & Calibration Certificate traceable to NABL approved Labs.

STANDARD

MATERIAL

INDUSTRY

TEST

SPECIFICATIONS

    • Load Cell Capacity: 20 Kgf
    • Display: LED (Digital)
    • Accuracy: ± 2% at Full Load (with master load)
    • Least Count/Resolution:  0.020 kgf
    • Power: 220V, Single phase, 50 Hz
    • Speed:  300 mm/min ± 5%
    • Standards: ASTM D903

FEATURES

    • Print out facility is optional.
    • Microprocessor based display for accurate test results
    • Display for Peel Adhesive strength of test specimen
    • Memory to hold up to 9 test reading
    • Highly accurate test results under elongation force
    • Strong gripping clamps to perform Peel test at 180 degree.
    • Bright LED display
    • Feather touch controls
    • Optional: Seal Strength can also be tested using a 90-degree test fixture.
    • Optional Features: Digital cum computerized models, Digital model (with or without printer facility) also available
    • VFD drive multi-speed facility also available (30-300 mm / min.)

VIDEO

REVIEWS


Testing the adhesive strength of my packaging materials was a big problem for me but when I purchased the peel strength tester from Presto, It ahs become very easy for me to test the peel strength of the adhesive tapes and laminates that I use in my industry and enhance the quality of my products.

— Devlin Clark

Very useful tool for checking the seal integrity of the packings. Failure rates of my packings has reduced a lot.

— Ranjeet S. Dev

I found the safety limit switches in the equipment to be very efficient in fixing a specified travel length.

— Keshav Khanna
