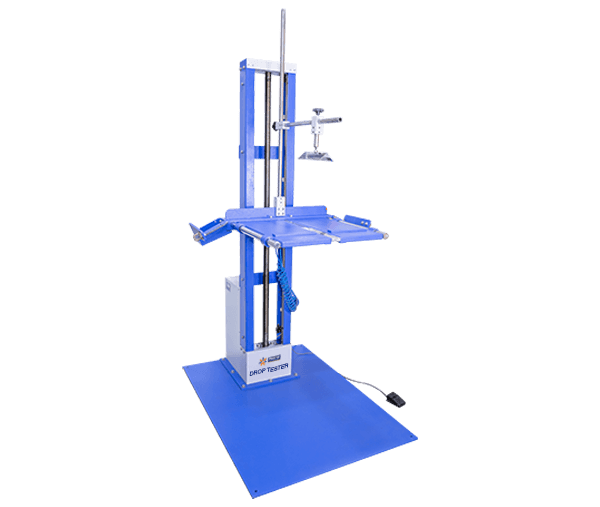

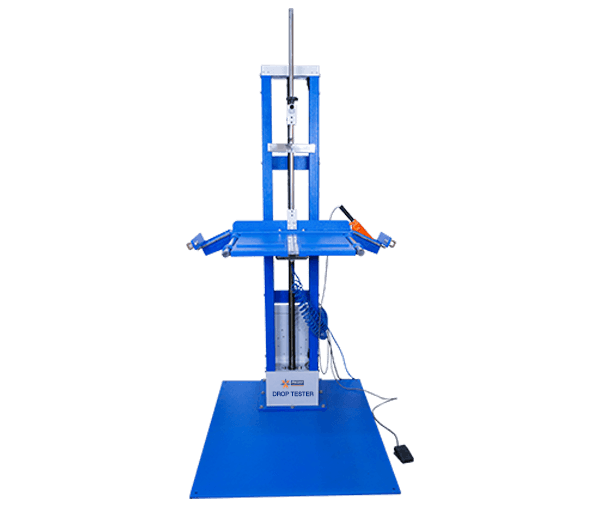

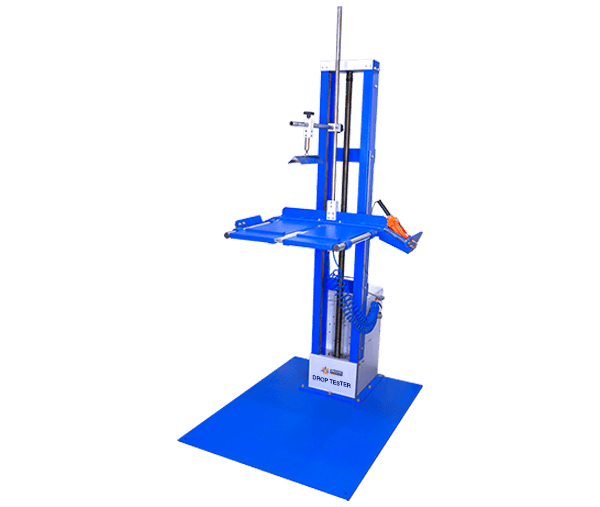

Drop Tester Motorised Pneumatic

Model No. - PDT - 0135



Quick Overview : Drop tester is the perfect machine to test the drop strength of the corrugated cartons. It is equipped with a wired remote-control mechanism to eliminate the human interference. The test specimen is observed visually after it is made to fall from a certain height. The instrument work with pneumatic application and used in almost every industry that deals with corrugated cartons.


Share This Product




Product Description

Drop tester is perfect machine to test the endurance of the corrugated cartons. It is equipped with a motorised arrangement to lift the single wing structure. The pneumatic system operates the wing structure. It has a wired remote control to operate the machine. The boxes are tested on 3 ways, edge wise, corner wise and flat surface. The box places on the wings is carried to a specified height as per the testing standards to drop it. Once the box is dropped, the operator visualises the effect of free fall on the carton. It is widely used in the different industries that deals with carton manufacturing.



Technical Specification




No Image
No Image

No Image
No Image

No Image
No Image

    • Testing drop height – Min - 380mm, Max – 1800mm
    • Maximum dimensions of the test box – L 500 X W 500 X H 500mm
    • Maximum weight of the test box – Up to 60kg
    • Opening Actuation – Pneumatic cylinder
    • Least count – 1mm
    • Dimension of the floor – 1200 X 900 mm
    • Motorised lift speed – 100 mm/minute
    • Power – 220V AC, 5 Amp, Single phase, 50Hz
    • *Compressed air required – Filtered, regulated 5 bar, 5 cfm of air flow
      *Air compressor is not part of supply

Salient Features


    • Top edge holding device with adjustable height as per the test requirement
    • It has havel grey and blue combination with zinc chromium coating for corrosion resistance.
    • Body is made up of mild steel for increased shelf life
    • It has twin flaps as dropping platform.
