quick info

Presto's Edge Crush Tester for Bangladesh is one of the most advanced and sophisticated testing instruments that can be used for assessment of the quality of various packaging materials in the packaging industries..

Brochure


  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • REVIEWS

OVERVIEW

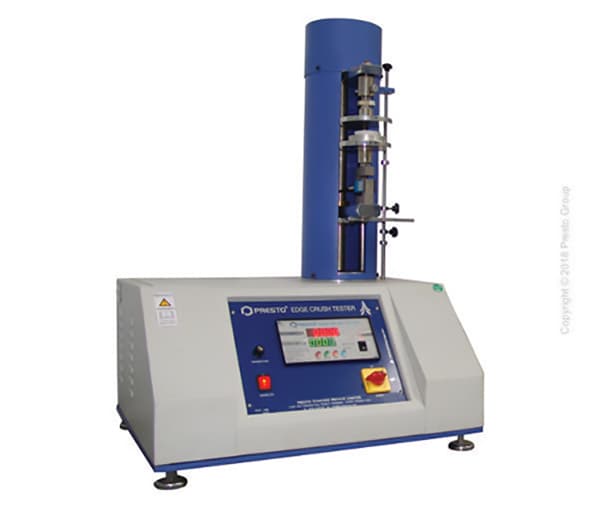

Presto’s Edge Crush Tester for Bangladesh is one of the most advanced and sophisticated testing instruments that can be used for assessment of the quality of various packaging materials in the packaging industries. The instrument is best for analyzing the crush strength of various materials such as paper, cardboard, corrugated boards and so forth. The device is designed by keeping the rugged environment of the industries in mind. It complies with all the essential standards such as IS, ASTM, and BIS. The instrument can not only be used for edge crush test but can also be used for the ring and flat crush test too.

The Edge Crush Tester for Bangladesh offered by Presto is a highly advanced testing equipment that is ideal for testing the crush strength of the materials such as paper, cardboard, solid fiber boards and corrugated board. In this way, the crush strength can be determined to ensure best quality and strength of the corrugated boxes.

The equipment is provided with a digital peak load indicator which allows easy readout of the test results. It can also store up to 9 peak load values that can be used for future reference. The instrument is a table top model that is built on a rigid metallic base plate and is given a blue and gray finish. It is supplied complete with a user guide and a conformance certificate.

SPECIFICATIONS

    • The instrument has a maximum capacity of 100 Kgf.
    • The least count offered by the instrument is a 100-gram
    • The accuracy of the instrument is ±1%.
    • The instrument offers a test speed of 12.5±2.5 mm/min.
    • The instrument requires a power supply of 220 volts Single phase AC with a frequency of 50 Hz.
    • The dimensions of the device are 60 cm X 50 cm X 125 mm (L X W X H).
    • The approximate net weight of the instrument is 93 kg, and gross weight of the device is 110 kg when packed.
    • The instrument complies with IS 7063-2 standard.

FEATURES

    • A digital readout is provided with the instrument for the easy and accurate reading of test results.
    • An S type load cell is incorporated in the machine for accurate electronic force measurement.
    • There is a program lock provided with the machine for prevention of accidental resetting of Peak load indicator.
    • The instrument has an electromechanical loading system.
    • The instrument is operated through sophisticated electronic controls for precision and ease of operation.
