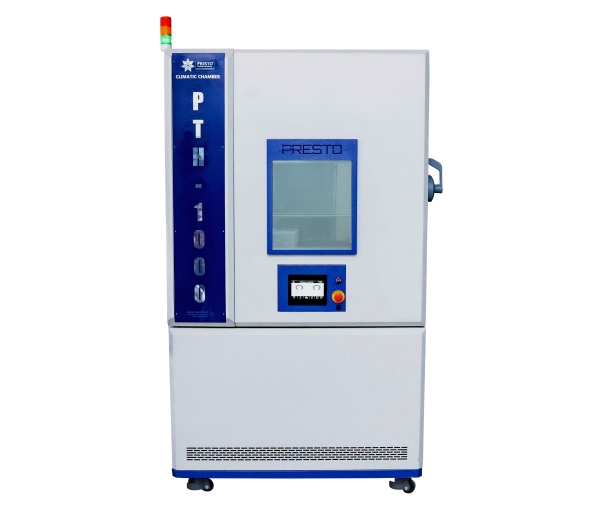

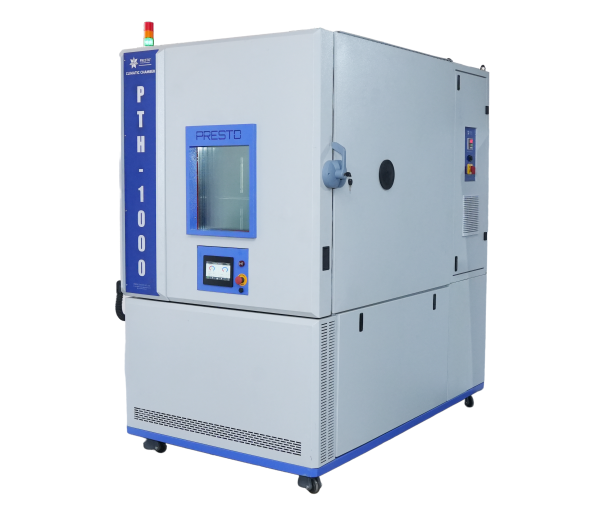

PTH : Programmable Temperature & Humidity Chamber -40℃ to +150℃

quick info

Programmable Temperature & Humidity Test Chamber is the latest technology designed for evaluation of material, product and component's behaviour and its tolerance level in harsh weathering conditions including temperature and humidity.

Model

PTH - 225

Brochure


  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • REVIEWS

OVERVIEW

Programmable Temperature & Humidity Test Chamber is the latest technology designed for evaluation of material, product and component’s behaviour and its tolerance level in harsh weathering conditions including temperature and humidity.

The testing chamber can precisely generate the real-life environmental/climatic conditions in a controlled manner for the stipulated duration. It can deliver a faster assessment of product’s performance and helps in quality improvement. It complies with a wide range of global testing standards which are commonly used for industrial and medical products.

The most commonly tested products are electronic gadgets, home appliances, batteries, plastics, polymers, F&B-Packages, paper products, automobiles, automobile components, metals, building materials, consumer-durables, defence equipment, aerospace, etc.

With the advanced touch screen feature on Programmable Temperature & Humidity Test Chamber, the operator can easily program the test with setting temperature, humidity and time values for rounds of tests. One can have a clear view of the running test values on screen and use it further for assessment. The chamber constructed using high-quality material ensuring long-life working.

SPECIFICATIONS

  • Internal space: 500x750x600mm (225 L)
  • Temperature range: - 40℃ ~ +150℃
  • Temperature uniformity: ≤ 2℃ (empty chamber)
  • Temperature fluctuation: ±1℃ (empty chamber)
  • Temperature Sensor: PT100
  • Humidity range: 20% ~ 98%RH
  • Humidity uniformity: ±3 %RH
  • Humidity fluctuation: ±2%
  • Cooling Ramp rate: 0.7~1.0℃/min
  • Heating Ramp rate: 1.0~3.0℃/min
  • Cycle program: Max. 999 cycles
  • Compressor make: Tecumseh or similar
  • Port Holes for external power: 1 X 50 mm
  • Materials Internal: SUS304 stainless steel
  • Insulation: PU foam, External: SUS304 SS
  • External Dimensions: 1200mmx1100mmx1900mm approx.
  • Power supply: 220VAC 50Hz

FEATURES

  • Allow faster and accurate behaviour evaluation of the product in controlled climate conditions.
  • Machine design and structure complies with global testing standards.
  • Can test a wide range of product, material and component for humidity and temperature effects.
  • High-tech technological features allow easy and smooth operations.
  • Advanced Touchscreen display to set testing parameters and values without any hassle.
  • Live running test values and changes in parameters can be viewed on display.
  • Temperature and cycle graph can be obtained on screen with details.
  • Test data can be extracted via USB portal
  • Easy placement of specimens allowed with two standard trays

VIDEO

REVIEWS


Being a Manufacturer of Electronic devices. I prefer the best quality control chambers to decide the standard of our product. I trust Presto PTH chamber for the same.

— Sunil Bhardwaj

Purchased Presto PTH test chamber to check working performance of batteries. Helped us a lot with detail monitoring system and advanced features.

— Mohit Chauhan

it's been 3 years that we got the PTH machine for material testing. the performance was going well. Still, within this duration, Presto sent their team for service and support at least thrice which is commendable at their end. Great customer care must admit.

— Sumit Tiwari
