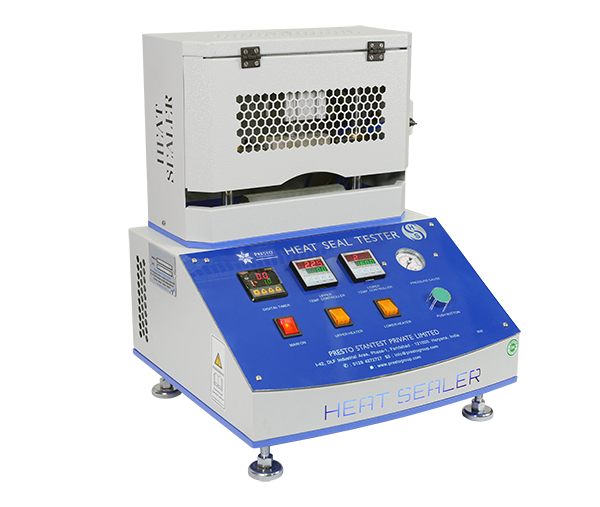

Heat sealing machine is utilized for inspecting the quality of heat seal during the packaging process. The machine is specially designed to deliver real sealing procedures so that the behaviour of the seal could be checked during processing. You can access Laboratory Heat Sealer in Ahmedabad, Gujarat with all the advanced features.
Model PLHS-23
Heat sealing performance of the packaging material is an important standard to check. While performing form filling seal in the production line it is vital that the sealing agents are good enough to have a quick bond between the sealing agent and the packaging material under elevated heat. This is required as the packages after getting sealed are rapidly moved, thrown or dropped from one section to another while in their packaging process. Due to such situations, if the seals are of poor quality they can easily get break down losing the content inside in the packaging line itself.
The lab heat sealing machine imitates the same situation of sealing in rising heat using distinctly shaped jaws after which one can check what kind of bond strength they are delivering. The machine is digitally controlled and is fitted with a PID temperature controller. Three type so specially designed jaws are given – Diamond, straight and plain. You can now get Laboratory Heat Sealer in Ahmedabad with all the features available. Connect our team for a quotation today.
| Equipment Range | Ambient to 250ºC |
| Sealing T emperature Working range | Ambient to 230ºC |
| Accuracy | ± 1ºC |
| Least Count/Resolution | 0.1ºC |
| Power | 220V , Single phase, 50 Hz |
| Sealing size** | 300x 15 mm |
| T emperature Controller | 4 digit PID |
| Dwell Heat Seal time | 0.1 – 99.9 sec |
| Timer | 4 Digit Digital |
| Heat Sensor | Pt-100, Platinum Resistance Temperature Detector (RTD) |
| Sealing Pressure | 2 - 6 Bar |
| T emperature Controller | PID |
| Timer | Digital Preset type |
| Heat Source | Cartridge Heaters |
| Seal Pattern | Straight line, Plain & Diamond Knurling (select any one pattern) |
| T est Performed | Heat Seal |
| Material | Mild Steel |
| Finish | Powder Coated Havel Gray & Blue Combination Finish and Bright Chrome / Zinc Plating for Corrosion Resistant Finish |
| Dimensions | 500 x 476 x 515 mm |
- Microprocessor based display for accurate test results
- Highly accurate test results under pneumatic pressure control
- Single Push button operation after setting PID temperature and time
- Strong heating jaws for performing tests
- No slippage in case specimen is placed uniformly without any loops
- Bright LED display for temperature and timer
- PID temperature controller for highest level of controls and repeatability
- Digital Preset timer
- EN 31 hard and temper sealing jaw material
- Guide rod mechanism for efficient control of sealing
- Independent adjustment of temperature for upper & lower jaws
