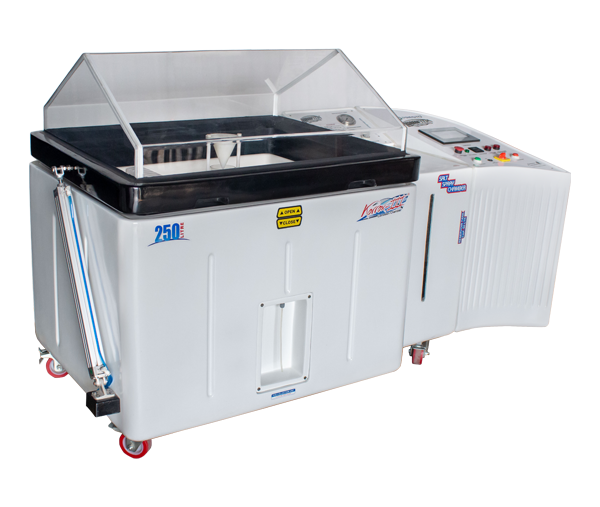

Salt Spray Chamber in Ahmedabad

The material surface containing ferrous in it will definitely react with moisture and salt present in the air or water. On reaction, it will convert the ferrous into ferrous oxide. This can damage the product quality and function both. For securing the product, a protective barrier is required and that can be achieved by application of an effective coating layer. The coating layer is checked for its life span under corrosive environment. The salt spray tester is equipped with a fibre reinforced three-layered walls and uses HMI based touchscreen display. It also allows remote connectivity using LAN network can monitor test from your computer system. The chamber has specially design sample placement area. You can hang or fix the sample on trays. Get Salt Spray Chamber in Ahmedabad with all the required technical support.

Salt Spray Chamber: Industry-Standard Specifications

Presto® Salt Spray (Fog) Tester has been designed strictly as per the relevant standard to assess the ability of rust proofed components to withstand corrosion due to atmospheric conditions. It is triple walled with glass wool insulation.

• Temperature Range: Ambient to 40 Degree Celsius
• Temperature Accuracy: +/- 2 Degree Celsius
• Temperature Control: Built-In PID Temperature Controller with special zero corrosion PT 100 Sensor
• Air Regulator: Ranging from 0 to 30 psi is provided.
• Construction: FRP–Fibre Reinforced Plastic


Related Standards: JIS Z 2371, ASTM B117 – 11

Internal Size (Dimensions in mm):

Korrox™ – 250 – 800 x 500 x 550mm

Korrox™ – 450 – 1000 x 700 x 750mm

Korrox™ – 1000 – 1600 x 700 x 800mm

External Size (Dimensions in mm):

Korrox™ – 250 – 1970 x 990 x 1240mm

Korrox™ – 450 – 2200 x 1150 x 1550mm

Korrox™ – 1000 – 2750 x 1170 x 1650mm

Standard Facilities:

All models of the salt spray tester are equipped with Air purging, Air Regulators, Time totalizer, Cyclic Timer, Gauges and Specimen racks

Corrosion Tester: Innovative Features for Superior Testing

Characteristics of the touch screen include:

• 7″ TFT LCD color screen
• 480 x 234 pixels IP 65 complaint
• Provides USB Host for USB flash drive
• ARM9 32-bit CPU
• Supports CF memory card
• 3M Flash Memory
• USB 1.1 for high-speed screen data download
• 256K bytes SRAM
• 3 sets of COM ports for multiple
• Supports Ethernet communication protocols
• 8 function keys

Additional New Innovative Features Salt Fog Test Chamber

• The Salt Spray Tester is equipped with Ethernet Technology, which allow user to connect other devices utilizing LAN or internet network. Any computer system, or electronic device with Ethernet adapter or network card can be connected to the network.
• Experience remote operation and monitoring of HMI functions with inbuilt VNC server through VNC client app like Windows, iOS, and Android.
• Special Locking function reduces chances of delivering unsynchronized commands during on-site operation by blocking the remote operation feature. Once the Lock function is ON, the VNC server will only allow the user to have remote monitoring but no remote operation.
• Now one can directly monitor the registered test data using web page on computer systems, no need to install any software program.
• Installed a safety feature termed as Alarm notification system. All logged in recipients will automatically receive Alarm notification emails on their system in case of alarming conditions and also ensure secure data transfer by supporting Secure Sockets Layer (SSL) protocol.
• Take control on your sample timings with 10 Pre-set timers.
• No language limitations on HMI functions with English and Hindi interchangeable font setting.

Buy a Salt Spray Chamber from Presto Group, the leading manufacturer & Supplier of Salt Spray Chamber. Get the best price from our technical team and ensure top performance for your testing needs.
