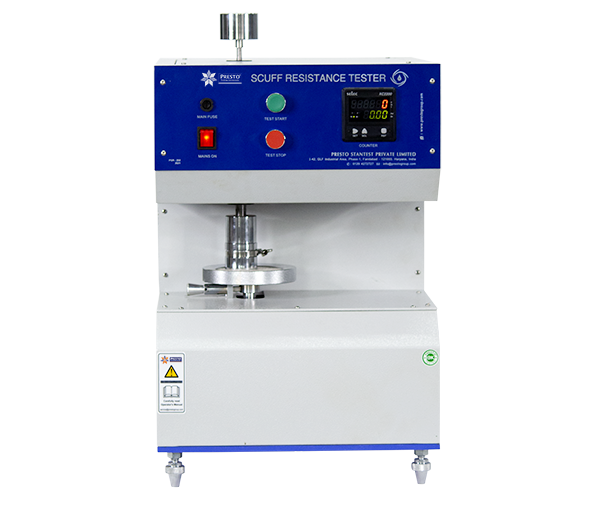

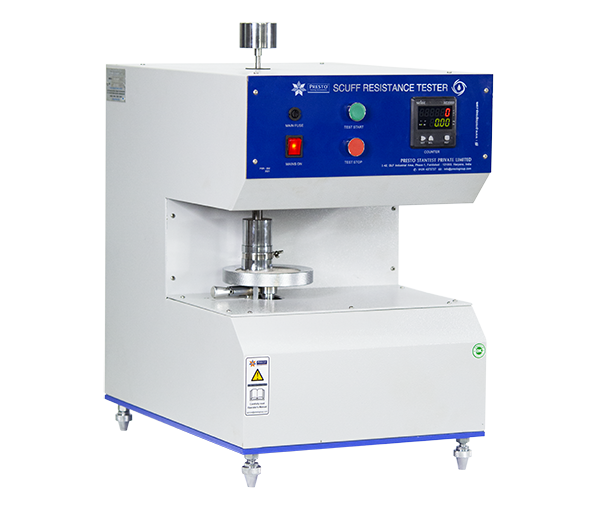

Scuff testing machine is utilized for performing test procedures on the printed and coated material. It inspects the amount of colour transfer from printed or coated surfaces when subjected to rubbing or scuffing activities. The Machine can examine the resistance a specimen can deliver towards scuffing without damaging itself. Now you can also get Scuff Tester in Ahmedabad, Gujarat by connecting with our team today.
Model PSR - 292 (Prima)
Printed or coated surfaces which can be on a flexible packaging film or paper, even printed newspaper or any magazine cover. Usually, any printed or coated surface which is exposed to rubbing with other surfaces may lose their print and colour quality. To inspect how much resistance it can deliver against scuffing, Scuff testing machine is utilized. The tester is built according to ASTM F2497-05, and BS 3110:1959 test standards. It is fitted with a 2 psi weight which is utilized for putting a load on the test sample and ensuring evenness in each repeatable test cycle. The specimen test area has a rotating upper base which is linked with a motorised arrangement for noise-free and smooth rubbing actions. The machine is also fitted with a digital pre-set timer for counting the number of rotations. Get Scuff Tester in Ahmedabad and experience the best testing solution for improving scuff resistance.
| Test Weight | 2 psi |
| Display | HMI (Touchscreen) TFT LCD 65536 Colors 480 x 234 pixels Size : 4.3 Inch |
| Counter | 4-digit (Inbuilt in HMI) |
| Max. range of counter | 9999 |
| Least Count of counter | 1 |
| Blower | High speed blower rpm 2500 -2900 |
| Rotational Speed | 60rpm+_ 1 rpm |
| Control | Programmable logic control |
| Diameter of Upper Clamp | 48+_ 2 mm |
| Diameter of Lower Clamp | 120+_ 2 mm |
| Power | 220V, 50Hz, single phase |
Highlights:
| Safety Lock | Yes (with upper clamp) |
| Sample Preparation templates | 3 nos |
| Material | Mild Steel |
| Finish | Power coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish |
| Dimensions | 220V, 50Hz, single phase |
- HMI based Touchscreen Model
- Motorised Weight arrangement on plunger for noise free working
- Highly accurate test results under uniform load and specified diameter.
- Uniform load by weights on test sample for evenness in testing
- Provision of Set number of counts through HMI.
- Firm hold of test specimen by circular clips/clamps
- Motorised Geared system for scuff movement
- Pre-settable counter upto 9999 counts inbuilt in HMI.
- Incorporated with blower to remove unnecessary particulates during testing.
- Highly accurate and precise results under uniform load and rubbing clamp movement
- Pass/Fail Criteria can be programmed
- Program Profile for selecting test parameters and performing the test.
- Easy Data Management. User can create product identification, user name, set count, set weight etc.
- Blower with set counts and Auto/Manual operation.
- USB option available for storing test data
- Data output in data record format.
- History Data involves User name, date, time, counts etc.
- Accurate rpm of rotating discs using induction motor driven system.
- User friendly electronic controls and ergonomically designed feature
