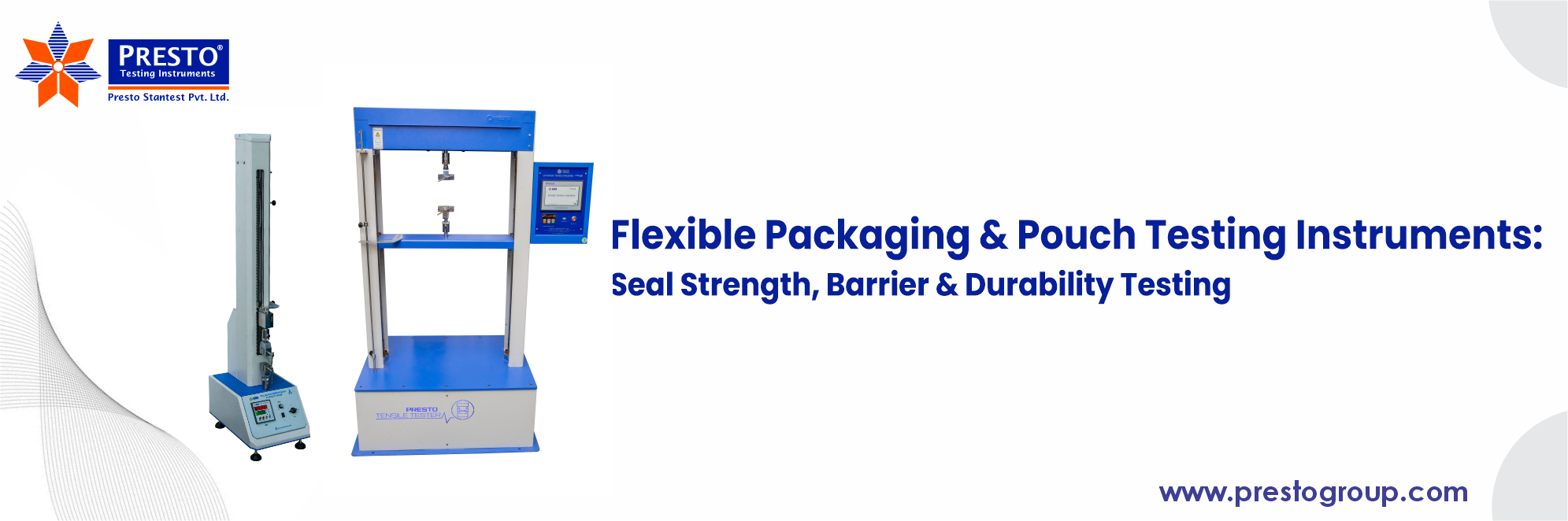

Flexible Packaging & Pouch Testing Instruments Seal Strength, Barrier & Durability Testing

Packaging and Pouch Testing instruments help manufacturers verify three basic things before a package ships to market: seal strength, barrier performance, and durability. Here, the goal is to eliminate complaints, prevent recalls, and cut down expenses.

This article explains common pouches and flexible packaging tests in use across industry verticals.

Why Testing Matters for Pouches

Stress is at every stage of the packaging. The companies pass packages through form-fill-seal machines, heat-sealed machines, dropped into cartons, stack them on pallets, and ship them through hot or humid conditions. Even a tiny defect can become a leak or a stale product.

Testing helps with everyday decisions, such as:

• Is the seal strong enough for shipping & handling?
• Will the pack be protected from oxygen and moisture?
• Will the package resist puncture, tear, and flex cracking?
• Is production consistent across shifts and suppliers?

This also aids with compliance. Many industries document quality controls, especially food and pharma.

Seal Strength Testing Instruments

A seal is the pack’s main line of defense. If the seal is weak, nothing else matters. Seal strength testing instruments measure how much force it takes to pull a seal apart. This gives a clear number that can be tracked over time.

1) Seal strength tester

Most seal strength testing uses a tensile tester or universal testing machine with grips. A strip is cut from the pouch seal area, clamped, and pulled at a controlled speed. The instrument records the peak force and the seal failure pattern.

It indicates:

• Whether the seal meets a target strength
• Whether the seal fails evenly or peels in weak spots
• Whether the settings and dwell time are correct

Common seal failure modes that technicians look for:

• Peel failure, the seal opens cleanly with low resistance.
• Tear failure, the package tears before the seal opens, often a strong seal
• Delamination, layers separate, which points to laminate issues

2) Hot tack tester

Hot tack matters on high-speed packaging lines. A seal may look fine after cooling, but it must hold immediately after sealing, while still hot. A hot tack tester measures seal strength at different temperatures and short dwell times.

This helps answer practical questions:

• Can the pack survive the next machine step right after sealing
• Is the sealing window wide enough to handle line variation

3) Burst and creep testing for seals

Some pouches, especially spouted or heavy liquid packs, face internal pressure. Burst testing inflates the pouch or pressurizes it until failure. Creep testing holds a constant load or pressure over time to see if the seal slowly opens.

These tests are useful for:

• Liquid detergents and sauces
• Medical and sterile packs
• Packs stored under pressure changes

Leak Testing for Pouches

A seal can pass a strength test but still leak due to pinholes, channels, or contamination. Leak tests help find those real-world issues.

1) Vacuum leak tester

A pouch is submerged in water inside a vacuum chamber. When a vacuum is applied, air escapes from leaks, and bubbles appear. It is simple and widely used for routine checks.

Best for:

• Finding gross leaks and seal channel leaks
• Quick pass fail checks on the shop floor

Limitations:

• Very tiny leaks may be missed.
• Test results depend on the operator's observation.

2) Vacuum decay leak test

This is a dry, more quantitative method. The pouch testing equipment is placed in a chamber, a vacuum is applied, and the instrument measures the vacuum loss over time. A faster loss indicates a leak.

Best for:

• More consistent results than bubble testing
• Higher sensitivity setups, depending on the chamber and method

3) Pressure decay methods

Some systems pressurize the pack or chamber and measure pressure drop. This can fit certain pouch types and production setups.

Barrier Testing Instruments

Barrier performance means how well the package blocks oxygen, water vapor, and sometimes gases like carbon dioxide. Barrier tests help predict shelf life. For many products, barriers matter more than appearance.

1) Water vapor transmission rate (WVTR) tester

WVTR measures how much water vapor passes through a material over a set time. This is critical for powders, snacks, and hygroscopic products that clump or lose crunch.

Teams use WVTR data to:

• Compare package structures and coatings.
• Confirm supplier consistency.
• Estimate moisture-driven shelf life risk.

2) Oxygen transmission rate (OTR) tester

OTR measures how much oxygen passes through a package. Oxygen drives oxidation, rancidity, color change, and loss of aroma. Coffee, nuts, chips, and many pharma products depend on low OTR packages.

OTR testing supports:

• Selecting high barrier laminates
• Validating EVOH, aluminum foil, and metallized layers
• Checking for the presence of pinholes or poor lamination

3) Gas permeability and modified atmosphere packs

Some foods are packed with a specific gas mix. In those cases, barrier testing and package integrity become linked. A small leak can ruin the gas mix quickly.

4) Thickness gauge and GSM measurement

Barrier often correlates with thickness and layer structure. Simple thickness checks can catch supplier drift before it becomes a shelf life issue. GSM helps confirm material usage and cost control.

Durability and Mechanical Strength Tests

Flexible packaging must survive handling, drops, vibration, and rough contact with other packs. Puncture, tear, and general package strength are tested.

1) Puncture resistance tester

Puncture tests determine how hard a probe pierces the package. This is critical for packs having sharp contents, like frozen foods, bone-in meat packs, or products with corners.

It helps prevent:

• Holes during shipping
• Micro leaks that spoil food
• Customer complaints about messy packaging

2) Tear resistance tester

The tear resistance tester checks how easily a tear spreads once it starts. Some must resist tearing, and some require controlled, easy-open features. Testing balances toughness with user convenience.

3) Coefficient of friction tester

COF tests the package surface to see how slippery it is. Too slippery, the packs slide off the conveyors. They get sticky and jam in machines. COF testing stabilizes packaging line performance.

4) Tensile strength & elongation tests

This test determines how strong the package is, how far it stretches before breaking - packages that stretch too much deform during packaging.

5) Flex crack resistance

Some barrier layers crack upon repeated bending. Flex testing simulates repetitive handling to determine if cracks develop, which increase OTR or WVTR with repeated handling. This is important for metallized packages & coated structures.

Common Standards and Importance

Testing standards largely depend upon the industry and the corresponding test procedure. However, the most common standards include ASTM or ISO methods for tear, seal strength, WVTR, OTR, puncture, and COF.

A practical approach is to ask:

• Which standard does the customer require?
• Which standard matches the product risk, food, pharma, and industrial?
• Which method fits the pouch format and thickness range?

How Do Labs and Plants Use These Tests?

Most teams do not rely on one test. They build a small test plan that covers seal, leak, barrier, and mechanical strength.

A simple example for a snack pouch:

• Seal strength test to confirm sealing settings
• Leak test to catch channel leaks from crumbs in seals
• OTR test for shelf life protection
• COF test to keep the machine feeding stable
• Puncture test to reduce damage in shipping

For liquid pouches, the plan often includes burst testing and long-duration creep tests.

How to Choose the Right Testing Instruments

Selecting instruments becomes easier when the team focuses on real problems rather than buying every option.

Key selection points:

• Sample type: flat package, finished pouch, spouted pouch, sachet
• Sensitivity needs, gross leak detection vs micro leak
• Throughput, quick checks on the floor vs detailed lab testing
• Data and compliance, digital records, audit trails, calibration support
• Ease of use, clear fixtures, guided workflows, and low operator variability
• Service support, local calibration, spare parts, training

It also helps to confirm the sealing and laminate structure upfront. Different materials behave very differently under the same test.

Common Packaging Failures

Many failures look small but cause high costs.

Typical issues include:

• Seal channels from product contamination in the seal area
• Weak seals from incorrect temperature or pressure
• Pinholes from handling or poor laminate quality
• Barrier drift when suppliers change resin or coating
• package that increases oxygen ingress over time
• Poor COF that leads to line stoppages and rework

A steady testing routine can catch these before the packs reach distribution.

Wrapping Up

Need help setting up a flex packaging test plan or choosing seal strength, barrier, and durability instruments for pouch format?

Request a shortlist according to pouch type, product category, and target shelf life. We suggest the right seal strength, tests, as well as sample preparation & calibration support.
