Paper GSM Testing Machine Measuring Paper Weight for Packaging Quality Control

Introduction: Why Paper GSM is Important for Packaging?

In packaging, paper weight is related to strength, protection, and performance. The standard way of expressing this weight is in grams per square meter. When manufacturers control GSM, they can control how a box behaves on a packing line, in transport, and on shelves.
A simple paper GSM testing machine can measure this weight reliably for each batch of paper or board.

How GSM Works and its Measurement?

GSM defines grams per square meter and gives a measure of how many grams a one-square-meter sheet of paper weighs. Higher GSM  means thicker, tougher paper or board; lower GSM is a lighter and more flexible material.

No one cuts a square meter in practice. A small, precise sample is instead taken, weighed, and converted to GSM by a simple formula. The basic principle is:

• Cut a known area of paper.
• Weighing the sample in grams.
• Calculating GSM from weight and area.

A typical formula used by packaging and paper labs is: GSM = weight of sample in grams ÷ area in square meters. Most GSM kits simplify this by using a fixed-size cutter so the instrument or chart shows the weight value in GSM.

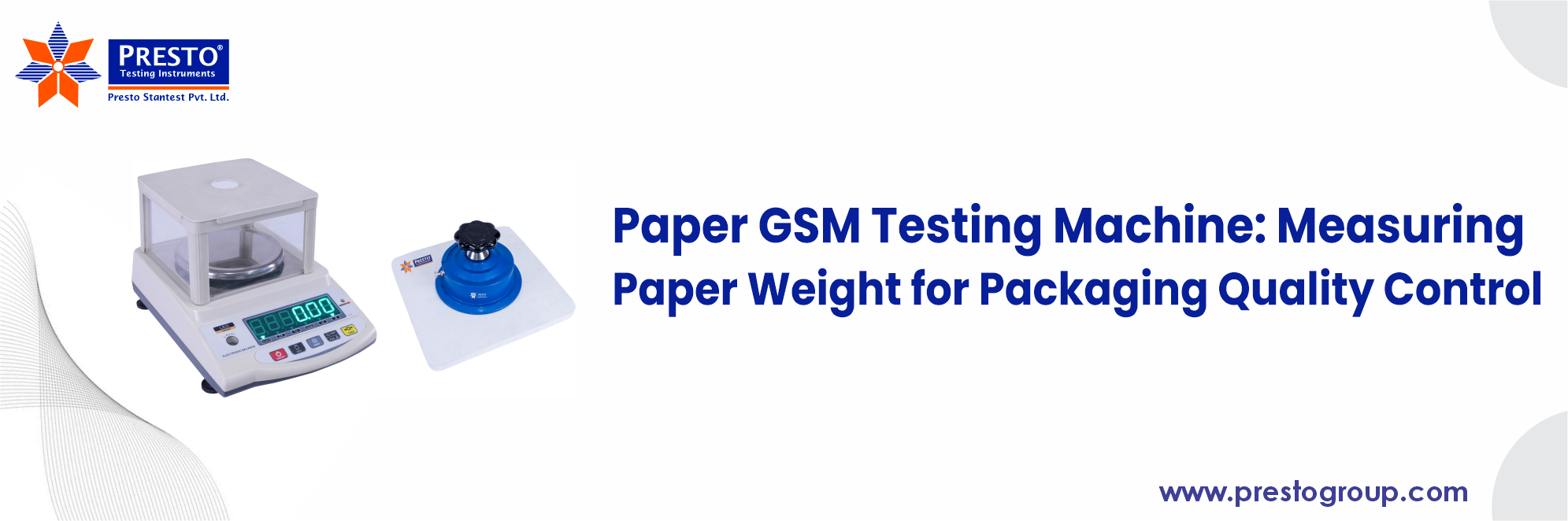

Components for the Paper GSM Testing Machine

A paper-based testing machine usually comes in a small kit for quick lab or shop-floor checks. Manual, semi-automatic, or fully digital, but most setups feature three main components.

Key components include:

• GSM cutter: A round or square cutter that cuts a sample of the same area.
• Precision balance: An accurate digital scale for measuring sample weight.
• Support accessories: Cutting pads, safety handles, calculation charts, etc.

Some advanced GSM testers combine weighing and calculation in one unit, showing GSM on a digital display without requiring any manual math. All cases seek repeatable weight-to-area values with little operator variation.

How a GSM Testing Machine Works?

The operating process for a paper GSM testing machine is easily adaptable for lab staff, supervisors, and others in the domain. The process is similar for paper, duplex board, carton liners, and many other sheet‑like materials.

Typical steps are:

1. Sample cutting

• Place the sheet on the cutting pad.
• Use the GSM round cutter or template to cut a sample of a fixed area.

2. Weighing the sample

• Turn on the digital GSM balance and take it to zero.
• Place the cut paper sample on the pan and record the weight in grams.

3. Calculating GSM

• If using a simple setup, apply the GSM formula or use the supplied chart for that cutter size.
• If using an integrated GSM tester, read the GSM value directly on the display.​

4. Recording and comparing results

• Log GSM values for each batch or roll.
• Compare with the specified target GSM and tolerance range for that packaging grade.

This standardised process makes GSM checks quick enough for routine incoming material inspection, in‑process checks, and final quality approvals.

Role of GSM Testing in Packaging Quality Control

For packaging converters, grams are more than a number. It forms the basis of predictable box & carton performances. Other properties like stiffness, compression strength, and print quality are easier to control when GSM remains within a narrow range.

In several ways, GSM testing contributes to quality control:

• Verifies supplier compliance: This shows that paper or board shipped by mills conforms to purchase specifications.
• Supports line setup: The correct GSM sets machine tensions, creasing pressure, and cutting parameters.
• Reduces customer complaints: Stable packaging eliminates box crushing, tearing, or over-soft cartons in the field.

Including GSM checks in standard quality plans allows manufacturers to link paper weight data to bursting strength, edge crush, and Cobb tests.

Benefits of a Paper GSM Testing Machine

A dedicated paper GSM testing machine is a technical and commercial opportunity for packaging producers.  Key benefits include:

• Consistent product quality: Periodic checks make certain every box or carton line uses material with the specified weight band for uniform performance across batches.
• Material and cost optimisation: Controlled paper usage and weight avoids unnecessary weight, thus reducing costs while meeting strength targets.
• Less process waste: The early detection of off-GSM rolls stops production using the wrong material before large volumes are converted and scrapped.
• Better compliance and documentation: Measured GSM values are added to audits, certifications, and customer documentation proving that packaging meets agreed standards.

These advantages help packaging companies improve margins and establish a reputation for quality, engineered products over time.

Typical GSM Ranges for Packaging Papers

Different packaging applications demand different GSM ranges to balance strength and cost. While exact values vary by region and design, some general brackets are widely used in the industry.

Below are indicative ranges for common uses:

Packaging use case	Typical GSM range	Purpose
Lightweight wrappers	35–60 GSM	Simple protection, inner wraps, low load. ​
Labels and inserts	70–120 GSM	Printed labels, inserts, instructions.
Folding cartons (mono cartons)	200–350 GSM	Cosmetic boxes, FMCG cartons, pharma mono cartons.
Heavy cartons and sleeves	350+ GSM	Rigid cartons, premium boxes, extra stiffness.

*Ranges are indicative; Actual specifications vary by plant product, design, and standards*.

For corrugated packages, every layer - liner and fluting - has its own grammage, and total board performance depends on the combination. GSM testers may measure each component layer separately to support board design and quality checks.

Best Practices for Accurate GSM Measurement

To obtain repeatable GSM values, operators must perform a simple but disciplined testing routine. Small error margins in cutting or weighing can produce misleading results when tolerances are tight.

Useful best practices include:

• Sharpen a calibrated cutter: Dull blades cause uneven edges and incorrect sample areas.
• Keep the balance stable: Place the GSM scale on a vibration‑free, level surface and check the zero before each measurement.
• Condition samples where needed: For critical tests, allow paper to stabilise at standard temperature and humidity before testing.
• Test multiple samples: Take readings at different positions on the roll or sheet and use an average value to reduce local variation effects.

With these basic controls, a GSM testing machine becomes a dependable daily tool rather than an occasional check.

How GSM Testing Supports Sustainability in Packaging

The push for lighter, more sustainable packaging makes grammage control even more important. Brands want to cut material usage without sacrificing performance, and precise GSM measurement enables this “light‑weighting” safely.

By accurately tracking GSM, packaging converters can:

• Reduce paper consumption per box by optimising designs and grades.
• Prove that new, lighter structures still meet performance requirements.
• Avoid unnecessary over‑specification that adds cost and environmental impact.

In this way, a simple grammage tester supports both cost reduction and sustainability goals in modern packaging operations.

Strengthen Packaging Quality with GSM Testing

Manufacturers who depend on paper and board for boxes, cartons, inserts, or labels can improve control, reduce waste, and protect their brand image by adding regular GSM checks to their quality routine. A compact paper GSM testing machine is easy to install in the lab or near production and quickly becomes a daily essential.

Packaging plants looking to:

• Reduce complaints and rejections,
• Optimise material and cost, and
• Support sustainability and compliance,

By making GSM a monitored parameter rather than an assumption, manufacturers can ensure each pack leaving the factory has the right weight, strength, and durability.
