Salt Spray: Step-by-Step Guide to Corrosion Testing

The Hidden Foe: A Tale of Rust and Decay A high-end car manufacturer is bringing out a new model with a stunning look and advanced engineering after six months of manufacturing, warranty claims begin to multiply. Why? Small but critical fasteners on the chassis are rusting out way too early. The fasteners are completely adamant with red rust. The supplier guaranteed a protective coating, but it simply failed to live up to any everyday salty, marine condition tests.

This example simply explains one of the greatest struggles manufacturing Corrosion is metal's arch-nemesis. When this is relevant, it typically involves applying a salt spray test, or salt fog testing. It's an accelerated laboratory method that has saved numerous industries millions by stressing out weak links before they fail in the field.

Let's get into what this test is, who depends on it, and the exact steps that characterize a successful salt spray testing process.

What is the Salt Spray Test?

The salt spray test is a renowned test internationally, to determine the comparative corrosion resistance of coatings on metals. It exposes the test subjects to a fine, dense salt water fog in a controlled environment to simulate years of natural wear and tear, in hours or days.

The Core Technology: How the Salt Spray Chamber Works

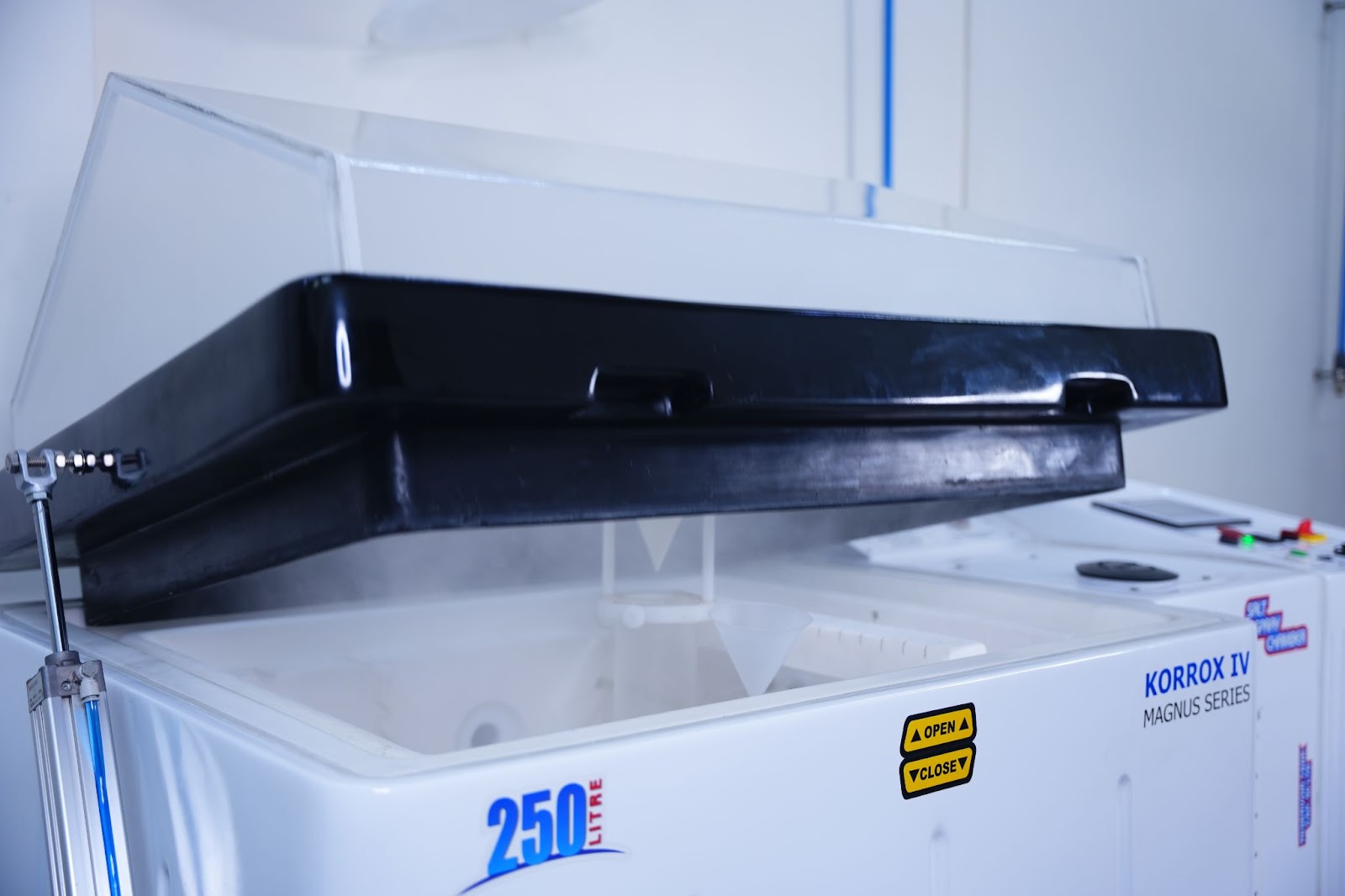

In the centre of the process lies the specialized equipment, commonly termed as a salt spray test chamber or salt spray corrosion test chamber. The device is an enclosed box, often made of corrosion-proof materials such as Fiber Reinforced Plastic (FRP) or non-metallic polymers, to resist the extremely aggressive internal atmosphere.

The Mechanism: Salt Spray Chamber Working

The working principle of the salt spray chamber is cleverly simple but precisely controlled:

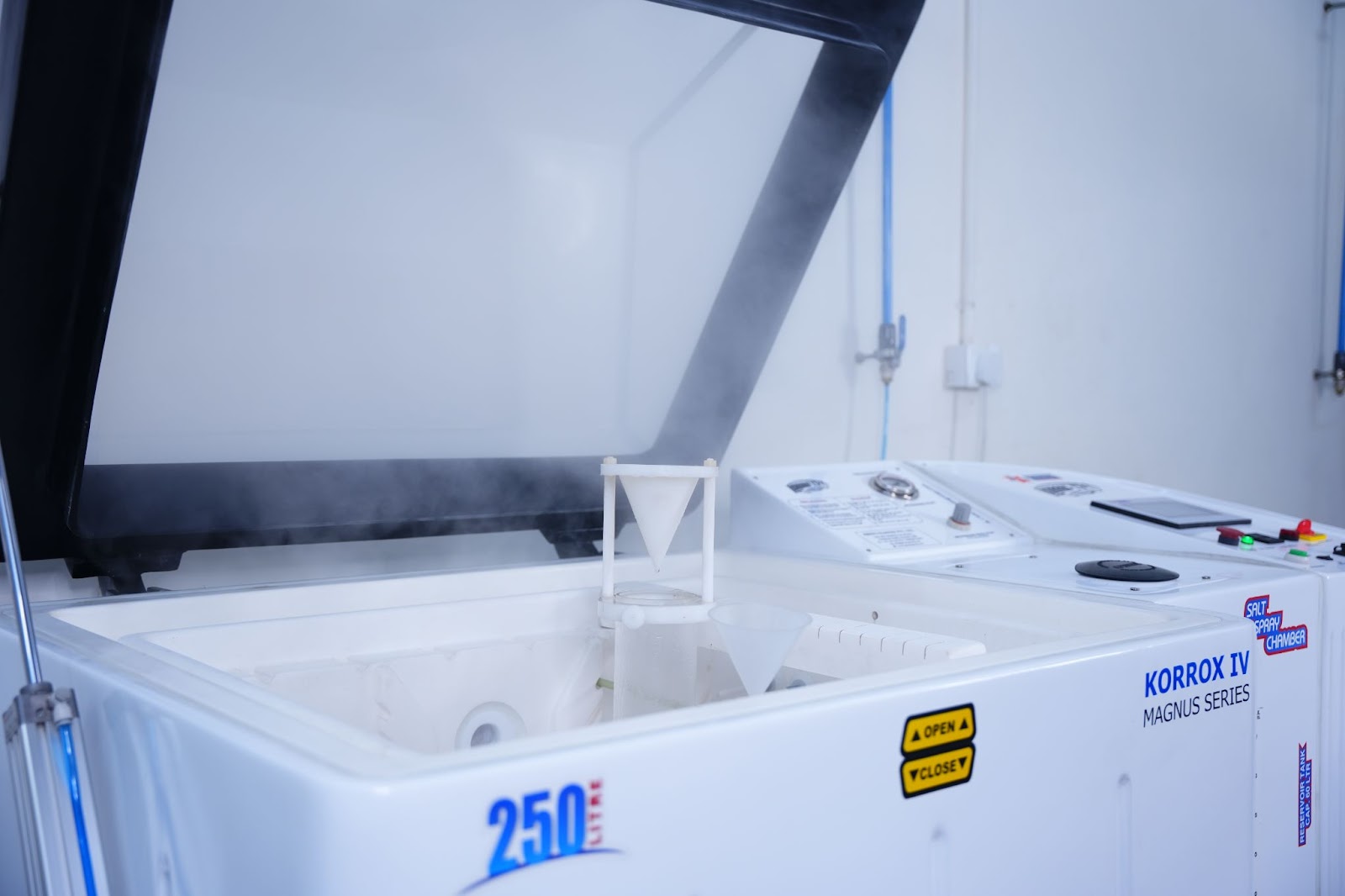

Atomization: The pressurized, saturated air intersects with the salt solution through a proprietary spray nozzle. This mechanical process generates a coarse, thick, corrosive fog or mist that fills the test space of the salt spray test chamber.

Controlled Environment: The chamber itself is maintained at a consistent, elevated temperature (e.g., 35 degree) to maximize the corrosion process.

The success of the test depends on the chamber to keep the fog settlement rate consistent—the amount of fog settled over a given area in an hour—which needs to be between 1.0 and 2.0 mL /80 cm square/hour.

Salt Spray Testing Procedure: How is it Done?

Step 1: Preparations

Test specimens (panels, fasteners, or final parts) should be cleaned to the standard and only handled by their edges to avoid contamination. For coated specimens, edges are usually guarded, yet occasionally a scratch or scribe line is deliberately applied (in accordance with ASTM D1654) to assess the capability of the coating to resist corrosion from seeping under the surface from a defect.

Step 2: Orientation and Position

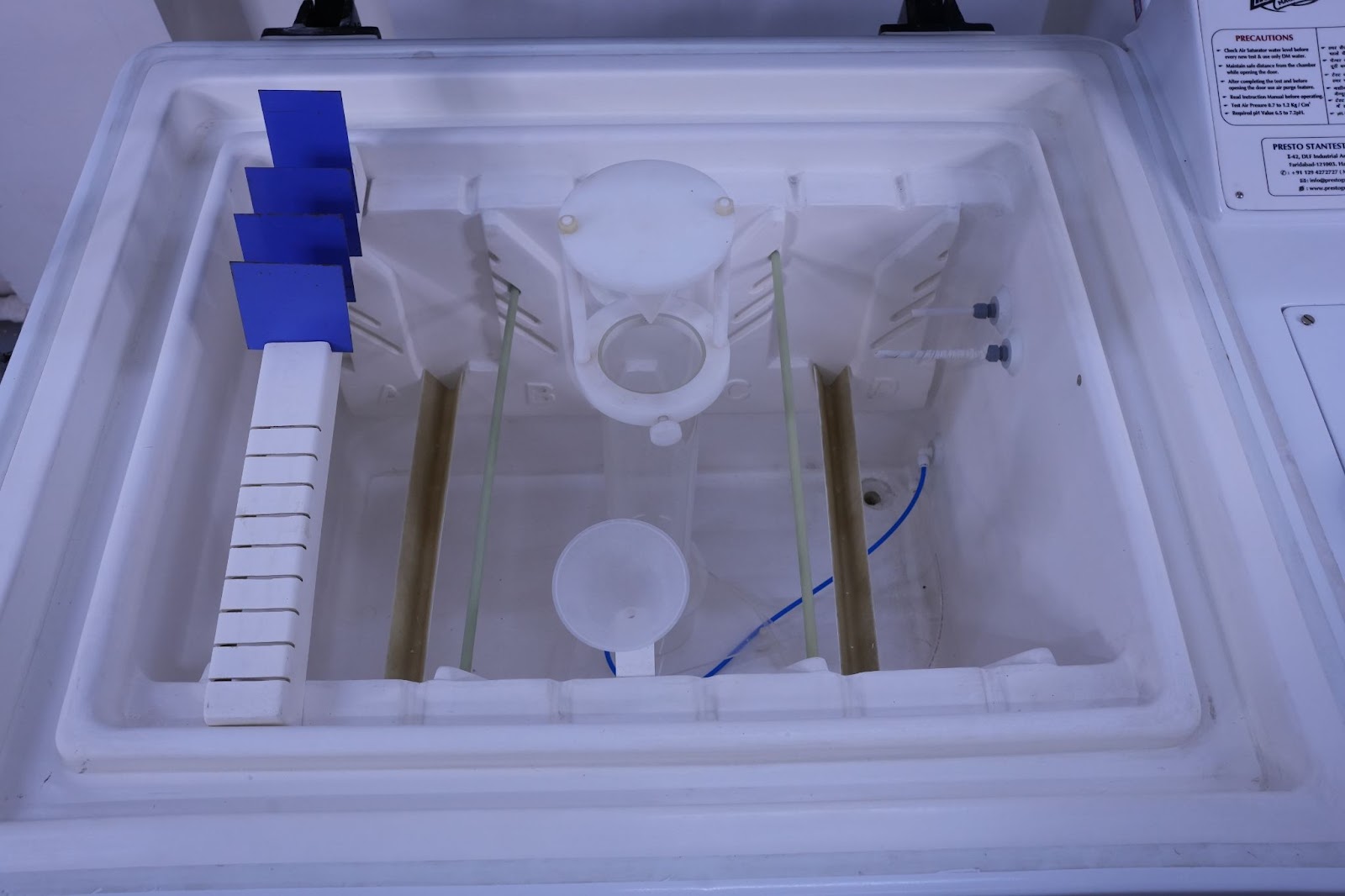

The samples are placed in the salt spray corrosion test chamber at an angle ranging from 15 to 30° (degrees) away from vertical. The angle permits optimum surface area exposure of the test sample to the fog that will settle, but also keeps the condensing saltwater droplets from pooling on the surface of the test sample, which would hinder test outcomes.

Step 3: Test Duration/ Exposures

The test is started and continued for a specified time. The time can vary from 24 hours for general decorative coatings to more than 1,000 hours for high-performance vehicle and defence finishes. The duration is defined in the applicable salt spray test standard or as required by the customer's specifications.

Case Study: The Fastener Fix

A maker of heavy equipment had a problem with corrosion on their carbon steel fasteners in construction vehicles. Their initial zinc plating last only 96 hours in the salt spray test. By changing the coating supplier and using a zinc-nickel alloy plating system, the engineers validated the new solution using the salt spray test chamber. The fasteners now passed 1,000 hours routinely without red rust and demonstrated the Expertise, Authoritativeness, and Trustworthiness associated with long product warranties.

This quality commitment implies that although the initial salt spray test machine price in India or elsewhere may appear high, it pays dividends countless times by avoiding costly field failures and safeguarding brand reputation.

Final Verdict: Trust in Salt Spray Testing for Proven Durability

Salt spray testing is still the reference accelerated method for corrosion resistance testing in every major industry—automotive and aerospace, to marine and construction. Knowledge of the vigorous salt spray testing method and precision in salt spray testing chamber operation ensures product quality and durability.

Are you looking to confirm the corrosion resistance of your latest product line or investigate novel cyclic corrosion testing? Do not risk the quality of your products again, contact a qualified testing laboratory or appropriate test equipment provider today to discuss what standard might fit your situation. We can help assist in the process so that you can be confident that your products can withstand the extreme conditions intended.
