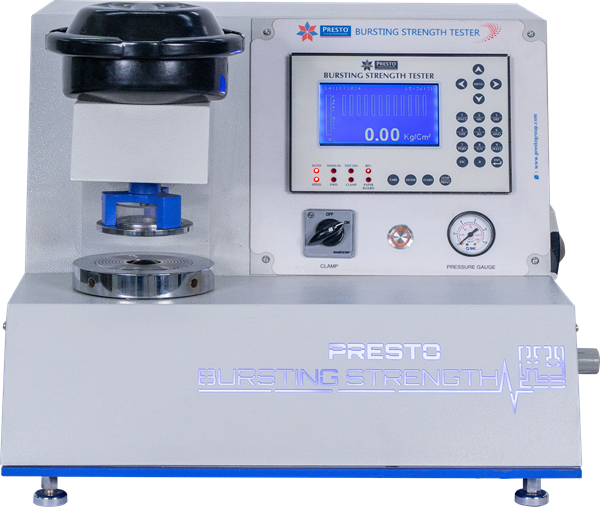

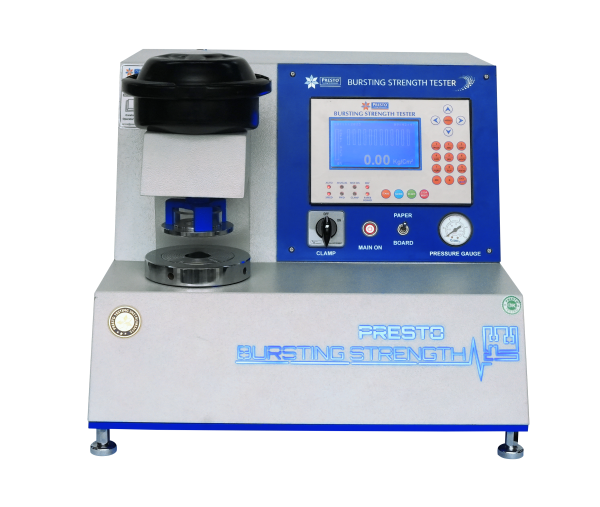

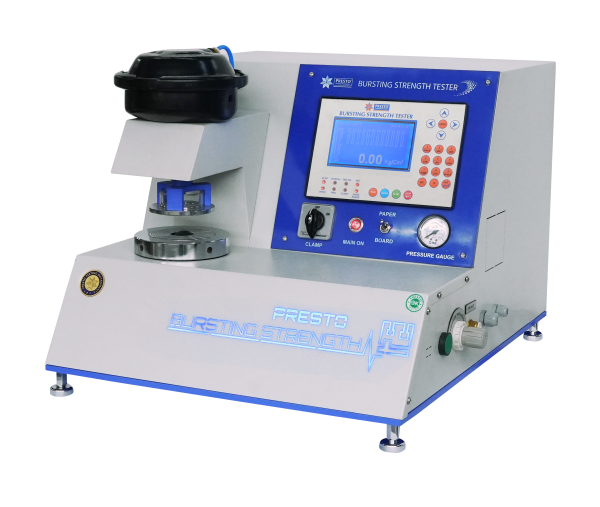

Bursting Strength Tester - Digital Pneumatic Burst Genie 4.0 is provided with digital display and pneumatic clamping system for determination of bursting strength of paper, paper-board, solid fiber board and corrugated board and boxes. The equipment is widely used to get the fast and accurate test results, by use of a single instrument.
The Electronic Bursting Strength Tester provides rapid test sequence through coordinated automatic controls for clamping and testing cycles.
An electronic pressure transducer provides a high level of accuracy and excellent reproducibility of test results.
The digital display is built on a state-of-the-art robust circuitry platform to ensure repeated performance after years.
Digital Strength Digital Pneumatic Burst Genie 4.0 is a consistent tool to indicate the Strength and performance of material like Rexene, leather, paper boards, paper, uneven boards and boxes , solid fiber boards, Foils, sheets, etc. PRESTO Bursting Strength Tester is manufactured under various Test Standards ASTM D 3786-01, ASTM D 3786 – 80A, ISO 1060 PART-1 1987.
Available in Various other models like Computerized cum digital model and Digital model with printer facility.
•Single Push Button Operation
•Auto Sample Locking under selectable pressure range
•Wide 5-Inch Liquid Crystal Display (LCD) enhances the Bursting Strength Tester by offering clearer visibility, easier data interpretation, and real-time monitoring
•Allows users to input and manage detailed information for multiple specimen profiles
•Display show 12 sample test bar graphs
•Highly accurate test results under multidirectional Pneumatic Force
•Dual Mode of Operation - Paper and Board Mode
•Grooved structure of Test Specimen Holder to avoid slippage and intact holding of specimen under test
•Automatic peak value detection
•Auto calculation for BF, Average value and counts of Pass samples
•Dual Hand clamping mechanism for Enhanced Safety against pneumatic cylinder
•Pass/Fail Criteria Customization for clear indication of PASS/FAIL.
•inbuilt calibration feature ensures that the testing machine maintains accurate readings for burst strength in both modes
Bursting strength is the force required to burst or rupture the material under testing. Bursting strength of test specimen is expressed in terms of Kg/cm*. It is measured by giving hydraulic pressure through a rubber diaphragm on the test specimen
|
Capacity |
40 kg/cm* |
|
Display |
5 Inch LCD |
|
Specimen Clamping |
Pneumatic |
|
Accuracy |
± 1% within 10% to 90% of entire range as per IS : 1828 with master gauge |
|
Least Count/Resolution (Paper mode) |
0.01 Kg/cm2 |
|
Least Count/Resolution (Board mode) |
0.1 Kg/cm2 |
|
Pressure Sensor |
Pressure Transducer |
|
Power |
220V, Single phase, 50 Hz |
|
Test fluid |
Glycerin about 98% purified (lab grade) |
|
Rate of fluid displacement |
95 cc/minute |
|
Motor |
1/4 HP, Single Phase, 1440 rpm |
|
Test Range |
0.5 Kg / cm2 to 38 Kg / cm2 |
|
Multiple test units |
Kg/cm2, MPA (Board) , KPA (Paper), PSI and Bar |
|
Operation mode |
Paper and Board |
|
Average value display |
Yes |
|
PASS/FAIL criteria |
Yes , Minimum and maximum test values can be entered for every test |
|
|
|
|
Display |
A maximum of 12 samples results can be seen on display |
|
Maintenance kit |
Yes, included |
|
Safety Switch |
Yes |
|
Material |
Mild Steel |
|
Finish |
Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish |
|
Dimensions |
500 x 600 x 443 mm |
|
Sample Clamp Pressure |
2 - 5 Bar (3 to 4 CFM) |
Air compressor not a part of supply
• Digital and Pneumatic computerized models also available (with or without printer facility)
For BF Auto calculation, User need to enter GSM value .There after bursting factor and burst index can be calculated by the user.
• 100 Ml Glycerin bottle 1no.
• Rubber Diaphragm pack of 2 nos.
• Calibrated Aluminum foil pack of 4 nos.
• Screw Driver 1 no.
• Glycerin bowl opening wrench 1 no.
