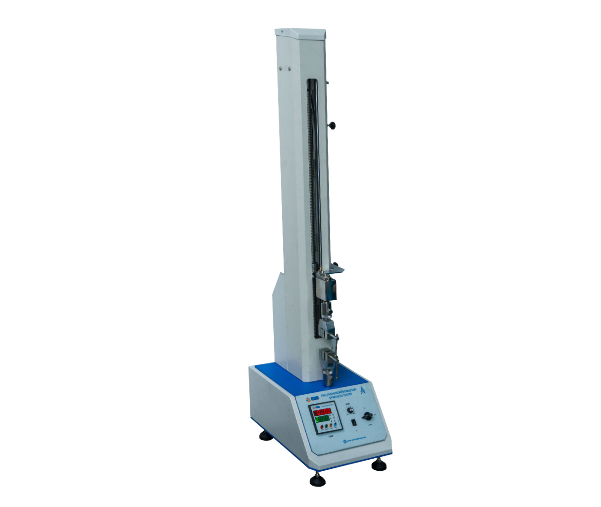

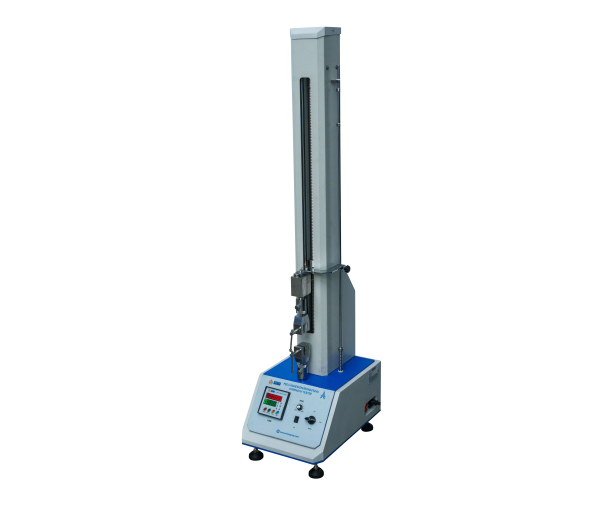

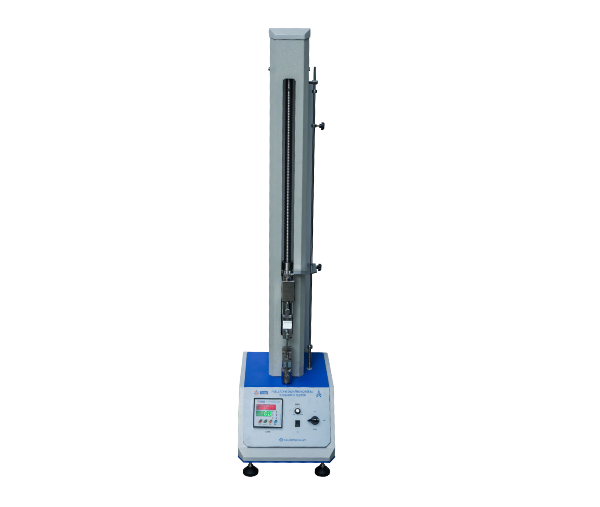

Medical Cannula Pull-Out Tester

This tester measures the axial force needed to pull a cannula away from its hub. It helps the labs to study bonding strength, joint stability, and overall safety of hypodermic needles, IV cannulae, syringe needles, pen needles, and similar medical sharps.

Video

Precise Evaluation of Needle-Hub Bond Strength

A high-accuracy load cell and a steady motorized drive create smooth tensile loading. Special clamps hold the cannula and hub firmly. The tester records the exact force at the moment of separation. It follows major global testing standards and suits production units, lab teams, research setups, and regulatory checks.

*Parametres*	*Specification*
Load Cell Capacity	20 kgf
Accuracy	± 0.5 percent of full scale
Least Count	10 g
Test Range	10 to 300 mm per min
Crosshead Travel	300 mm
Test Mode	Axial pull-out test
Fixtures Display	Cannula clamp and hub holding fixture Digital LED
Power	220 V AC, single phase
Frame of machine	Powder-coated MS frame

High-grade load cell for fine pull-out readings

Motorized movement for smooth tensile loading.
Dedicated fixtures for a steady, slip-free grip.
Peak hold, tare, and auto zero.
Microprocessor-based control.
Overload safety and emergency stop.
Live reading of pull-out and peak force.
Low-noise drive for calm lab use.
Sturdy frame made for medical QC work.

Optional Add-Ons

Computer software package
Variable speed drive from 10 to 300 mm per min.
Custom fixtures for pen needles, insulin needles, IV cannulae, and catheter hubs.
ISO 17025 calibration kit
Extended travel for long samples

Computerized Version(Optional)
