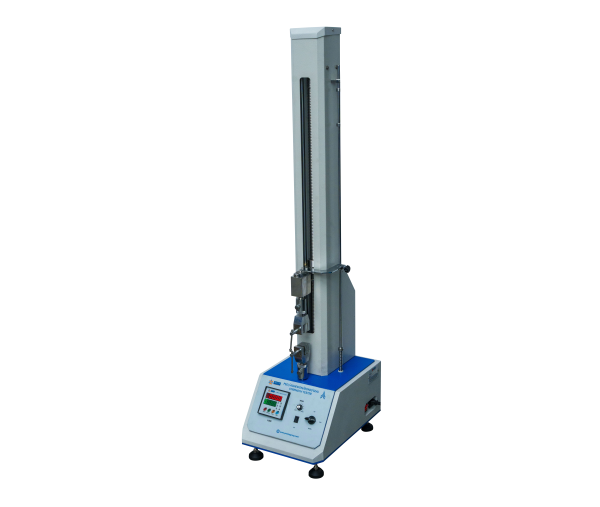

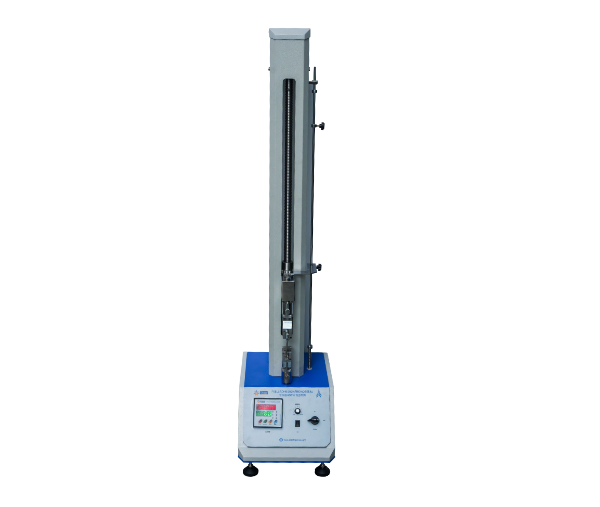

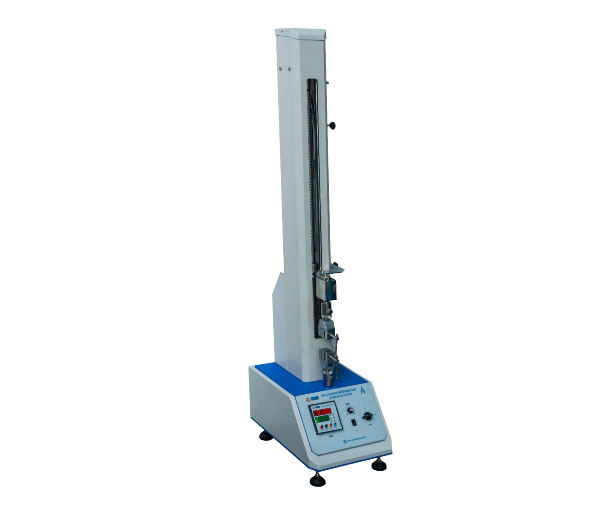

Medical Syringe Push and Pull-Out Tester
This tester is a precision-built unit created to study the mechanical behaviour and handling performance of medical syringes. It is designed to measure two main forces:
1.Syringe Push Force: This records the axial load needed to move the plunger along the barrel while releasing fluid through the needle.
2.Syringe Pull-Out Force: This records the axial load required to separate the plunger from the barrel or to detach the needle or luer connection during a tensile load.
This tester helps the labs to check the smooth movement of plungers. It shows how steady the flow feels during use. It also verifies if the parts stay fixed tightly and the needle–luer joint remains under force strongly. It works with syringes from 1 mL to 60 mL. It also fits insulin, prefilled, and common disposable syringes.
A high-accuracy load cell, controlled test speed, and adjustable gripping fixtures create steady readings for each trial. The computerised option supports plotted graphs, stored records, batch logs, and quick Pass or Fail checks. This design suits medical-device lines, inspection units, and research teams.
Applications
- Plunger Push Force Testing
- Plunger Pull-Out Strength Check
- Luer Lock or Luer cone Pull-out Force Test
- Needle and Syringe Joint Strength Test
- Smooth Plunger Travel Observation
- Material Study for R&D
- Manufacturing Validation and Regulatory Checks
Standards Followed
- ISO 7886-1 and ISO 7886-2 for sterile hypodermic syringes
- ISO 11040 for prefilled syringes where applicable
- ISO 594 and ISO 80369 for luer fittings
|
Parameter |
Specification |
|
Load Cell Limit |
|
|
Accuracy |
±0.5 percent of scale |
|
Least Count |
10 g |
|
Speed Test |
10 to 300 mm per min |
|
Stroke Range |
300 mm |
|
Modes |
Push mode and pull-out mode |
|
Fixtures |
Barrel holder, plunger grip, luer grip |
|
Display |
Digital LED |
|
Construction |
Rigid powder-coated MS frame |
- Dedicated grips for barrels, plungers, and luer parts
- High-grade load cell for finely measured push and pull readings.
- Motor-driven movement for steady loading
- Live reading of push strength, pull-off strength, and peak values
- Zero, tare, and peak hold options.
- Microprocessor-based control.
- Over-travel and overload safety.
- Low-noise drive with precision screw motion.
- Works with disposable, luer slip, luer lock, insulin, and prefilled syringes.
Optional Add-Ons
- Computer software package
- Adjustable speed drive from 10 to 300 mm per min
- Special grips for dental, veterinary, and prefilled designs
- ISO 17025 traceable calibration kit
- Higher capacity load cells for special syringe formats
Computerized Version(optional)
- Live graph for force versus time or displacement
- Limit-based Pass or Fail check
- Export to PDF or Excel
- Overlay of multiple sample graphs
- Email report feature
