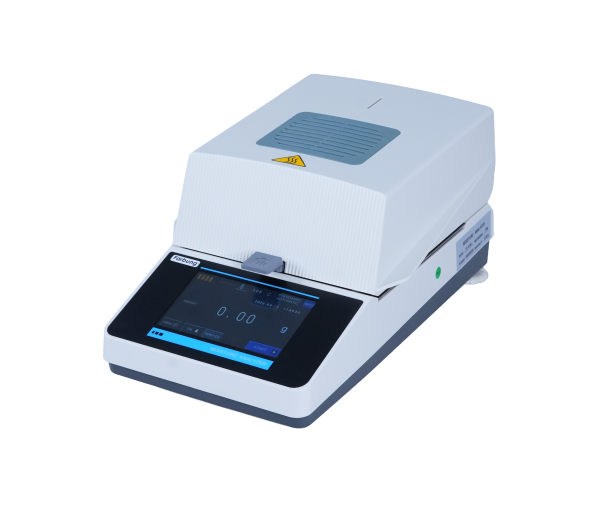

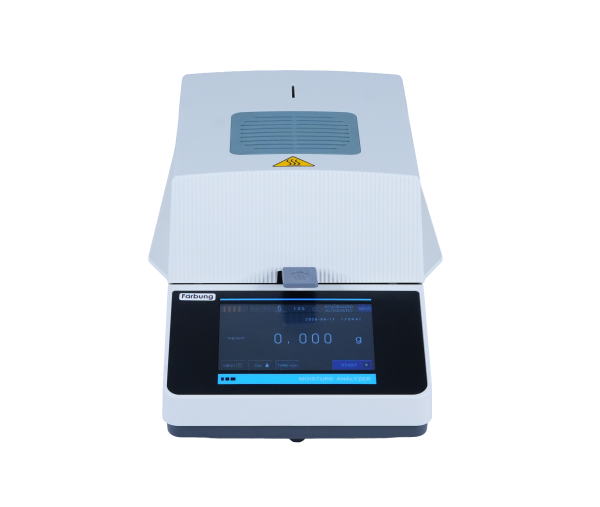

Moisture Analyzer

quick info

Moisture Analyzer is a consistent tool useful for checking the moisture content of paper, corrugated sheets, textile materials or any substance quickly and effectively. Moisture content is determined by the principle of thermogravimetric.

Model

PMA -45

Brochure

DOWNLOAD

get a quote  →

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • REVIEWS

OVERVIEW

Moisture Analyzer is a consistent tool useful for checking the moisture content of paper, corrugated sheets, textile materials or any substance quickly and effectively. Moisture content is determined by the principle of thermogravimetric.

The moisture analyzer incorporates state- of- the art halogen heating with precision weighing technology to quickly, effectively and accurately measure moisture content of the specimen under analysis. It is ideal for the pharmaceutical, chemical and research industries for consistent accuracy during testing.

Moisture Analyzer PMA -45 is ideal for Lab, Production & QC. The round Halogen Lamp with ramped voltage increase enables rapid uniform heating of sample to 200°C. The Round lamp ensures better accuracy by heating the sample evenly and controlled voltage increase to lamp greatly enhances bulb life.

INDUSTRY

Cable & Wires Testing Equipments

Compound (Resin) Testing Equipments

Flexible Packaging Testing Equipments

Food and Beverages Testing Equipments

Leather Testing Instruments

Plastic Rope Testing Equipments

SPECIFICATIONS

    • Repeatability (Std. Dev.): 0.05% (3 gm sample), 0.015% (10 gm sample)
    • Moisture Range: 0.01% to 100% (0.01% to 1000% for regain mode)
    • Heat source: Halogen Lamps
    • Temperature settings: 50°C to 200°C in 1°C increments.
    • Display: LCD (Digital)
    • Pan Size: 90 mm Diameter
    • Drying Programs: Standard, Fast, ramp, Step
    • Switch Off criteria: Timed, Auto(30, 60 90 seconds, auto free), Manual
    • Output: Moisture(%), Dry Content(%), Weight (gm), Weight (custom), regain %
    • Readings: Up to 50 accumulated readings



FEATURES

    • Versatile & rugged for continuous operations in food and beverage industries, environmental, quality control and many other applications.
    • Some selectable drying shutoff parameters & others are selectable users drying profiles that provide greater test flexibility for end users, thus, saving time and costs.
    • Integrated test database that stores 50 drying procedures including result storage with statistical analysis.
    • Powerful software that eliminates needs to maintain as well as process data outside of moisture balance.
    • Fully programmable Digital Model
    • Ergonomic operating controls
    • Thermogravimetric based technology for checking moisture content
    • Data output on LCD digital display
    • • Display with all test data during dry process
    • Built-in RS 232 communication interface
    • Faster rate of heating with halogen dryer
    • Easy storage and retrieval of test data
    • User-Friendly menu driven system for selecting test parameters and performing the test
    • Inbuilt Calibration facility
    • Selectable in different languages – English, Spanish, French, German, Italian
    • Selectable Drying profile – Fast, Ramp, Step
    • Statistical Data


These are mainly used in diverse applications in the following sectors such as Pharmaceutical, Plastic, Food, Organics, Rubber, Chemical and Research industries & 1000s of Applications.

VIDEO

REVIEWS


“

Determining the moisture content in a polymer is a very crucial task and must be done accurately for best quality of the products. As a manufacturer of plastic consumer goods, I was seeking a reliable instrument to calculate the moisture content in my products. The Moisture analyzer by Presto has offered the best options to analyze the Moisture content in my materials are products with great accuracy and a simple operating procedure.

— Rajnish Yadav
“

This is the perfect instrument for my lab. It can easily test the polymer granules in this instrument. No more weighing and drying. The design is hassle free and results can be relied.

— Prateek Singh
“

My company perform moisture test on paper, fibreboard and carton sheets using presto equipment. Have positively added to our quality improvement.

— Sumeet Bhardwaj
