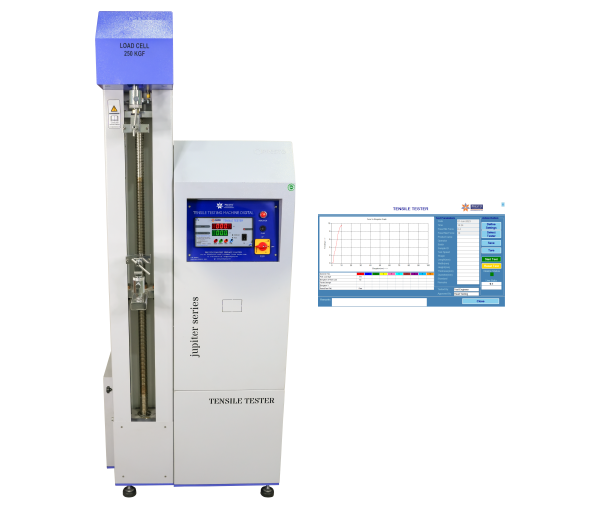

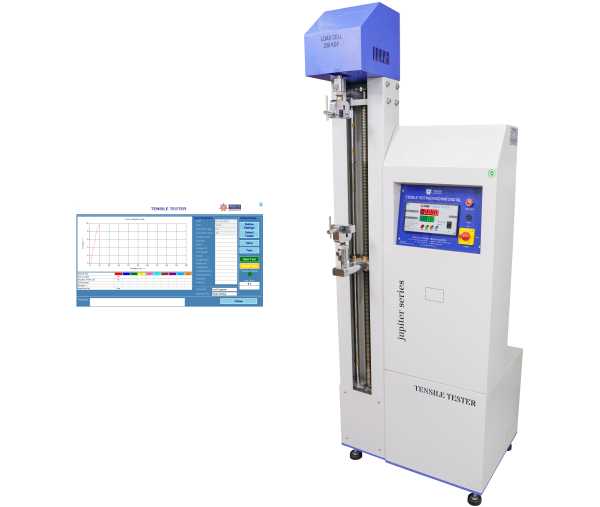

Suture Tensile Tester
Suture Tensile Tester is a high-precision lab machine made for checking the strength and performance of surgical sutures. It works with both absorbable and non-absorbable threads used in medical procedures.
Presto Group is a known name in suture strength testing machines in India. You can contact us for the best price or request a quick quote.
Suture Tensile Tester gives steady and repeatable results needed in medical suture testing. It helps users check breaking load, stretch at break, and needle–suture joint strength. It can also check pouch seal strength for sterile packs when needed.
The Suture Thread Grip Set and the Suture Needle Grip hold thin sutures and delicate swaged needles without slipping. A high-grade load cell works with a smooth drive system to apply force at a controlled speed. The computerized model shows live graphs, records data, and creates reports. It suits labs, development teams, and medical device production units.
|
Load Cell Capacity: |
20 kgf |
|
Accuracy: |
±0.5 percent of full scale |
|
Test Speed: |
50 mm per minute standard, 10 to 300 mm per minute optional |
|
Travel Length: |
600 mm |
|
Resolution: |
0.002 kgf |
|
Display: |
Digital LED or computer-based touch screen |
|
Grips: |
Suture Thread Grip Set and Suture Needle Grip |
|
Units: |
N or kgf |
|
Power Supply: |
220 V, 50 Hz, single phase |
|
Communication: |
RS232 or USB |
- High-grade load cell for tiny force changes
- Suture Thread Grip Set for thin and fine threads
- Suture Needle Grip for safe needle holding
- Smooth screw-drive motion with a geared motor
- Digital display for breaking load, elongation, and detachment
- Peak Hold, Tare, and Auto Zero
- Built-in safety to avoid overload
- Strong steel body with powder coating
- Low-noise motor
- Fixture for pouch seal checks when needed
- Computerized Software (Optional)
- Live force–elongation graph
- Auto calculation of breaking load and stretch percent
- Needle pull-out force record
- Batch mode for production lots
- PDF and Excel test reports
- Set-limit Pass or Fail results
- Safe data storage and export
- Email report option
- PC link through RS232 or USB
A: You can choose a computerized model. It shows live graphs, stores data, and creates reports for easy lab use.
Q: Can I run pouch seal strength tests on this machine?
A: Yes. A special fixture can be added when you need to check seal strength in sterile packs.
Q: Does it help with needle–suture joint checks?
A: Yes. It measures the force needed to pull the needle away from the thread, which is vital for safe handling.
Q: Can it test both absorbable and non-absorbable sutures?
A: Yes. It works well with both types used in medical procedures.
Q: What does a Suture Tensile Tester check?
A: It checks how strong a suture is, how much it stretches before it snaps, and how firmly the needle is attached to the thread.
