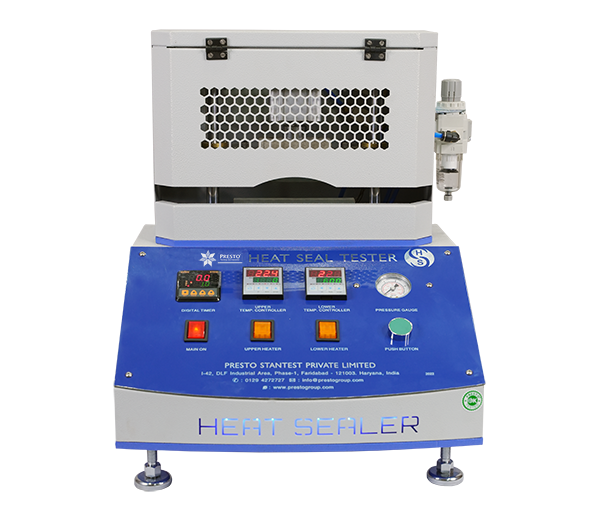

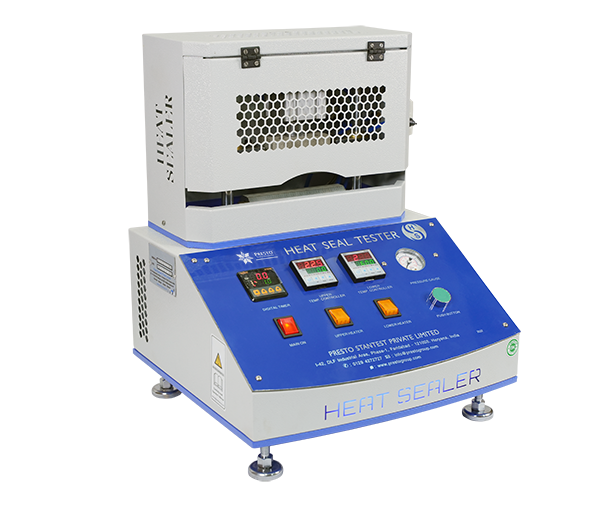

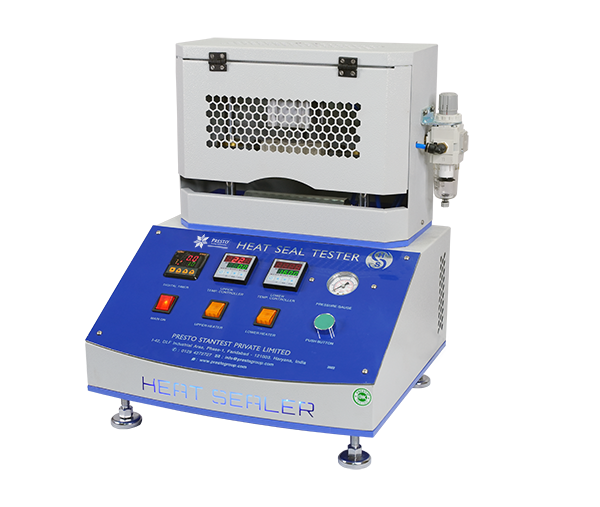

Heat sealing machine is used for testing the quality of heat seal during the packaging process. The machine is specially designed to deliver real sealing procedures so that the behaviour of the seal could be checked during processing. You can access Laboratory Heat Sealer in Pune, Maharashtra with all the advanced features.
Model PLHS-22 Prima
Sealing process in packaging department can be an issue of quality inspection. The heat sealing process includes heating of the sealing agent and binding it together. The heat sealer machine generates the exact amount of heat as per specified conditions and seals the two ends of the package using distinct mode if jaws which include plain, diamond and straight line. Then it applies heat so that it gets the bind and then the jaws are removed. Instantly after that user can watch how much resistance the seal if providing on applying the peeling process. The machine is controlled using digital mode. It is equipped with a digital display screen which is fitted with a bright LED light which helps the user in clearing the vision at low light conditions. The heat is controlled by using a microprocessor-based PID controller. A pressure gauge is fitted on the machine which can record the increasing pressure amount applied to the test process. You can get Laboratory Heat Sealer in Pune with all the features available.
| Equipment Range | Ambient to 250ºC |
| Sealing T emperature Working range | Ambient to 230ºC |
| Accuracy | ± 1ºC |
| Least Count/Resolution | 0.1ºC |
| Power | 220V , Single phase, 50 Hz |
| Sealing size** | 150x 15 mm |
| T emperature Controller | 4 digit PID |
| Dwell Heat Seal time | 0.1 – 99.9 sec |
| Timer | 4 Digit Digital |
| Heat Sensor | Pt-100, Platinum Resistance Temperature Detector (RTD) |
| Sealing Pressure | 2 - 6 Bar |
| T emperature Controller | PID |
| Timer | Digital Preset type |
| Heat Source | Cartridge Heaters |
| Seal Pattern | Straight line, Plain & Diamond Knurling (select any one pattern) |
| T est Performed | Heat Seal |
| Material | Mild Steel |
| Finish | Powder Coated Havel Gray & Blue Combination Finish and Bright Chrome / Zinc Plating for Corrosion Resistant Finish |
| Dimensions | 625x300x510mm |
- Microprocessor based display for accurate test results
- Highly accurate test results under pneumatic pressure control
- Single Push button operation after setting PID temperature and time
- Strong heating jaws for performing tests
- No slippage in case specimen is placed uniformly without any loops
- Bright LED display for temperature and timer
- PID temperature controller for highest level of controls and repeatability
- Digital Preset timer
- EN 31 hard and temper sealing jaw material
- Guide rod mechanism for efficient control of sealing
- Independent adjustment of temperature for upper & lower jaws
