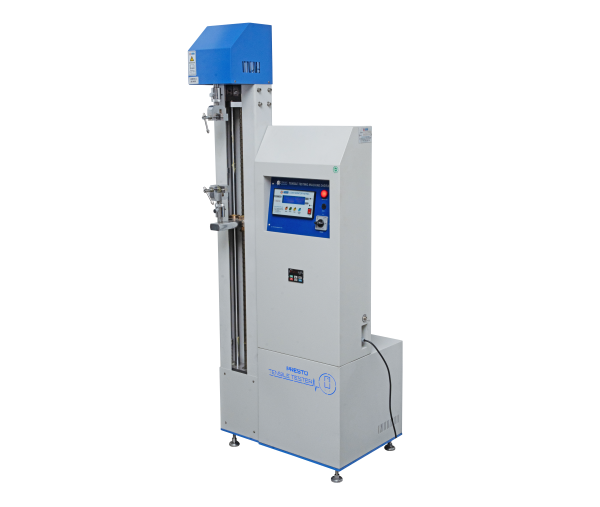

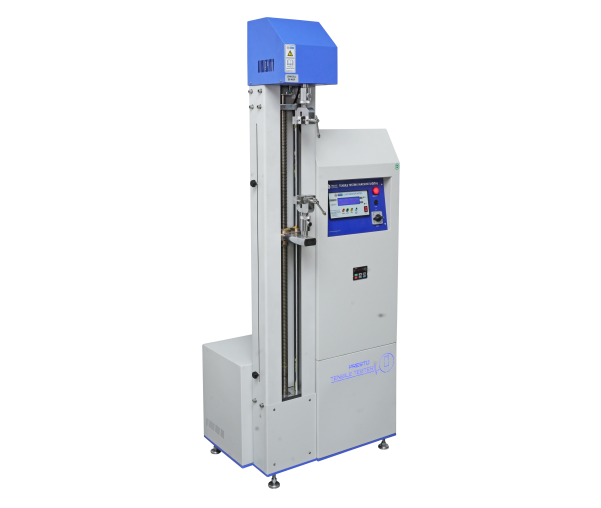

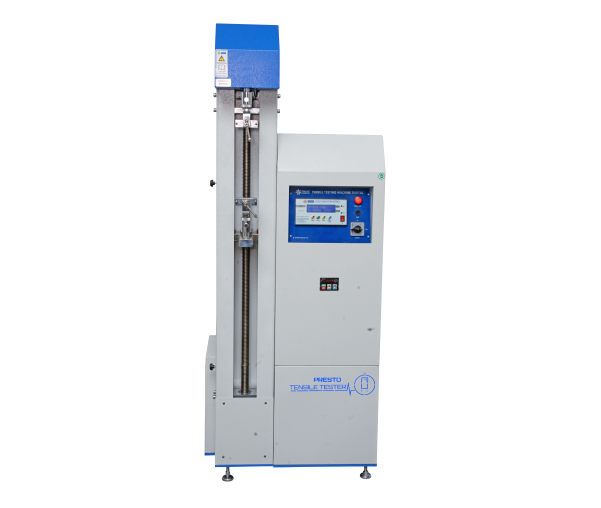

Tensile tester is a mechanical testing machine which estimates the physical characteristics of the material under elevating tensile stress. The machine is suitable for testing rubber, or plastic material. It is a single column, a digital model which is widely used in Polymer industries. Now you can have Tensile Testing Machine in Pune, Maharashtra along with other major cities of India.
Model TTM-S (as per capacity)
Plastic-based material is often used to manufacture important plastic products such as automotive parts or aerospace components, pharma caps etc. during its manufacturing process, they are stretched to form a particular shape. This stretched form is always under constant tensile stress. With time these stress increases, and can lead to marks, cracks, and even rupture of the product. To asses that how much tensile stress a product can take on it and sustain, they are tested using the tensile tester. The machine is designed as per international test standards including ASTM D412, ASTM D429-73, ASTM D624, ATM D638-01, ASTM D76, IS 13360-5-7, and IS 3400(Part1-1987). Its functions are based upon a microprocessor program. The technology very precisely records minute changes and records to display on the screen in digital format. It is also equipped with safety limit switches which are used to limit the travelling length, the specimen will then only be pulled till a fixed distance and not beyond that. Interested clients can now have Tensile Testing Machine in Pune with all type of technical support.
Tensile Strength Tester: Technical Specifications
- Motor: ¼ HP Single Phase 220 / 110 V AC Supply
- Speed: 100 mm/min and 200 mm/min (Changeable through Belt & Pulley mechanism)
- Display: Digital (LCD)
- Accuracy: ± 2% at Full Load (with master load)
- Grip to Grip separation: Min 25mm and Max. 700mm
Tensile Strength Tester: Essential Features
- Advanced load sensor sensing through advanced electronics.
- Highly sensitive load sensor with linearity feature and repeatability
- Cross head travel length: 750mm grip to grip
- Single column rugged structure
- Safety limit switches for over travel safety
- Hardened lead screws for frictionless movement
- Load cell calibrated by NPL approved proving ring/dynamometers
- High accurate micro-controller based system controls
- Peak Hold facility available
- Bright LED display
- Immediate analysis of results after test with complete accuracy & precision
- Feather touch controls
Optional Features:
- Specially designed gripper jaws for holding fragile samples.
- Other capacity available chart as per requirement.
- Wintest one way communication software.
- Graph of Force vs Elongation
- Easy Data management. User can create product Identification, Sample ID, Shape of Specimen, Company Name, operator details etc.
- Auto cut off facility.
- AC Speed drive as an optional accessory (VFD)
