How is a Compression Testing Machine Different from a Tensile Testing Machine

In material testing, engineers, manufacturers and scientists often depend on precision instruments to test the strength and toughness of raw materials and finished goods. The two most basic machines in this field are the Compression Testing Machine (CTM) and the Tensile Testing Machine (UTM). While both are considered as mechanical testing instruments, there is a vast difference in the working principle, application and the result of the testing.

This blog covers the distinction between a Compression Testing Machine and a Tensile Testing Machine, their uses and how they help in maintaining the quality and safety of materials. We’ll also weave in related keywords such as material testing, mechanical properties, strength testing, universal testing machine, stress testing, deformation analysis, and quality control to give you a well-rounded view.

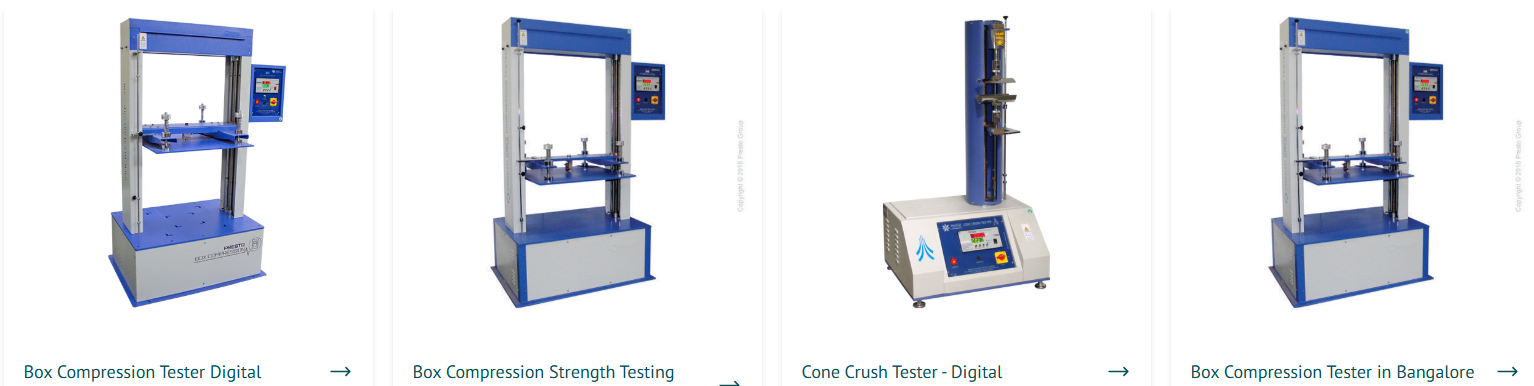

What is a Compression Testing Machine (CTM)?

A Compression Testing Machine, commonly abbreviated as CTM machine, is designed to evaluate the compressive strength of a material. It measures the resistance of a sample when subjected to a gradually increasing compressive load until the material deforms or fractures.

• Working Principle: The CTM applies axial compressive force on a specimen, usually placed between two hardened steel plates or platens. The load is applied hydraulically or mechanically until the sample fails.
• Measured Property: Compressive strength, crushing strength, deformation behavior, and failure point.
• Commonly Tested Materials: Concrete cubes, cement, bricks, stones, corrugated boxes, cartons, foam, wood, and certain plastic components.
• Key Features of Modern CTM:
  • Digital display for load measurement.
  • Automatic load control systems.
  • High accuracy sensors and load cells.
  • Rigid steel frame construction for stability.

In industries such as construction materials, a digital compression testing machine is indispensable to verify whether cement blocks, concrete, or paving stones can withstand the compressive loads they will face during service.

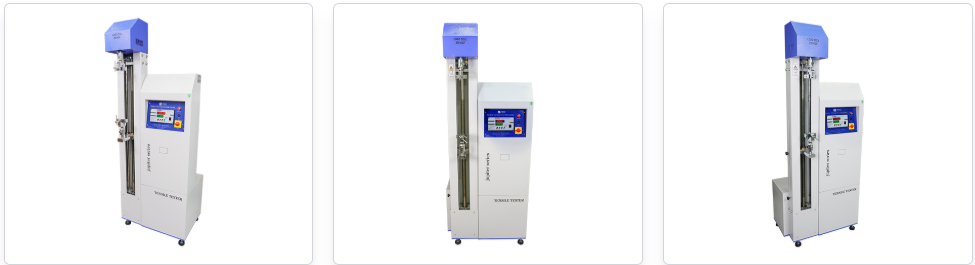

What is a Tensile Testing Machine?

A Tensile Testing Machine, often referred to as a Universal Testing Machine (UTM), is used to determine the tensile strength and elongation properties of materials. It works by pulling a specimen in opposite directions until it fractures.

• Working Principle: The sample is clamped at both ends, and a uniaxial tensile force is applied. The machine continuously records elongation and load until the specimen breaks.
• Measured Property: Tensile strength, yield strength, elongation percentage, modulus of elasticity, and fracture point.
• Commonly Tested Materials: Metals, alloys, plastics, rubbers, textiles, wires, films, polymers, and composite materials.
• Key Features of Modern UTMs:
  • High-precision load cells and extensometers.
  • Servo-controlled drive systems.
  • Wide testing speed range.
  • Graphical data output and stress–strain curve plotting.

In industries like automotive, aerospace, and packaging films, a tensile testing machine ensures that raw materials and finished goods can endure pulling, stretching, or tension during actual usage.

Core Differences Between Compression Testing and Tensile Testing Machines

Although both machines belong to the same family of material testing machines, their differences can be explained under the following parameters:

Aspect	Compression Testing Machine (CTM)	Tensile Testing Machine (UTM)
Primary Purpose	Evaluates compressive strength and crushing resistance.	Evaluates tensile strength and elongation properties.
Mode of Force Application	Axial compressive load (pushing force).	Axial tensile load (pulling force).
Specimen Type	Cubes, cylinders, blocks, cartons, rigid packaging, foams.	Dumbbell-shaped samples, wires, films, sheets, textiles.
Failure Behavior Studied	Crushing, buckling, compressive deformation.	Necking, elongation, tensile fracture.
Load Application System	Hydraulic or mechanical platens.	Screw-driven, servo-hydraulic grips or fixtures.
Industrial Applications	Construction, packaging, concrete testing, corrugated boxes.	Automotive, aerospace, metals, polymers, textiles.
Typical Output	Compressive strength (N/mm2), crushing value.	Stress–strain curve, tensile strength, elongation %

Why Industries Need Both Machines

Most manufacturing units employ both compression strength testers and tensile strength testers as part of a complete quality assurance system. This is because a product may face both compressive loads and tensile stresses during its lifecycle.

For example:

• Corrugated boxes need to pass a compression test to verify stacking strength during transportation, but the liners and fluting paper must also pass tensile testing to confirm fiber strength.
• Automotive components such as rubber seals must withstand tensile elongation while also resisting compressive deformation.
• Metals and alloys in bridges and aircraft are exposed to both compressive and tensile forces under load conditions.

Advanced Material Testing with Digital Machines

The transition from analog to digital compression testing machines and digital tensile testing machines has revolutionized industrial quality control. Modern equipment now integrates:

• Microprocessor-based controllers for accuracy.
• Data storage and computer connectivity for analysis.
• Graphical representation of stress–strain behavior.
• Programmable test cycles for standard compliance.

This ensures compliance with global testing standards such as ASTM, ISO, BIS, and DIN.

Applications Across Industries

1. Construction and Civil Engineering:

   • CTM machines test concrete cubes, cement blocks, and pavement stones.
   • UTMs verify the tensile strength of reinforcing steel bars and structural metals.

2. Packaging Industry:

   • Compression testers evaluate carton stacking strength.
   • Tensile testers measure the elongation of packaging films, tapes, and laminates.

3. Metals and Alloys:

   • Tensile testing machines measure ductility, toughness, and yield strength.
   • Compression machines test buckling behavior of metal components.

4. Polymers and Plastics:

   • UTMs are widely used for tensile, peel, and tear testing of films and molded parts.
   • CTMs test compressive behavior of foams, insulation, and rigid plastics.

5. Automotive & Aerospace:

   • Tensile testing ensures fatigue resistance of metals and composites.
   • Compression testing validates crash resistance of structural parts.

Concluding Thoughts

Both Compression Testing Machines and Tensile Testing Machines are essential for testing the dependability of materials in various industries. The CTM machine is designed to be used for compressive behavior (crushing, buckling), whereas the tensile testing machine (UTM) is used for stretching, pulling and elongation.

It is not a question of having one instrument or the other, but both are necessary for any company doing QC, R&D or product certification. They offer different aspects of the same story of how a material or product will react to real world stresses, and together they ensure safety, compliance and performance in the final application.
