How UV Chambers Help Manufacturers Beat Sunlight and Weather Challenges

In today’s fast-moving manufacturing world, making sure products last long and stay tough is super important. Items like plastics, coatings, textiles, or car parts that face the outdoors deal with harsh stuff—sunlight, rain, and temp swings. That’s where a UV chamber steps in, also called UV light test chambers, UV weathering chambers, or UV accelerated weathering testers. These machines mimic tough outdoor conditions to check how materials hold up over time. At Presto Group, we’re a top name in lab testing gear, and our UV chambers are built to meet all kinds of industry needs. In this blog, we’ll dive into what a UV chamber is, how it works, its uses, and why Presto’s solutions shine.

What is a UV Chamber?

A UV chamber is a special machine that copies the damaging effects of sunlight, rain, and dew on materials. By hitting test samples with controlled UV light, moisture, and heat, these chambers speed up aging, showing years of outdoor wear in just days or weeks. This helps companies figure out how their products will perform long-term, spotting issues like fading, cracking, or peeling before they hit shelves.

Our UV Light Accelerated Weathering Tester at Presto uses fluorescent UV lamps to mimic the short-wave UV part of sunlight, which causes most material damage. The UV Weathering Chamber switches between UV light, condensation, and water sprays to act like real-world weather, giving a full test of durability.

Key Features of UV Chambers

• UVA and UVB Lamps: These give off light at 340 nm (UVA) or 313 nm (UVB) to match sunlight’s harmful effects.
• Temperature Control: Keeps temps steady, usually from room temp +25°C to 100°C (Black Panel Temperature).
• Humidity and Water Spray: Acts like dew or rain to test how materials handle wet conditions.
• HMI Touchscreen Interface: Makes it easy to set test settings like time, temp, and spray cycles.
• Meets Standards: Built to follow global rules like ISO 4892-3, ASTM D4329, ASTM D4587, and ASTM G-151.

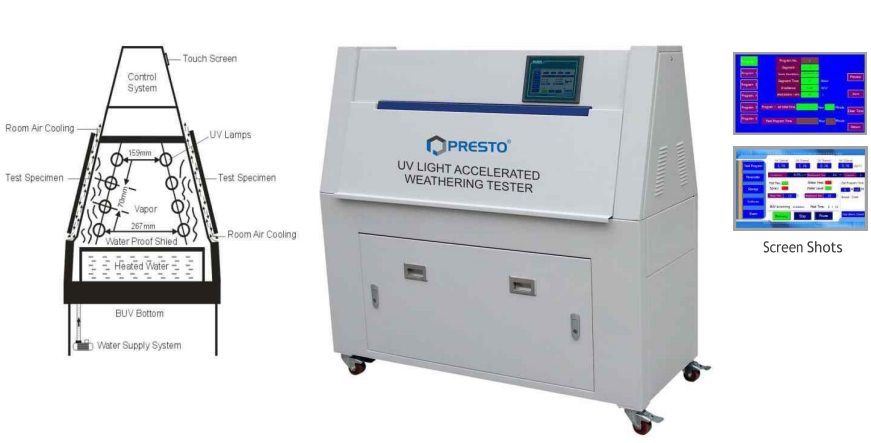

How Does a UV Chamber Work?

Using a UV chamber is pretty simple but works like a charm. Here’s how Presto’s UV Weathering Chamber does its job:

1. Sample Prep: Put test samples—like plastic sheets, coatings, or fabrics—into the chamber’s holders. Presto’s UV chambers can hold 48 pieces of 75×150 mm or 15 pieces of 100×300 mm.
2. Set Test Settings: Use the HMI touchscreen to pick test conditions, like UV time, temp, humidity, and water spray times.
3. UV Exposure: The chamber’s UVA or UVB lamps blast controlled UV light, copying sunlight. UVA (340 nm) is close to natural sunlight, while UVB (313 nm) is tougher for faster tests.
4. Moisture Simulation: The UV chamber switches between UV light and moisture. It heats water for condensation to mimic dew and sprays water to act like rain.
5. Test Done: After the set time, the machine stops automatically, and you check samples for changes like fading or cracking.

This process lets companies test materials fast and fix issues early.

Applications of UV Chambers

UV chambers are a must for industries where products face outdoor conditions. Here’s where they shine:

• Plastics Industry: Checking how plastic stuff like packaging or car parts holds up against UV damage.
• Paints and Coatings: Seeing if paints or coatings on buildings or cars stay bright and stick well.
• Textiles: Testing if outdoor fabrics like awnings or clothes keep their color.
• Automotive: Making sure car parts like bumpers or dashboards don’t crack under sunlight.
• Construction: Testing roofing or sealants to ensure they last in the sun.
• Aerospace: Checking aircraft materials for UV and heat resistance.

By mimicking real-world conditions, UV chambers help companies make products that last longer.

Why Choose Presto’s UV Chambers?

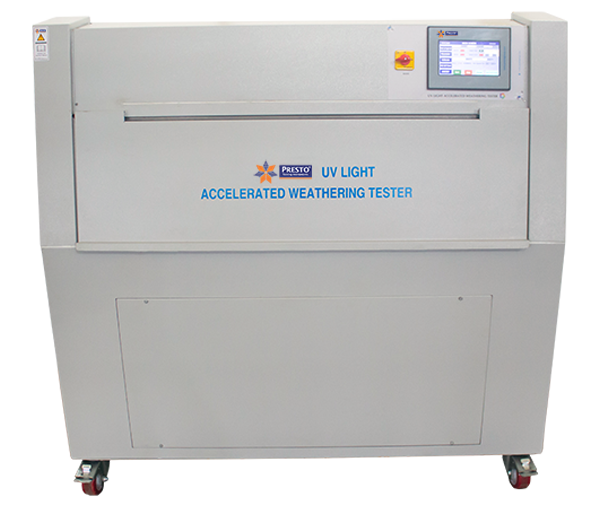

At Presto Group, we’ve been a go-to name in lab testing equipment for over 40 years, known for precision and quality. Our UV Light Accelerated Weathering Tester is packed with features to meet modern manufacturing needs. Here’s why our UV chambers stand out:

1. Top-Notch Tech
Our UV chambers come with a user-friendly HMI touchscreen for easy control of test settings. They use high-quality UVA and UVB lamps (40W each, lasting 2000 hours) for accurate sunlight simulation. The irradiance range of 0.1 W/m² to 1.0 W/m² lets you tweak test conditions.

2. Tough Build
Made with SUS 304 stainless steel, our UV chambers are rust-proof and built to last. They have safety features like alarms for creepage, water issues, overloading, or overheating, keeping things safe and reliable.

3. Meets Global Standards
Presto’s UV chambers follow international standards, including:

• ISO 4892-3:2012: For plastics testing with lab light sources.
• ASTM D4329-13: For fluorescent UV testing of plastics.
• ASTM D4587-11: For UV-condensation testing of paints and coatings.
• ASTM G-151-10: For testing nonmetallic materials in accelerated testers.

This means test results are trusted worldwide.

4. Easy to Use
Our UV chambers have preset timers, adjustable sprays, and a sample rotation speed of 3.7 rpm for even exposure. The automatic setup cuts down on manual work, making tests quick and accurate.

5. Custom Options
Presto can tailor UV chambers to your needs, whether for small labs or big industrial setups.

6. Good Pricing
UV chambers in India cost between 1,20,000-15,50,000 lakhs, depending on specs. Presto offers great prices without cutting corners on quality. For a quote, call +91 9210 903 903 or email info@prestogroup.com.

The Importance of UV Weathering Testing

Testing in a uv weathering test chamber is key for products used outdoors. Sunlight, moisture, and temp changes can mess up materials, causing:

• Color Fading: Paints or fabrics losing their brightness.
• Gloss Loss: Surfaces looking dull.
• Cracking or Peeling: Damage to coatings or plastics.
• Strength Loss: Materials getting weaker.

UV chamber tests catch these problems early, so companies can improve materials or add protective coatings. This boosts product quality, keeps customers happy, and cuts down on returns.

How to Commence a Test with Presto’s UV Chamber

To get solid results, here’s how to run a test with Presto’s UV chamber:

• Prep your test samples and put them in the chamber’s holders.
• Use the HMI touchscreen to set UV time, temp, humidity, and spray cycles.
• Turn on the UVA or UVB lamps and start water spray or condensation as needed.
• Start the test and let the uv accelerated aging chamber run for the set time.
• When done, check samples for changes in look or strength.

This easy process helps manufacturers test materials fast.

Here's the bottom line

UV chambers are vital for making sure materials can handle outdoor conditions. Whether you’re in plastics, automotive, coatings, or textiles, a good uv weathering test chamber is a smart investment. Presto Group offers top-tier UV chambers with cutting-edge tech, tough builds, and global standard compliance. With over 40 years of experience, we help manufacturers make products that last.

Need help? Our team is just a call away.

Want to step up your material testing? Reach out to Presto Group for a free chat with our tech team. Get a quote for our UV Light Accelerated Weathering Tester by calling +91 9210 903 903 or emailing info@prestogroup.com. Check out www.prestogroup.com to see our full range of testing gear and start ensuring your products stand strong.
