What Is a pH Meter and How Does It Work?

Ever been curious about the alkalinity or acidity of something? From the water we consume to the ground our plants sit in, pH is important. And how do we precisely measure this important trait? Say hello to the pH meter. This fundamental scientific tool enables us to measure hydrogen ion activity in solutions with high precision and deliver a numerical value that informs us exactly how acid or alkaline something is. Being aware of pH meter uses is basic across a huge range of disciplines, from environmental science to food production.

What is a pH Meter Exactly?

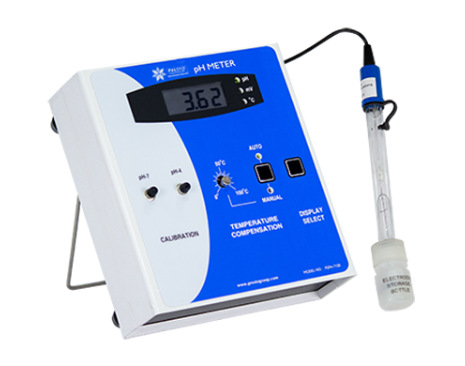

Essentially, a pH meter is an electronic instrument for the measurement of pH (potential of hydrogen) of a fluid. It may comprise a unique measuring probe (an electrode) attached to an electronic meter that shows the pH reading.

A pH meter, unlike litmus paper, which provides a rough idea, provides very exact and reproducible values. The varied pH meter uses emphasize its significance in scientific studies, quality control, and even for everyday use.

How Does a pH Meter Work? Understanding the Digital pH Meter Working Principle

The working principle of pH meter is based on the electrochemical potential difference between the pH-sensitive glass electrode and the reference electrode. Let's discuss the process of working on a digital pH meter in detail. The glass electrode consists of a thin, hydrogen ion-permeable sensitive glass bulb at its tip. When the electrode is placed in a solution, hydrogen ions of the solution exchange with glass bulb ions, producing a very small electrical potential difference.

At the same time, the reference electrode has a constant potential irrespective of the pH of the solution. The pH meter then detects the difference in voltage between these two electrodes. The difference in voltage is directly proportional to the pH of the solution. The electronic meter then uses this voltage to convert it to a pH value, which is numerically displayed. This complex but accurate digital pH meter mechanism provides precise readings.

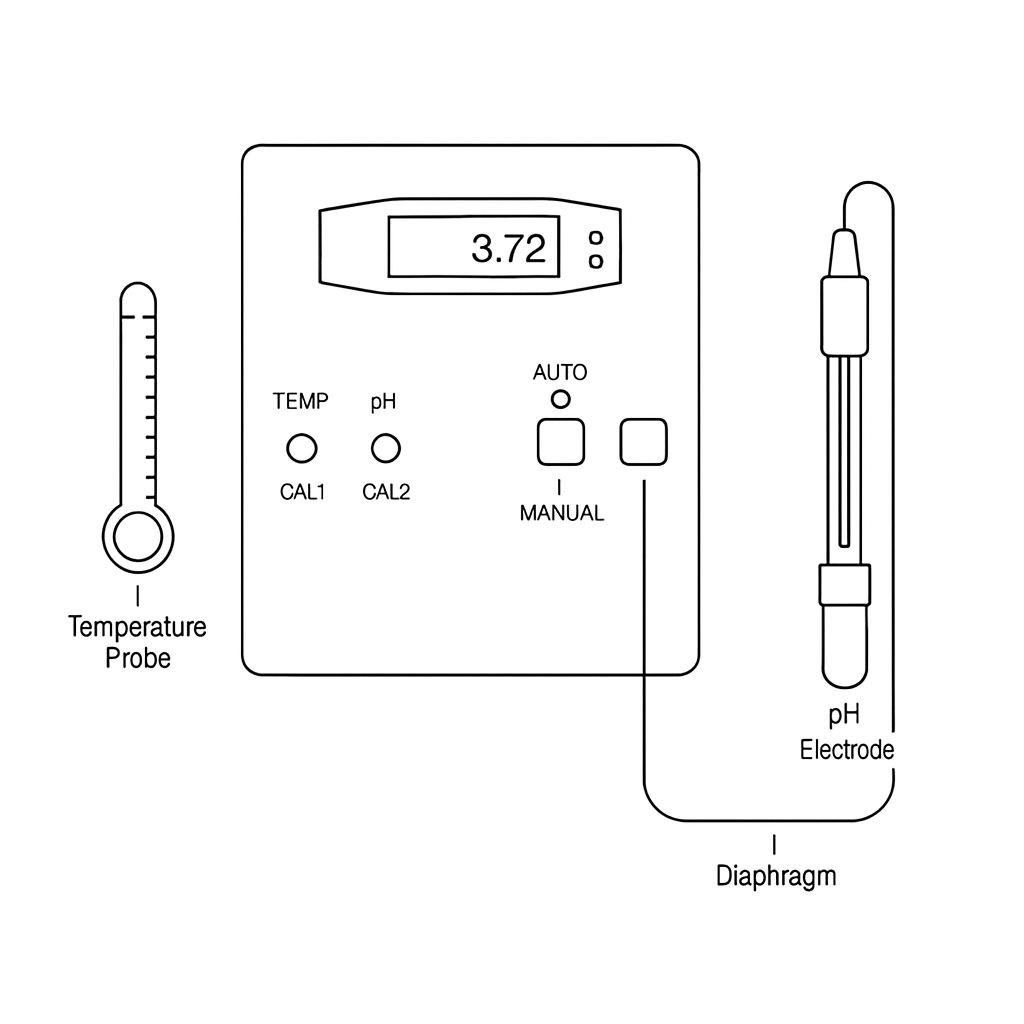

What Does a Digital pH Meter Diagram Look Like?

A standard digital pH meter diagram would show the major parts. You'd have the main unit of the meter with its display and control buttons, and it would be connected to a probe by a cable. The probe itself is typically a combination electrode, and that means it has the glass (measuring) electrode and the reference electrode together within a single unit.

Within the probe, you would see the internal electrolyte solutions and the delicate glass membrane. Knowing the digital pH meter diagram makes it possible to visualize how all of these components are involved in its use.

What are the Principles and Applications of a pH Meter?

The basic pH meter principle and applications are enormous. The principle, as explained, is the determination of hydrogen ion activity through electrochemical potential. The applications, however, are extremely wide-ranging.

In agriculture, pH meters measure the pH of soils so that crops can achieve the best nutrient uptake. In environmental monitoring, pH meters measure the quality of rivers, lakes, and household water. pH meters are useful in laboratories in solution preparation, chemical reaction, and biological specimen testing. pH meters are used in the food and beverage industry for quality control as it applies to products such as dairy, juice, and fermented foods to ensure they are the right acidity. Even in pool maintenance, pH meters are employed to balance water chemistry. The various types and use of pH meters highlights their importance.

What is the Procedure of Using a pH Meter?

Use of a pH meter should be correct in order to obtain accurate readings. Below is a general procedure of pH meter use:

• Calibration: This step is crucial. Prior to using the pH meter, or even each day that it is used, it should be calibrated with buffer solutions of known pH (generally pH 4.0, 7.0 and 10.0). The calibration process allows the meter to be set so that it measures accurately in the entire range of pH.
• Rinsing: Rinse the electrode with deionized or distilled water after every calibration and between samples to prevent contamination of samples.
• Immersion: Immerse the electrode slowly in the sample solution. Ensure the sensing bulb is fully submerged.
• Stabilization: Allow the reading to stabilize on the digital display for a few seconds. The operation of the pH meter relies on achieving equilibrium.
• Recording: Record the stable pH reading.
• Storage: After they are used, wash the electrode and keep it in a dedicated storage solution (usually KCl or a pH 7 buffer, according to the manufacturer), and not in distilled water, to avoid drying of the sensitive glass membrane.

This procedure of pH meter usage guarantees accurate measurements each time.

To conclude, the pH meter is a versatile and versatile tool. Its ability to accurately measure pH is noteworthy and has relevance across a number of different–industries and scientific endeavours. From understanding the complex processes that a digital pH meter can perform, to expanding the applications of pH meters, it is clear to see this instrument plays a key role in ensuring quality, safety and scientific accuracy in our world.
