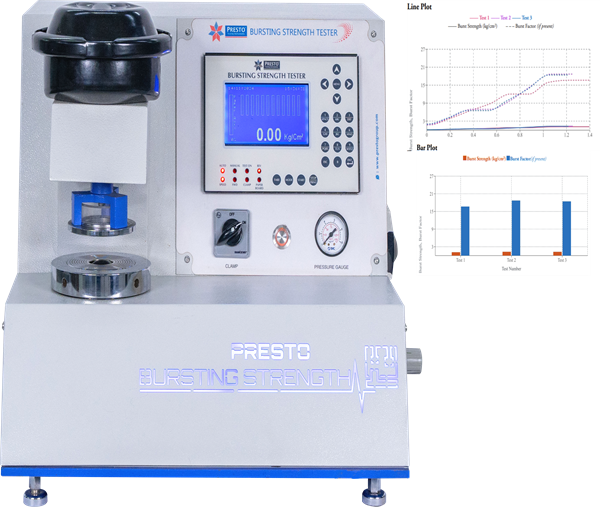

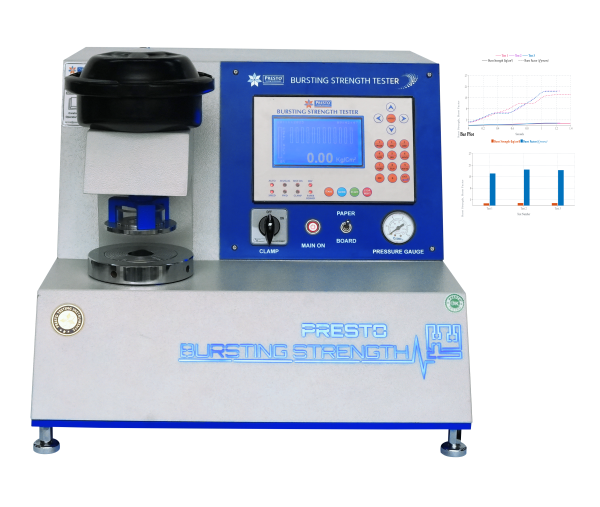

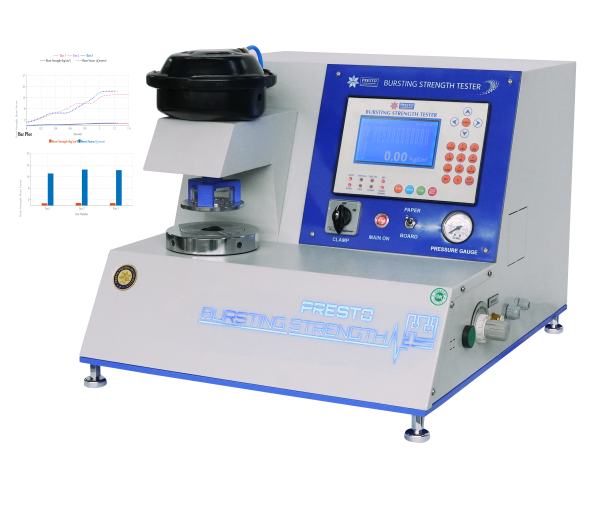

Bursting Strength Tester –Pneumatic Burst genie 4.0 Computerized is a consistent tool to indicate the Strength and performance of material like paper boards, paper, uneven boards , boxes , solid fiber boards, Foils, sheets, etc. PRESTO Bursting Strength Tester is manufactured under various Test Standards ASTM D 3786-01, ASTM D 3786 – 80A, ISO 1060 PART-1 1987.
|
Capacity |
40 kg/cm* |
|
Display |
5 Inch LCD |
|
Specimen Clamping |
Pneumatic |
|
Accuracy |
± 1% within 10% to 90% of entire range as per IS : 1828 with master gauge |
|
Least Count/Resolution (Paper mode) |
0.01 Kg/cm2 |
|
Least Count/Resolution (Board mode) |
0.1 Kg/cm2 |
|
Pressure Sensor |
Pressure Transducer |
|
Power |
220V, Single phase, 50 Hz |
|
Test fluid |
Glycerin about 98% purified (lab grade) |
|
Rate of fluid displacement |
95 cc/minute |
|
Motor |
1/4 HP, Single Phase, 1440 rpm |
|
Test Range |
0.5 Kg / cm2 to 38 Kg / cm2 |
|
Multiple test units |
Kg/cm2, MPA (Board) , KPA (Paper), PSI and Bar |
|
Operation mode |
Paper and Board |
|
Average value display |
Yes |
|
PASS/FAIL criteria |
Yes , Minimum and maximum test values can be entered for every test |
|
|
|
|
Display |
A maximum of 12 samples results can be seen on display |
|
Maintenance kit |
Yes, included |
|
Safety Switch |
Yes |
|
Material |
Mild Steel |
|
Finish |
Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish |
|
Dimensions |
500 x 600 x 443 mm |
|
Sample Clamp Pressure |
2 - 5 Bar (3 to 4 CFM) |
A two page PDF report which comprises of specimen details, date and time for Test performed, company logo and address details.
Bar/Line graph of 12 samples can be visualize at one time with its BF values for comparative analysis
Time stamped tabular test data report with PASS/FAIL status
Summary of test results which includes
Ø Percentage of accepted samples and rejected samples during the tests based on lower and higher acceptance values
Ø High and low values for rejected samples
Ø Statistics Of accepted samples with minimum , maximum and Average values for Bursting strength and Burst factor
Ø Option to enter remarks after every test
Ø Authenticated test reports with signatures from both the Performer and the Approving Signatory
Ø Additional comments can be added in each test report
• Digital and Pneumatic computerized models also available (with or without printer facility)
For BF Auto calculation, User need to enter GSM value .There after bursting factor and burst index can be calculated by the user.
• 100 Ml Glycerin bottle 1no.
• Rubber Diaphragm pack of 2 nos.
• Calibrated Aluminum foil pack of 4 nos.
• Screw Driver 1 no.
• Glycerin bowl opening wrench 1 no.
