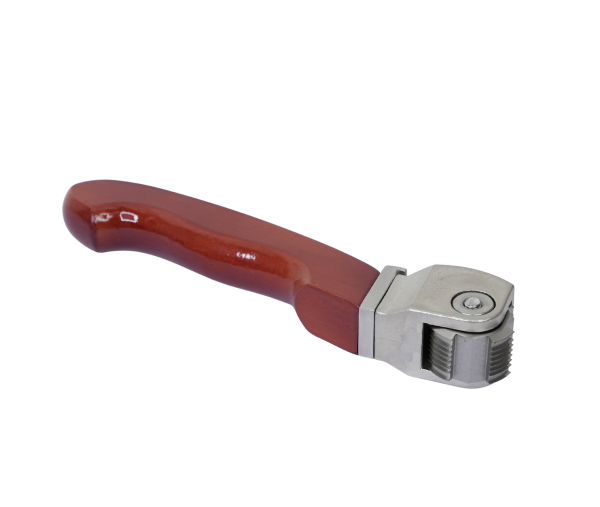

Cross Hatch Adhesion Tester
The Cross Hatch Tester is a device that evaluates the adhesion strength. It examines the adhesion power of paints, coatings or any other treatments applied to surfaces ( like wood, plastic or metal).
A quick cut pattern( a crosshatch pattern) is made on the coated sample, and tape is applied. The adhesion strength becomes clear from how much coating stays in place. It is a fast and trusted method to evaluate coating quality in factories, automotive units, appliance plants, and various finishing lines.
Cross-Hatch Tester Complies with ASTM D 3359, BS EN 2409: 2013, DIN EN 2409: 2013-6, ISO 2409: 2013
Rating
5/5Model PCHT - 0172
Brief insight into the Cross Hatch Tester
A Cross Hatch Tester is used to check the bond strength between a coating and the material below it. It cuts a series of fine and evenly spaced lines on the surface. The pattern shows how strongly the coating holds on. Labs use it to spot coating issues early, while manufacturers use it to keep every batch steady and dependable.
Applications
- It helps paint makers to check batch quality before the material moves to filling and dispatch.
- It helps automotive plants to check the paint grip on panels and parts.
- It assists the appliance manufacturers to check the finishing on washing machines, refrigerators and similar products.
- It helps plastic and metal part makers check how well the coating holds on different surfaces.
- It helps furniture and wooden panel units check varnish and lacquer adhesion.
- It helps coating suppliers test customer samples before sending the material out.
Standard compliance
- ISO 2409
- ASTM D3359
|
Parameters |
Specification |
|
Angle of the cutting teeth |
30 ° |
|
Width of the cutting teeth |
1 mm/ 6 teeth |
|
Tape peeling Angle |
60 ° between the tape being pulled off and tape remaining |
|
Cut mark length |
20-30 mm |
- The handle has an ergonomic shape with a firm grip that supports steady use during long test hours.
- It comes with all the tools and accessories needed for precise crosshatch evaluation.
- Its pivot-aligned cutting head keeps the tool in the right position and spreads pressure evenly on the test surface.
- The hardened steel blade is replaceable and has four working edges for long service life.
- Adhesive tapes are offered in variants that match ISO 2409 or ASTM D3359 testing standards.
Reviews
Customers Reviews
What our customers say about us is important to us.
A: It helps spot weak adhesion early, which helps avoid peeling, flaking, and early coating failure in the market.
Q: How long does the test take?
A: The test takes only a few minutes from cutting the pattern to applying the tape.
Q: How to know the current pricing details of the Cross Hatch Tester?
A: Customers can contact us on the provided email ID and contact number for pricing details. Our team will guide you regarding the price.
Q: Does the tester work on all coatings?
A: It works on most paints, varnishes, lacquers, and thin industrial coatings.
Q: Where is this tester mainly used?
A: It is used in coating units, paint labs, appliance factories, automotive plants and industrial surface finishing setups.
Q: What does a Cross-Hatch Tester check?
A: It checks how tightly a coating sticks to the surface.
