Edge Crush Tester in Ahmedabad

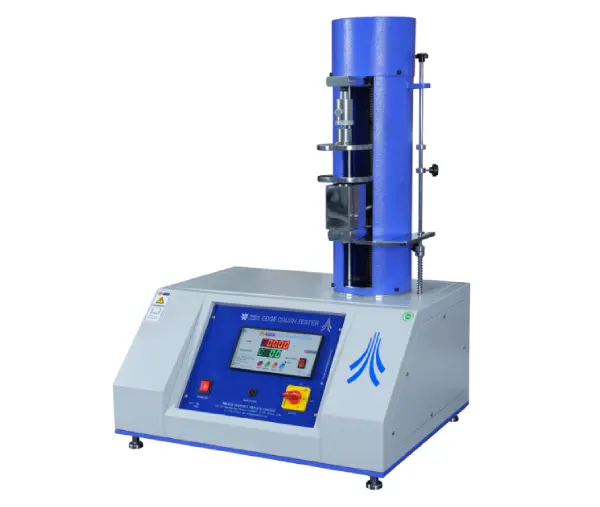

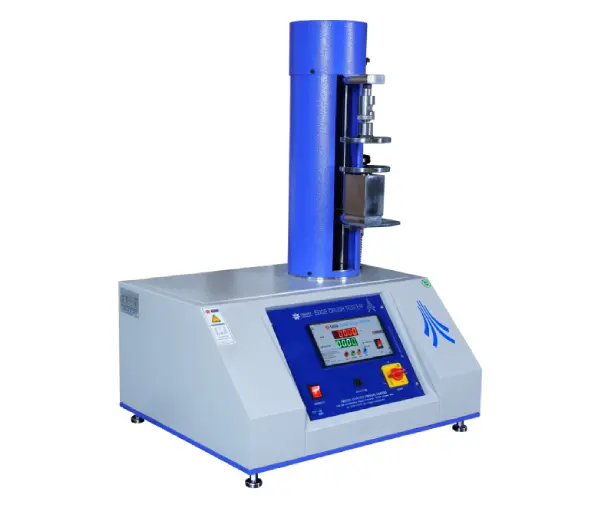

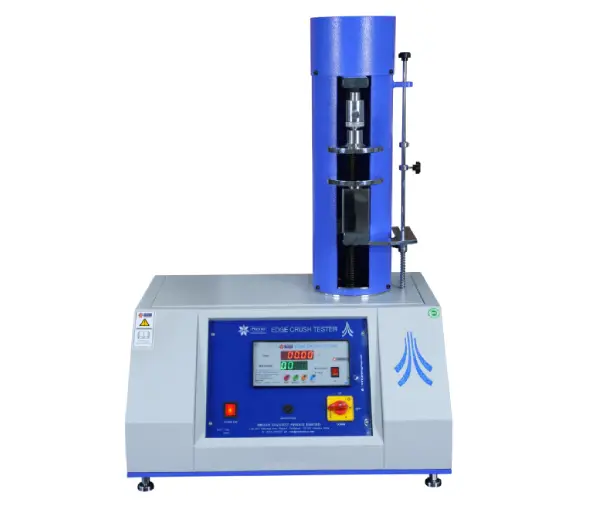

The edge crush testing machine is used for calculating the Crush strength of fibreboard material which is used to build carton boxes. The machine is a digital model and is designed as per international standards. Now you can get Edge Crush Tester in Ahmedabad, Gujarat. Just contact our team for a quotation.

Model PCT -100

Video

Product PDF

The fibreboard material out of which the Carton boxes or corrugated boxes are made is checked for its crushing load. This type of load is often experienced by carton packaging while storage in warehouses or while transporting. The resistance against the crushing load is inspected to categorize material as per their quality standards. The equipment used is termed as edge crush testing machine. It can perform 3 types of crushing load test that is ring crush test, flat crush test and edge crush test. Distinct test type uses different fixtures. The clamping fixtures are specially designed to hold tight the specimens at the time of the test. It uses highly advanced microprocessor program for recording precise test values. The machine has a load cell equipped to ensure uniform distribution of force while exerting crushing load. Get Edge Crush Tester in Ahmedabad and also in other industrial regions of India.

Load Cell Capacity

250 Kgf

Display

LCD (Digital)

Accuracy

±1% at full load (with master load)

Least Count/Resolution

0.01 Kgf

Power

220V, Single phase, 50 Hz

Test Speed

12.5± 2.5 mm/min

Multiple units

Kgf, kN, Newton, Lbf

Stop method

Breakdown, achieved load, displacement

Pass/Fail criteria

Minimum & Maximum settings

Profile creation

Available

Results

Load, deflection, Strength

Separate passwords

User & factory settings

RTC settings

Available

Output

Thermal printer

Safety Switch

Upward & Downward Limit Switches

Material

Mild Steel

Finish

Powder coated Havel Gray & Blue combination finish and bright chrome / zinc platingfor corrosion

resistant finish

Dimensions

600x700x863 mm

Displace ment unit

Millimeters, Meters, Centimeter, inches

Edge Crush (ECT) Tester LCD Model


1.Automatic Testing Operation
The machine performs the test automatically after sample placement, reducing manual error and improving repeatability.
2.LCD Display with Live Test Status
The LCD screen shows real-time test status, load value, displacement, selected test mode, and result during operation.
3.Automatic Home Positioning
After completion of the test, the compression plate automatically returns to its home position for the next test.
4.Multiple Test Mode Selection
The instrument allows selection of different test types such as ECT, RCT, and FCT from the controller.
5.Thermal Printer Output
Built-in thermal printer provides instant printout of test results for documentation and quality records.
6.Multiple Load Units
Test load can be displayed in multiple units including kN, N, kgf, and lbf.
7.Result Display in Standard Units
Final test results can be calculated and displayed in required units such as kgf/m, N/m, lbf/inch, and kN/m.
8.Sample ID Entry
The user can enter or mention the sample ID for proper test identification and traceability.
9.Sample Dimension Entry
Sample dimensions can be entered as per the selected test type for accurate result calculation.
10.Pass/Fail Criteria
User-defined pass/fail limits can be set, and the machine displays the sample status after the test.
11.Auto Stop at Specific Load
The machine can be programmed to stop automatically at a defined load value for controlled compression testing.
12.Auto Stop at Displacement
The test can also be stopped automatically when the set displacement value is achieved.
13.Break Point Detection
The machine automatically detects the peak load/break point and records the final test result.
14.High-Resolution Deflection Measurement
Deflection least count of 0.01 mm provides accurate displacement measurement during compression testing.
15.Accurate and Repeatable Testing
Controlled movement and digital measurement ensure reliable results for corrugated board and paper testing.
16.User-Friendly Interface
Simple menu-based operation makes it easy to select test type, set parameters, start testing, and print reports.
17.Compact LCD-Based Design
Suitable for quality control laboratories, packaging industries, and corrugated box manufacturing units.
18.Suitable for Multiple Packaging Tests
The same instrument can be used for Edge Crush Test, Ring Crush Test, and Flat Crush Test with suitable fixtures.
