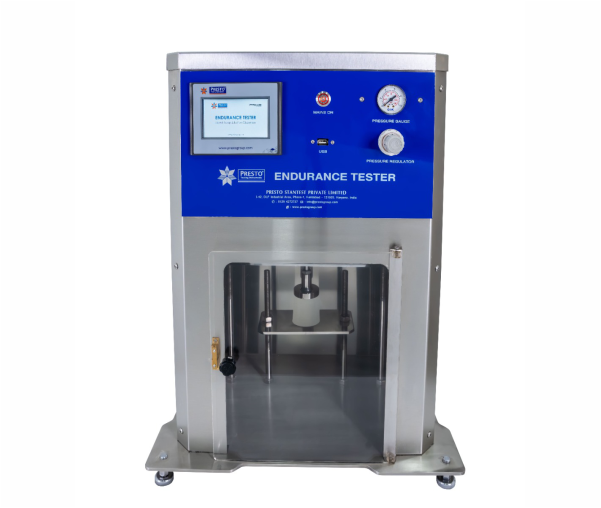

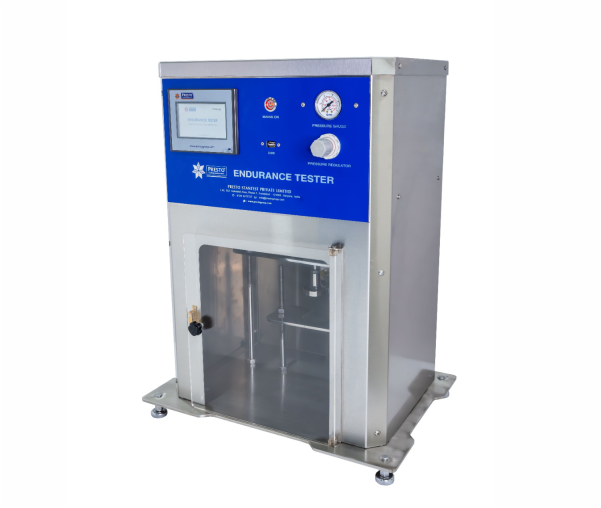

Endurance Tester
The endurance tester for bottles, also known as the endurance test apparatus, assesses the mechanical actuation involved in bottle cap designs and is engineered to evaluate the longevity and durability of dispensing pumps. The instrument applies controlled mechanical stress in the form of compression, closely simulating the real-world pressing action a human hand exerts on a bottle cap during regular use.
The tester puts components through repeated load cycles under controlled conditions to see how a product really holds up over time—running until it either hits the target number of cycles or gives way from normal wear and tear.
- Purpose-built endurance testing machine for pumps and bottle cap closures
- Uses repetitive compression cycling to gauge long-term product durability
- Sturdy mild steel body designed to withstand continuous use
- Simple HMI interface for quick setup and hassle-free operation
- Consistent actuation delivered through a pneumatic cylinder mechanism
- Digital counter tracks test cycles from 0 all the way up to 9999
- Precise pressure control via an adjustable regulator
- Real-time pressure readings shown on an integrated gauge
- Comes with a USB port for easy data transfer and storage
- Supports data logging and retrieval to keep test records organized
- Specimen fixtures adjust to hold different bottle and pump sizes securely
- As reliable endurance test equipment, it is equipped with a safety glass door for protected, visible testing
- 220V AC, 50 Hz power standard
- Compatible with dispensing pumps, lotion pumps, trigger sprayers, mist sprayers, bottle caps, and other similar closures, making it an endurance test dispenser
a. Compact size machine with Mild Steel material
b. HMI screen based controlling for ease of operation
c. Inbuilt Counter with high range from 0-9999.
d. Pneumatic cylinder for pressing fixture onto specimen
e. Elegant safety glass door.
f. USB port facility
g. Pressure regulator for ease of operation in controlling pressure applied
h. Efficient pressure gauge to monitor the value of pressure
i. Adjustable fixtures for specimen to ensure accuracy
j. Data retrieving and storage facility available.
A: You can reach out to Presto Group directly at info@prestogroup.com or call 9210 903 903 for details on the Endurance Tester and their wider range of lab testing instruments.
Q: How many test cycles can the machine track?
A: The tester comes with an inbuilt counter with a high range of 0–9999 cycles.
Q: What problems can this test help identify?
A: It helps catch issues like slack dispensing pumps, reduced actuation force, and general wear that can affect pump performance over time.
Q: How does the tester simulate real-world pump usage?
A: It applies repeated mechanical compression cycles that mimic the actual pressing action a human hand applies during regular use, continuing until it hits a set number of cycles or the pump fails from wear and tear.
Q: What types of pumps is this machine suitable for?
A: Endurance testing of dispensing pumps is suitable for all types.
Q: Can the testing parameters be customized?
A: Yes, the machine allows you to create your own cyclic testing programs, so you can tailor the test to match specific pump types and requirements.
Q: What is the dispensing pump durability test machine used for?
A: This thing is used to check how well dispensing pumps work by pretending they are being used in the world. It helps the people who make these pumps figure out if there are any problems with the pumps, like if they're loose or worn out, before the products get to the customers. The dispensing pumps are tested to see if they can really do their job. The goal is to find any issues with the dispensing pumps before they are sold.
