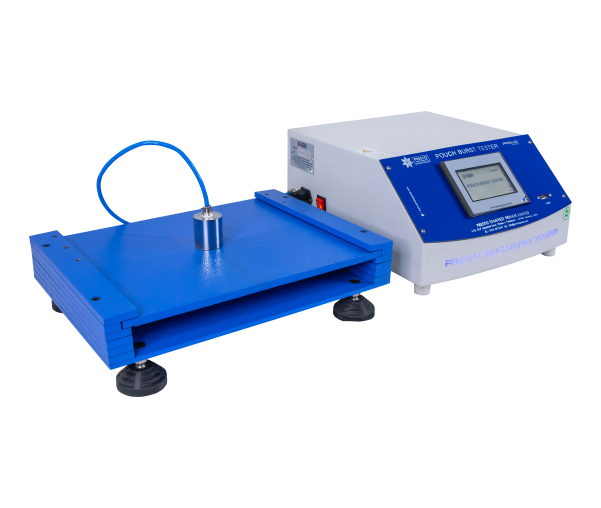

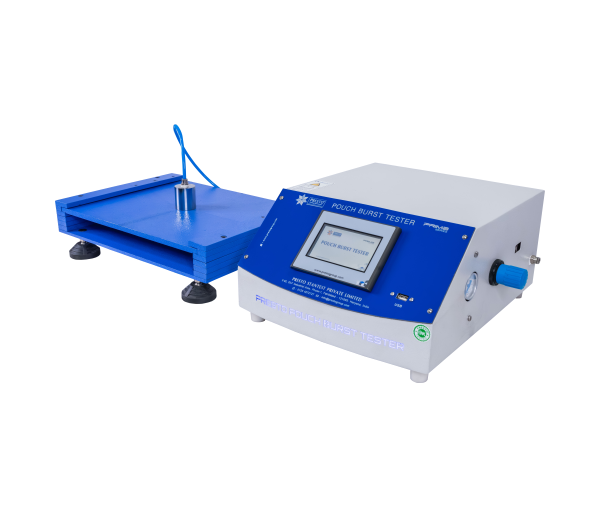

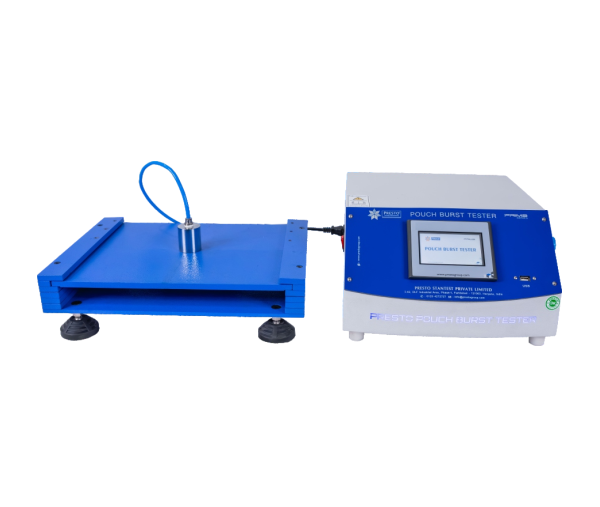

Pouch Burst Tester with Restraining Plates



The Pouch Burst Tester with Restraining Plates is designed to check the compression strength, seal strength, and ability to prevent leaks of packaging pouches, sachets, laminated packs, and sealed packets. The device applies a controlled force to a filled or sealed pouch to see if the packaging can handle the pressure that happens when it is stacked, moved, handled, or stored.

The pouch is placed between the compression area and the restraining plates, which keep it in position and stop it from bulging much during the test—this helps to make sure the results are accurate and the same every time. This type of testing equipment is used a lot in the food packaging, pharmaceutical packaging, cosmetic packaging, chemical, and fast-moving consumer goods industries.

While the test is running, the machine measures the force being used. Finds the exact moment when the pouch starts to leak, the seal fails, or the pouch breaks, changes shape, or tears. This makes it a key tool for checking the strength of pouch seals and the general performance of the package.



• Test Type: Pouch compression/burst resistance with restraining plates
• Restraining Plate Size: 410 x 310 x 40 mm
• Plate Construction: Heavy-duty rigid plates for uniform restriction during test
• Display / Control: Touchscreen HMI
• Operation: User-friendly touch-based operation
• Data Access: USB port for data transfer/report export
• Test Result: Displays peak pressure/compression value as per machine configuration
• Sample Placement: Easy placement of pouch between restraining plates
• Application: Flexible pouches, sachets, sealed packs, food packs, pharma packs, laminate pouches
• Safety: Controlled test operation with stable plate arrangement
• Repeatability: Restricts pouch expansion for consistent, repeatable results
• Result Analysis: Identifies weak sealing areas, leakage points, burst points, or pouch failure



• Suitable for flexible pouches and sachets – Tests laminated pouches, liquid pouches, powder pouches, sachets, and sealed flexible packs.
• Restraining plate arrangement – Controls pouch expansion and maintains uniform testing conditions during compression.
• HMI Display – Touchscreen panel for easy operation, load reading, and test monitoring.
• Accurate load measurement – Calibrated load cell ensures reliable, repeatable compression results.
• Peak load indication – Displays maximum load achieved to identify pouch failure strength.
• Easy sample placement – Open platform design for convenient pouch loading and removal.
• Seal integrity testing – Verifies whether pouch seals withstand pressure without leakage or bursting.
• Quality-control friendly – Ideal for packaging labs, production QC departments, and R&D facilities.
• Simple operation – User-friendly design requires minimal operator training.
• Repeatable test method – Restraining plates maintain consistent sample positioning for repeatability.

Q: How can Presto help get pricing or a demo for the Pouch Burst Tester with Restraining Plates?
A: If you want to know the price of the Pouch Burst Tester with Restraining Plates or you want to see how it works, you should get in touch with Presto Stantest PVT. LTD. at +91 9210 903 903 or email info@prestogroup.com.

Q: What kind of results does the machine provide?
A: The tester shows the load or compression number. It helps find out when the seal breaks, when there is leaking, when the pouch bursts, when it changes shape, or when it tears.

Q: Where is the pouch compression tester used?
A: People use packaging testing equipment a lot in the food packaging industry. It is also used in the pharmaceutical industry, the cosmetic industry, the chemical industry, and the FMCG industry. They use packaging testing equipment to check if the packaging of pouches and sachets is good.

Q: Why are restraining plates important in pouch compression testing?
A: The restraining plates keep the pouch in place. They stop it from getting too big during the test. This means we get results that are more stable and the same each time we do the test with the pouch.

Q: What is a Pouch Burst Tester with restraining plates used for?
A: This thing is used to see how strong the packaging is. It checks the strength of packaging pouches, sachets, and laminated packs. It does this by applying a controlled force to them. This helps to figure out if the packaging can withstand pressure and if the seals are good and do not leak.
