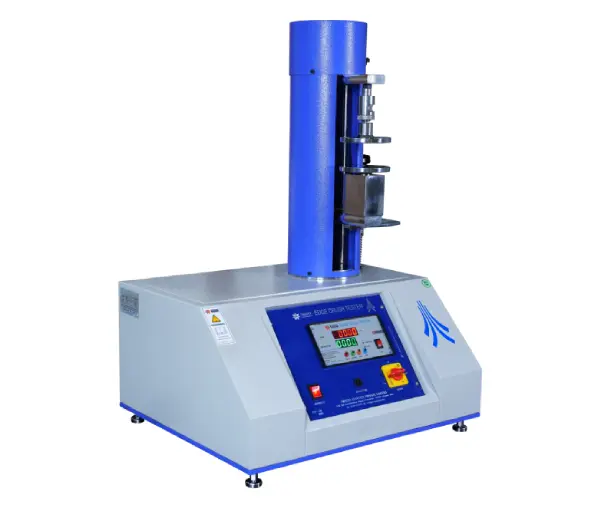

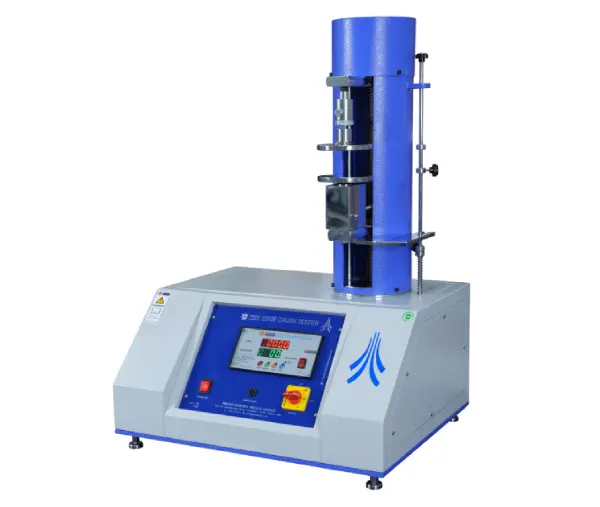

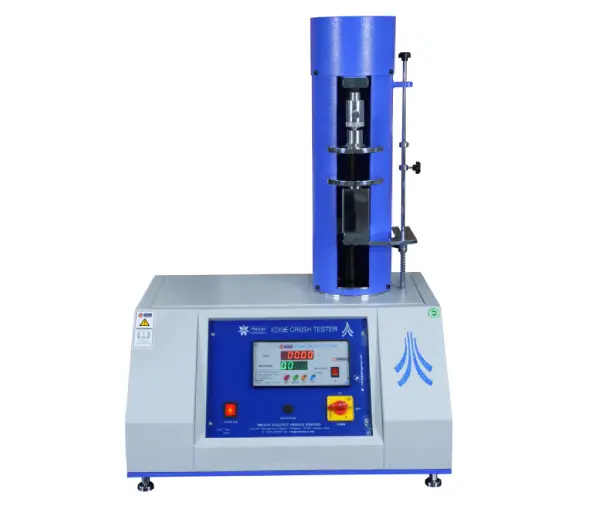

Edge Crush /RCT/ECT /FCT Digital cum Computerised Model
The Presto PCT-100 (C) Wintest is a computerized edge crush tester and digital crush tester built for paper and corrugated packaging quality control. Manufactured by Presto Stantest, it works as a ring crush tester, edge crush tester, and flat crush tester in one machine, with separate fixtures for each test, making it a reliable corrugated board strength tester for laboratories.
Rating
4.8/5Model PCT-100 (C) (Wintest)
The RCT/FCT/Edge Crush Tester is a consistent tool to measure the crush strength of cardboard boxes and packaging containers. RCT/FCT/Edge Crush Tester reveals the crushing resistance in units of kg/unit length. It is a rigid support type compression tester designed to perform TAPPI & ASTM material tests on corrugated board & paper. It is suitable for performing Ring Crush (RCT), Edge Crush (ECT), & Flat Crush (FCT) as per standards. It is a tabletop model.
It comes with a dual system, viz.
1. Digital Display (in case the computer is not used/available)
2. Inbuilt hardware & software CD.
This computerized crush tester generates a Force vs. Time graph report, shows 10 sample test reports on one report, and provides PDF reports with an email facility. It also offers programmable pass/fail criteria, an inbuilt calibration facility, and easy data management with product identification and test details. With a 250 kgf load cell, bright LED display, and feather-touch controls, it delivers accurate results for corrugated box manufacturers, paper mills, and quality control laboratories.
If you are looking for an edge crush test for corrugated boxes, you can contact Presto. For pricing, demos, or customization, email us at info@prestogroup.com or call +91 9210 903 903.
What Is a Computerized Edge Crush Tester, and Why Does Packaging Quality Depend on It?
Corrugated boxes protect products while they sit in storage, are stacked, and travel. The durability of a Corrugated box depends mainly on the strength of the board. To gauge that strength, an edge crush tester is employed. An edge crush tester allows manufacturers and quality teams to assess board and paper quality before any corrugated box leaves the factory.
The Presto PCT-100 (C) Wintest is a crush tester. The Presto PCT-100 (C) Wintest measures the crushing strength of cardboard boxes and packaging containers. Results are shown in kilograms per unit length. The Presto PCT-100 (C) Wintest is built to perform compression tests for board and paper in line with TAPPI and ASTM standards. The Presto PCT-100 (C) Wintest is a tabletop machine, which makes it simple to set up in labs or testing rooms.
Three Tests on One Machine: RCT, ECT, and FCT
One instrument covers the three standard crush tests, each with its own fixture:
- Ring Crush Test (RCT): This test is performed using a ring crush tester fixture. It measures how much paper and paperboard can resist being crushed.
- Edge Crush Test (ECT): This test is done using an edge crush tester fixture. It looks at how strong the edges of the board are when pushed from the side. This test is very important because it shows how well a box will hold up when stacked.
- Flat Crush Test (FCT): This test is carried out with a crush tester fixture. It checks how well the flutes in corrugated material can stand up to being crushed.
Different fixtures for ring, edge, and flat crush mean one machine can be used in the laboratory. Whether the test is on paper, on a board, or in finished packaging, one machine can handle it all.
Why Presto Stantest Is a Trusted Manufacturer and Supplier of Crush/ECT/RCT/FCT Testers
Presto is a trusted manufacturer and supplier of SCT/RCT/FCT testers, and these testers are used by the paper and packaging industries. Presto builds its instruments in-house and sees itself as a premier testing instrument manufacturing company. The PCT-100 (C) Wintest computerized crush tester from Presto Stantest is designed to perform TAPPI- and ASTM-supported tests on board and paper. As a manufacturer of Crush/ECT/RCT/FCT, Presto Stantest follows established quality standards in the design and manufacture of its instruments. Presto Stantest backs its machines with a support network that includes technical support, execution and installation assistance, training, annual maintenance contracts, relocation assistance, and repair and spare parts. Buyers can also request a demonstration or discuss customization to suit their lab requirements. From paper mills to corrugated box manufacturers and QC laboratories, Presto Stantest offers a range of paper and packaging testing instruments, such as box compression testers and bursting strength testers, so labs can source their entire testing setup from one dependable supplier.
Dual System: Digital Display and Computerized Control The PCT-100 (C) gives you two ways to work:
Digital display: Use the bright LED display when a computer is not used or not available.
1. Built-in hardware and software CD: Connect to a PC for computerized testing, data analysis, and reporting.
2. This suits labs that want PC-based records and also need the machine to keep working without a computer.
| Load Cell Capacity | 250 Kgf |
| Display | LED (Digital) |
| Accuracy | ±2% at full load (with master load) |
| Least Count/Resolution | 0.1 Kgf |
| Power | 220V, Single phase, 50 Hz |
| Test Speed | 12.5 ± 2.5 mm/min |
Highlights :
| Safety Switch | Upward and downward limit switches |
| Material | Mild Steel |
| Finish | Powder-coated Havel Gray and Blue, with bright chrome/zinc plating for corrosion resistance. |
| Dimensions | 600 x 500 x 863 mm |
- Microprocessor-based display for accurate test results
- Display of the compression strength of the test specimen
- Separate fixtures for ring crush, edge crush, and flat crush tests
- Highly accurate results under compression force
- Strong gripping clamps
- Bright LED display
- Inbuilt calibration facility
- Feather touch controls
- Graph test report of force vs. time
- 10 sample test reports viewable on one report
- Email facility for reports
- Reports available in PDF format
- Programmable pass/fail criteria
- Easy data management: create product identification, test details, and more
Reviews
Customers Reviews
What our customers say about us is important to us.
A: Corrugated box and CFB manufacturers Paper and paperboard mills Packaging converters Quality control and testing laboratories Any unit that needs to verify board strength against standards
Q: How the ECT Value Helps You Predict Box Strength
A: The ECT value shows how stiff a corrugated fiberboard box is, so you can use it to check how good different boxes are. You can also estimate the strength of the box when it is squished using McKee's formula: Compression Strength = K × ECT × T × Z K = Constant ECT = Edge Crush Test value T = Thickness of the CFB board (wall thickness) Z = Perimeter of the box (2L + 2W) This lets you assess box performance from board-level testing.
Q: Can the instrument dimensions be customized to fit specific requirements?
A: The dimensions mentioned (600x500x863 mm) for this packaging testing instrument are standard. However, if you have specific size requirements, you can easily consult with us by calling us at +919210903903 or emailing us at info@prestogroup.com to discuss customization options. Depending on your needs, customization may be possible for this quality testing equipment.
Q: What is the test speed of the digital cum computerized model of the ECT tester?
A: The Presto Crush/RCT/ECT/FCT Digital Cum Computerized Model operates at a test speed of 12.5±2.5 mm per minute. This controlled test speed is essential for consistent and reliable results.
Q: How does the built-in hardware and software CD system enhance testing capabilities?
A: The built-in hardware and software CD system allows for computerized data analysis and storage. It provides advanced features for data management, trend analysis, and report generation, making it ideal for organizations that require extensive data recording and analysis
Q: How can I request a demonstration or obtain more information about this model?
A: To request a demonstration or gather more details about the Presto Crush/RCT/ECT/FCT Digital Cum Computerized Model, please give us a call at +919210903903 or email us at info@prestogroup.com. Our team of technical experts will be happy to assist you with your inquiries and provide the information you need.
Q: Can we perform multiple crush tests using the Presto Digital cum Computerized Crush Tester?
A: Yes, this digital cum computerized model is capable of conducting three essential types of crush tests: Ring Crush (RCT), Edge Crush (ECT), and Flat Crush (FCT). It adheres to established industry standards for each of these tests. This makes it highly suitable for testing laboratory environments where precision and accuracy are essential.
Q: How is the quality of a corrugated fiberboard (CFB) box determined using the ECT tester?
A: The ECT value obtained through testing with the ECT Tester reflects the rigidity of the CFB box. This value can be used to compare the quality of different CFB boards. Moreover, it's possible to determine the compression strength of the CFB box using McKee's formula: Compression Strength = K * ECT * T * Z, where: K = Constant; ECT = Edge Crush Test Value; T = Thickness of CFB board (wall thickness); Z = Perimeter of the box (2 L + 2 W)
