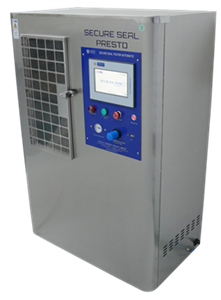

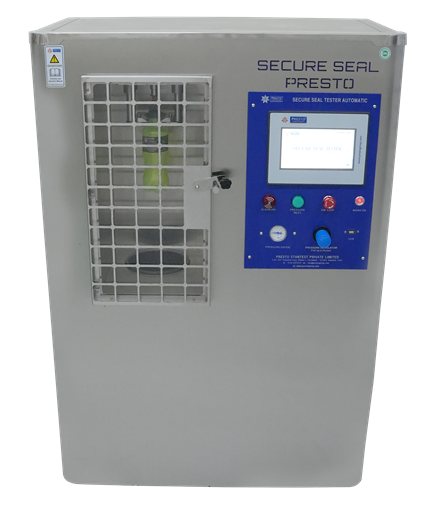

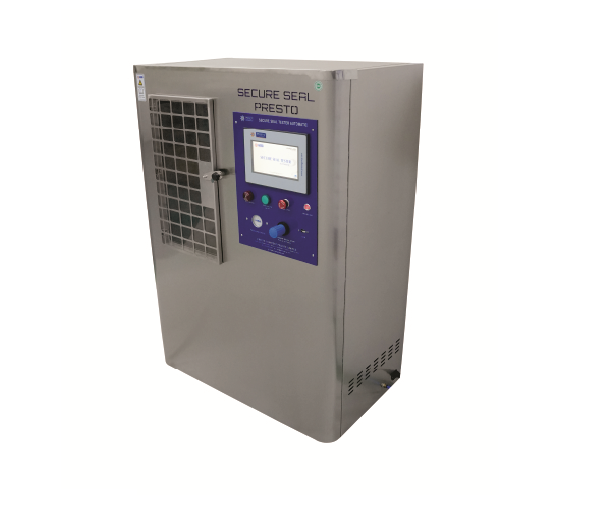

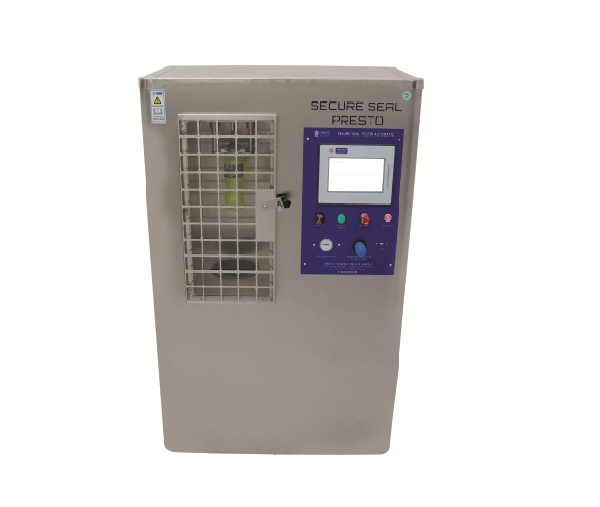

Secure Seal Tester for Bottles

Secure Seal Tester for Bottles – Advanced Solution for Leak-Proof Packaging

A secure seal tester for bottles is an essential testing instrument designed to evaluate the integrity of bottle seals and closures. It helps manufacturers ensure that the packaging of beverages and other liquid products remains leak-proof, tamper-resistant, and safe for consumers. By detecting gas leakage rather than liquid, this tester provides highly sensitive and accurate results.

Whether used for PET containers or glass bottles, a secure seal tester for glass bottles plays a vital role in quality control. It ensures that closures such as aluminum roll-on caps, twist crowns, or other sealing mechanisms provide consistent protection against leakage during transportation and storage.

For industries dealing with beverages, pharmaceuticals, and liquid packaging, a security seal for bottles is not just about safety—it’s about maintaining product freshness and consumer trust. The secure seal tester helps identify defective seals at an early stage, reducing product recalls, maintaining compliance with industry standards, and improving overall production efficiency.

With advanced features such as touchscreen HMI, automatic pressure release, inbuilt calibration, and data management with USB connectivity, the Secure Seal Tester provides a user-friendly and highly reliable testing experience. It ensures that every bottle leaving the production line meets the highest standards of seal integrity.

•HMI based Touchscreen Model

•Automatic sample testing through easy pressure release mechanism

•Pneumatic sample covering and movement for Bottle Fitting and testing

•Pneumatic penetration of piercing fixture on bottle caps

•Pressure, Inlet Pressure setting and Preset Timer functions incorporated in HMI for accuracy and repeatability

•Program profile for selecting test parameters and performing the test.

•Easy Data Management. User can create product identification, test pressure, time etc.

•USB option available for storing test data

•Data output in excel format.

•Current test running status display

•Changeable Pressure Units

•Inbuilt Calibration facility

•2 layer safety container

•Emergency press

Display	HMI Based touchscreen
Equipment Range	220 psi
Test Range	175 psi
Accuracy	Plus or Minus 2 percentage at full range
Least Count/Resolution	0.1 psi
Power	220V , Single phase, 50 Hz
Pressure Unit	Inbuilt in HMI (changeable in Kg/cm* psi& bar
Inner Size of testing container	L 250 x W 225 X H 450 mm
Timer	Inbuilt in HMI Preset upto 999 seconds
Pressure Release	Auto pressure release system
Sample Holder	Piercing fixture for cap

Highlights:

Material	Test container poly carbonated sheet
Finish	Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish
Dimensions	705x570x700 mm

• High pressure regulated airline not in our scope of supply

Optional Features:

• Piercing tool extra on chargeable

Here are the features of the Secure Seal Tester for Bottles in clear point form:

HMI-based touchscreen display for easy operation
Automatic sample testing with smooth pressure release mechanism
Pneumatic sample covering and bottle fitting system
Pneumatic piercing fixture for testing bottle caps
Adjustable pressure and inlet pressure settings through HMI
Preset timer function for accurate and repeatable testing
Program profile for selecting test parameters and running tests
Easy data management with product identification, test pressure, and time recording
USB connectivity for storing test data in Excel format
Real-time test running status display on screen
Changeable pressure units (Kg/cm², psi, bar)
