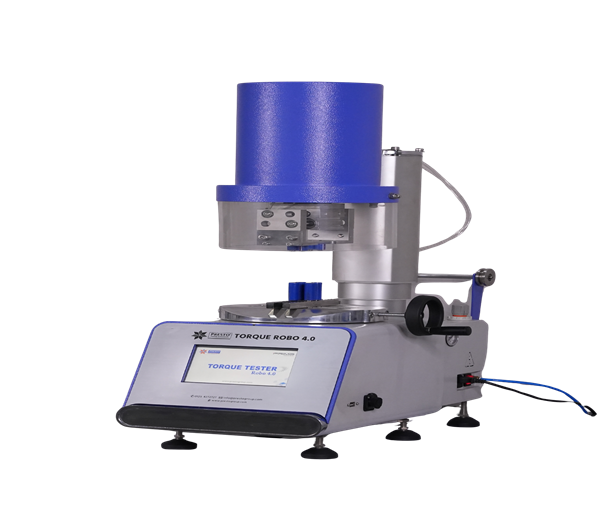

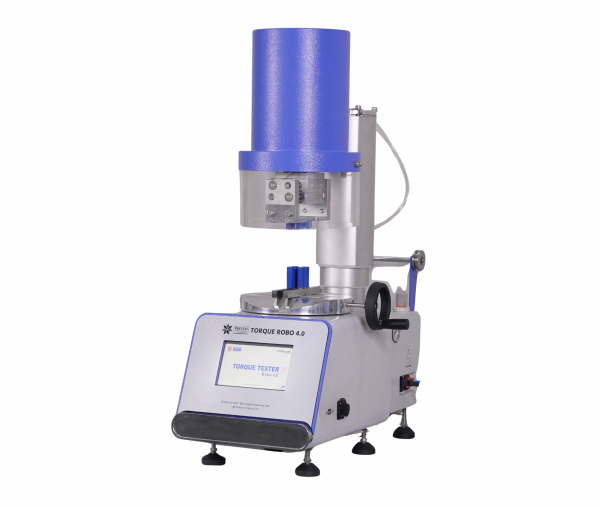

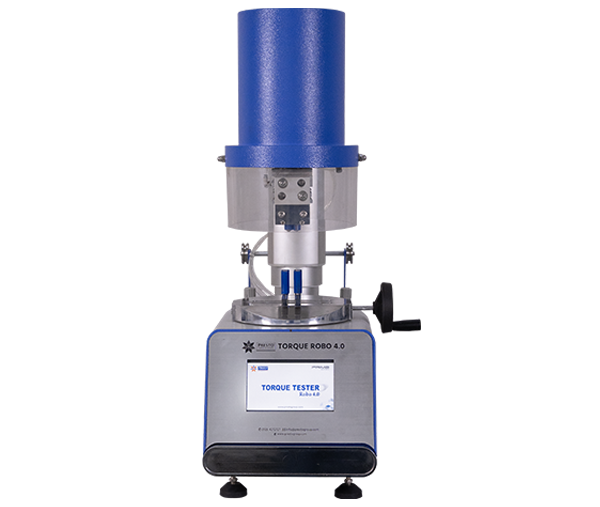

Torque Tester Robo 4.0 Machine Supplier & Manufacturer at Best Price

The Pneumatic 21 CFR Part 11 compliant Torque Tester is a state-of-the-art instrument designed for precise measurement and control of torque in caps, closures, and threaded components. Engineered with pneumatic holding and Electric actuation, it ensures consistent, operator-independent testing with minimal human error.

Equipped with high-resolution sensors and robust pneumatic clamping, the tester provides accurate readings for both application and removal torque. Designed for modern production and quality control environments.

Max. T orque Range	50 Lb inch., 100 lb. Inch
Accuracy	± 0.50 lb. Inch (with master weight)
Least Count/Resolution	0.01 l-b inch
Power	220V, Single phase, 50 Hz
Display	HMI TFT Screen
Torque Unit	lb Inch / Nm / Kg cm / N cm
Minimum Diameter for specimen holding (Cap)	10 mm
Maximum Diameter for specimen holding (Base)	160 mm
Max. height of bottle	470 mm
Anti-vibration pad	Specially designed to reduce the effect of the vibration
Software	21 CFR compliance
Multiple Logins	Yes
History	Excel, Pdf (Included Bar graph)
Safety	Acyrlic Covering
Height adjustment	Telescopic Actuator for Smooth Up and down
Records	1. Audit Trail 2. Login records 3. History records
Limits of Records saving	5000 records

Highlights:

Safety	Yes (over load protection) Physical protection- Acrylic cover from Pneumatic clamps
Data Out put (USB) Ethernet	USB option available for storing test data Time / Date / Torque / Pass / Fail status/Average/Bar graph/Full description of specimen
Material	Mild Steel
Finish	Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish
Dimensions	340 mm x 650 mm x 900 mm
Calibration Kit	Inbuilt Calibration fixtures with 10 & 20 Lbs weights with A calibrator component

1.Pneumatic Holding and rotation (Ensures high Accuracy

2.Different Units conversion facility

3.Complies 21 CFR FDA Part 11 Software requirements

4.Multiple Logins (Operator, Supervisor, Admin)

5.Audit Trail reports

6.Advanced HMI screen

7.Acrylic Covering for Safety

8.Modernized adjustment of different sizes of bottle with Electrical Actuator

9.Ethernet and USB connectivity.

10.Applicable for Threaded closures like bottles, tubes etc.

11.Login Records trails

12.Bar graph retrieval facility

Images

925890391.toruqe robo 4.0 tester price.png

1672452909.toruqe robo 4.0 tester supplier.png

How it Works
