Case Studies / Aircraft Brake Unit Spring Testing

Aircraft Brake Unit Spring Testing

Solution
Presto Stantest offers touch-screen-controlled mechanical testing devices, self-leveling compression plates, and safety guarding. Test parameters from Component Maintenance Manuals are stored digitally, allowing one-button execution of compression tests with precise force and displacement measurement.

Benefits

Accurate: Reduces human error and allows adherence to aerospace standards.
Easy to use: Touch-screen innovation makes the process easier.
Reliable Results: Provides clear pass/fail outcomes for each spring.
Process Optimization: Test data helps refine maintenance procedures and improve component reliability.

In the world of mechanical testing, where speed, accuracy, and repeatability are paramount, Presto Stantest's mechanical testing machine has revolutionized the testing of brake units in large airline maintenance units.

Traditional maintenance facilities required a lot of manpower and expert analysis of brake unit springs and often introduced a lot of variability into the overhaul process, making it much longer. The fully automated, touch-screen-controlled Presto Stantest system overcomes these challenges, delivering a system designed for the heavy demands of aerospace maintenance. The workflow is designed to be intuitive.

It also has well-thought-out hardware. A uniform load distribution on each spring is achieved with self-leveling compression plates, resulting in good repeatability and accuracy. Safety guarding is built in to protect the operator during each test cycle, and automatic pass/fail feedback eliminates the need for specialist analysis of test results, leading to quicker and more confident maintenance decisions.

Aerospace maintenance: It is important in testing the springs in brake units to make sure that pistons are functioning properly and safety standards are being observed. Accurate, repeatable testing prevents failures and supports regulatory compliance for aircraft components.

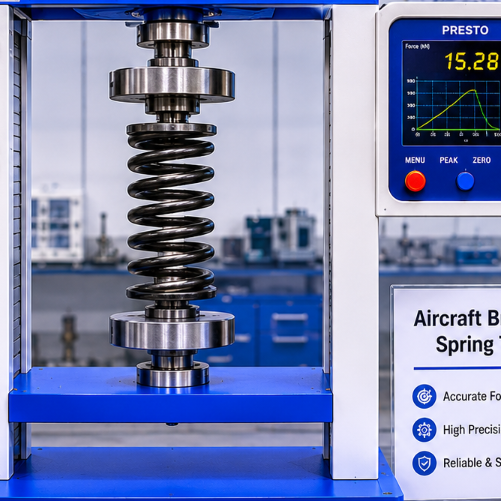

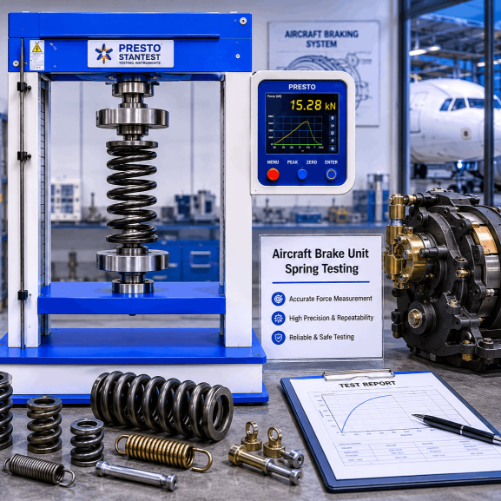

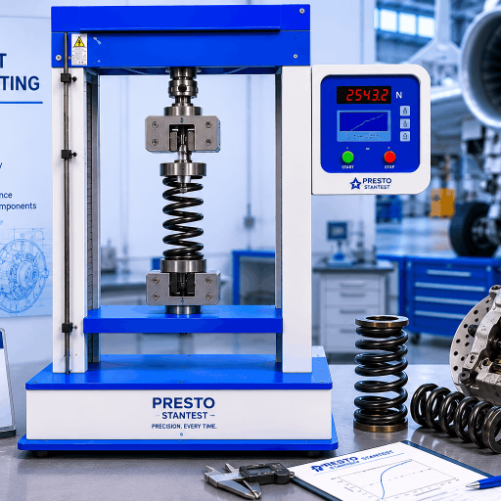

Aircraft brake unit spring testing

Requirement:

The aircraft wheels and brakes departments operating within major airlines undertake the overhaul and maintenance of aircraft brake units on several aircraft platforms, such as the Boeing 737, 747, 757, and 777 airplanes, and the Airbus A319-A321. The second most important thing in the scope of the maintenance process is the examination of the brake unit springs that directly influence the protrusion and retreat of the pistons and the functioning of the brakes in general.

The older manual testing methods were time-consuming and irregular, and needed professional analysts to read the test, which was likely to slow down the entire process of overhaul. The airlines needed a mechanical testing tool that would be able to deliver high-speed, reliable, and repeatable information and minimize human error and adherence to high-quality aerospace standards.

Solution

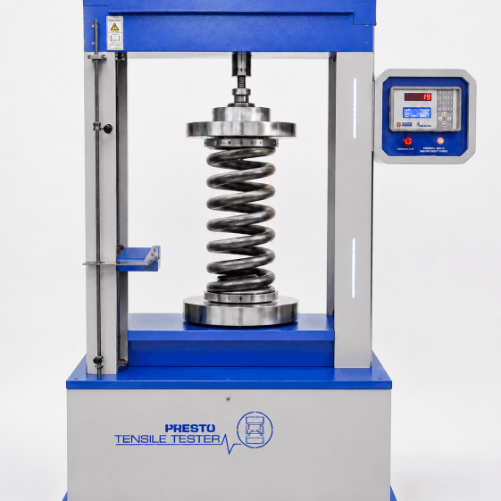

Presto Stantest Pvt. Ltd. also offered a highly advanced, computerized, mechanical testing machine with a touch-screen interface, self-level compression plates, and built-in safety guarding. The system enables testing to be carried out as per the parameters required in the Component Maintenance Manual (CMM) on each brake spring.

The operators can press a button and perform a comprehensive compression test by entering the necessary test parameters into the instrument. The real-life operation of the machine is that it uses a controlled range of loads to simulate brake springs and record accurate data of force and displacement. The automated test routines combined with easy touch-screen operation and live pass/fail feedback results guarantee consistent test results in addition to making throughput far easier.

Spring testing Workflows Presto

Testing Equipment

Console-controlled mechanical testing machine
5 kN load cell for accurate force measurement
Self-leveling compression plate for uniform load distribution
Safety guarding for operator protection

By integrating modern force testing technology into brake spring validation, Presto Stantest delivers measurable improvements in accuracy, efficiency, and reliability for aerospace maintenance operations. These solutions are also scalable for other critical components where force, torque, and material testing are essential.
