Vacuum Leak Tester in Ahmedabad

Vacuum leak testing machine for PET bottles and containers are used to detect leakage in a plastic container under increasing pressure. The chamber increases vacuum decay condition in which the material if has any holes, will easily leak out the air and will be noted. Get Vacuum Leak Tester in Ahmedabad, Gujarat by getting in touch with our team.

Model PVL-0131-Prima

Video

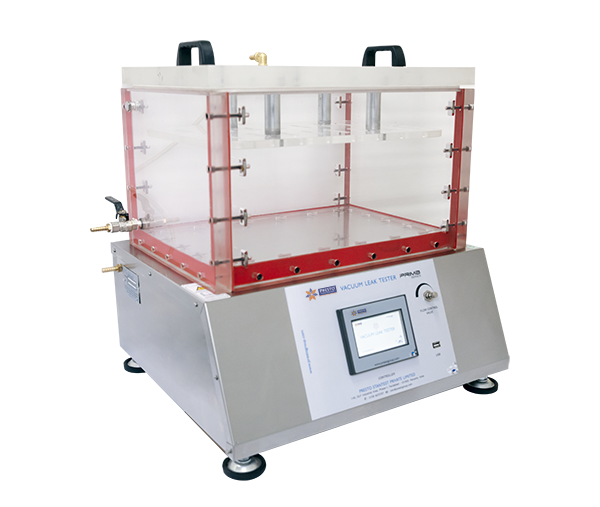

The PET bottle and containers which are used for carrying products can be defective and carrying small tiny holes on the body and sometimes they are so small that is not visible by visual inspection. For which the vacuum tester is used. The machine is equipped with a PET bottle holder inside an acrylic chamber. Place the bottle inside and lock the chamber. Then start the input of water. When the specimen gets filled with the water medium completely one can apply pressure using digital controls. If the bottle is having any damaged crack or hole it will instantly leak out the air bubble in the medium. This is visually inspected easily and the pressure value is recorded on the screen. To improve the testing solutions presto group is now delivering Vacuum Leak Tester in Ahmedabad.

Display: HMI Touch Screen
Least Count: 1.0 mm Hg
Accuracy: 0.5% of the measure
Power: 220 V, Single Phase, 50 Hz
Controls: Pressure Monitoring and Timer Integrated in HMI
Timer: Up to 999 Seconds (Changeable to Hours : Min : Sec)
Material: Mild Steel duly powder coated
Vacuum adjustable up to – 800 mb (-600 mm-Hg.)
Box made of polished transparent PMMA (very rugged)
2 stage vacuum and holding time setting
Delivered with vacuum generator

HMI based Touchscreen Model
Microprocessor based controls for repeatability and accuracy
Meets USP 28 packaging practice specification
Air & Water both can be used as testing medium
Automatic sample testing through easy vacuum mechanism
Pass/ Fail criteria can be programmed.
Changeable timer units in Hrs.: Min: Sec
Inbuilt calibration facility
Vacuum Pressure display incorporated in HMI for easy pressure monitoring
Program profile for selecting test parameters and performing the test.
East data management. User can create product identification, user name, vacuum hold time, set pressure, etc.
Graph of Pressure vs. Time
USB option available for storing test data and graph
Print report with graph
Data output in graphical and data record format.
History data involves username, time, date, vacuum hold time, etc.
