TESTING INSTRUMENTS / Injection Molding Testing Equipments

Injection Molding Testing Equipments

Drop Tester - Manually Operated

The Drop Tester (As per IS:7028 Pt IV) is a useful equipment for ascertaining the transport worthiness of corrugated & solid fiber boxes and shipping containers. It has provision with angular drop arrangement to help accurately ascertain the transport worthiness of the package from all angles.

In stock

Vacuum Leak Tester - Prima (Dry & Wet)

Presto Vacuum leak detection system is now available in Prima series. With HMI Touch Screen Display and fully automatic controls, one can ensure accuracy with repeatability and take data acquisition for the various tests. The Vacuum Tank is specially designed to conduct leak integrity testing of large sized packages in any of the testing mediums.

Box Compression Strength Testing Machine

Presto designs and manufactures the box compression strength testing machine to test the quality of the corrugated boxes (used in most packaging industries to pack food item or other items), paper boards, cartons, paper cases, beehive crates and many more.

Thickness of Plastic Bottles

Inspecting the wall Thickness of Plastic Bottles is an important property that helps to measure the quality of the PET bottles and preforms. To solve this requirement of testing, Presto offers premium quality of Magna-Mike 8600.

Cap Pull out Tester

Cap Pullout tester is used to determine the maximum pull-out strength which is required to pull out the cap of the bottles. It is an important principle used to ensure the quality and the strength of the cap of the bottles.

Torque Tester - Analogue

Torque Tester - Analogue is a consistent tool to measure the force or torque required to open a closed cap of PET bottle/Jars. It gives Torque in analog format. The analogue display is a high-end sophisticated read out with pointer adjusting knob.

Vacuum Leak Tester Digital

The Digital Eco Vacuum Leak Tester is a cost-effective and efficient testing solution designed to enhance the quality control processes in your packaging applications. Crafted with exceptional precision, this laboratory testing equipment is tailor-made for the accurate detection of leaks in a diverse range of packaging materials. Proficient in examining a wide array of items such as foiled cups, gels, grains, cereal, bakery products, confectionery items, frozen foods, cheese, medical supplies, and pharmaceutical products, the Digital Eco Vacuum Leak Tester is your go-to solution. Whether you need a vacuum leakage tester for testing your food packets against vacuum leakage or you want to preserve the integrity of your packaging then you must go for our vacuum testing machine.

Top Load Tester - Digital

The Top Load Tester gives the compressive buckling load in digital format. This is a fully automatic motorized model. The Digital display of the Digital Top Load Tester is aesthetically appealing and sophisticated. It has the capability of measuring the maximum load a container can withstand without deforming when the force is applied from the top.

A Top Load Tester plays a major role in testing strength of items like bottles, containers, jars or packaging materials. It will help you avoid transit issue. You will be able to restrain deformation and defects while storage, shipping and transportation. A Top load tester is widely accepted in various industries like bottling manufacturing, filling and beverage etc. It is a proven method to avoid rejections and leave a perfect impression on your customers.

Registered Design Patent No. 279112

Tensile Testing Machine Digital Cum Computerised Win Test Model

Tensile strength is the stress at which a material breaks or permanently deforms. PRESTO Digital Tensile Tester is a state of the art, highly versatile equipment for checking the breaking strength of packaging related raw materials and finished products.

Heat Deformation Tester

Heat Deformation - HDT/VSP Tester is a consistent tool useful for determining the ability of a given polymer to bear load at elevated temperatures. Accurate and reliable deflection or deformation is an important component in the plastics industry.

Box Compression Tester Computerised

The PRESTO Box Compression Tester Computerised is a compact Instrument with user friendly controls & software. Cardboard boxes should possess sufficient compression strength so that they do not get deformed or crushed when stacked...

Top Load Tester- Prima (Touch Screen)

The new generation Top Load Tester - Prima Series for PET bottles and jars is a fully automatic motorized device that helps to generate compressive buckling load on the products. The instrument offers compressive buckling load on Human Machine Interface based Touchscreen display.

Box Compression Tester Digital

Box Compression Tester is a consistent tool to indicate the Compression strength of cardboard boxes so that it does not get deformed or crushed when stacked one above the other during storage or transit. Cardboard boxes are commonly stacked one on top of the other, during warehousing and storage. So, to ensure that they do not collapse during this, it is necessary to measure their box compression strength. It is based on the principle of measuring the maximum load that the material can withstand without breaking. This process is performed by applying a gradually increasing compression force to a sample until it fails using Box Compression Tester.

Using the equipment, a force-deformation curve can be obtained. This curve helps us evaluate the resistance of a package. It is a reliable equipment that provides accurate information regarding the compressive strength and durability of the package. It enables manufacturers to choose a more resistant packaging and to ensure the contents of the package don’t get damaged during stacking or transit.

Thus, corrugated boxes/cartons/paper packaging can be tested using Box Compression tester. It is widely used to determine compressive resistance, deformation and stacking capability of cartons and corrugated boxes.
Registered Design Patent No. 279106
In stock

Laboratory Hot Air Oven

Hot Air Oven is a unique test cabinet designed to detect the change in the physical characteristics of the material and to ascertain the actual working life of testing device at elevated temperature. Works on Forced air circulation, thermal convection principle, suitable for Tests like heat deformation, compression set, heat resistance required in rubber and plastic industries.

Vibration Table

Vibration simulation is an efficient and cost-effective way of determining damage caused by the repetitive movement in the vehicles. In just a few hours we can pinpoint potential damage areas in your package or product caused by vibration.

Our Vibration Table is customizable. You can get a Digital, Computerised, or touchscreen Vibration table according to your sample testing needs! Be it swivel, synchronous, or asynchronous, test your sample to its fullest to ensure durability, long life, and zero rejections.

Availability: In stock

Digital Specific Gravity Balance

The Specific gravity of any elastomer is of considerable importance for its identification and can also be used for providing a rough assessment of its physical properties.

Notch Cutter (Motorised) For Impact Tester

The PRESTO notch cutter is used for making a notch in the Izod / Charpy samples as per ASTM D 256-10, ISO 180. It is a sample preparation machine that prepares the sample for Izod Tester to test the plastic sheets.

TP110 Precision Color Measurement

The Farbung TP110 is a highly used and preferred color measurement instruments in many industries. There are several new features that are added to the product by the highly competent team of engineers and scientists of Presto Stantest.

Wall Thickness Gauge

Magnamike, manufactured by Olympus, is a premium-quality device renowned for its excellence in conducting wall thickness gauge testing. Offering a non-destructive testing method, this instrument is ideal for measuring the wall thickness of PET bottles. Presto Stantest serves as an authorized dealer for this device.

In stock

Digital Tensile Testing Machine Cap 2500KG

The Presto Tensile Testing Machine is based on the Constant Rate of Traverse (CRT) principle. During the test, the sample is held between two jaws. The upper jaw is stationary, while the lower jaw is made to move at a designated fixed speed with the help of a motor.

Tensile Testing Machine Digital

The Tensile testing Machine is highly recommended for evaluating the tensile strength of products and materials. The equipment is based on the Constant Rate of Traverse (CRT) principle. It is equipped with an upper jaw and a lower jaw. Universal Tensile Testing Machine is a reliable piece of equipment which is widely used for checking tensile strength of a product/sample. One of the most common mechanical testing techniques used to determine tensile strength, this is a method wherein controlled tension is applied to a sample until it fully fails.

Thus, the material properties of the sample can be easily determined by this test. It involves measuring the force required to elongate a sample under test to breaking point. Using this test, manufacturers and quality managers are able to determine the core strength of their products.

Registered Design Patent No. 252611
Availability: In stock

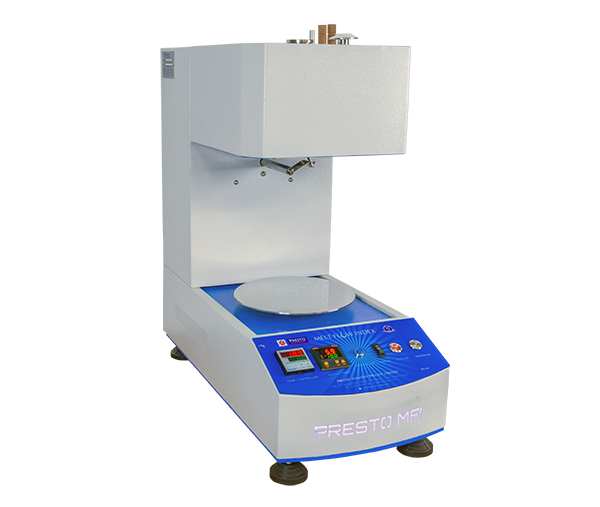

Melt Flow Index Tester - Next Generation

The Presto Melt Flow Index Tester - NXG Model is a reliable instrument used for evaluating and analyzing the flow properties of molten plastics or resins. The determination of the melt flow index of plastic materials is an important parameter in the evaluation of its quality.

Melt Flow Index Tester - Deluxe

Presto Melt Flow Index Tester is used for evaluating the flow properties of molten plastics or resins. The Melt flow Index of thermoplastic materials is defined as the rate of flow (in grams per ten minutes) of extrudates of molten resins through a jet of a particular length and diameter.

TP310 Portable Color Measurement

TP310 is a prominent color measurement instruments used in many mainstream industries which have been designed and manufactured by competent engineers and scientists of Presto Stantest. The instrument has many advantages of other international standard color measurement instruments.
