Complete Guide to BOD Incubator: Working Principle, Types, and Uses

The BOD incubator, an apparatus of consummate importance in arcane scientific disciplines, epitomizes exactitude in modulating environmental parameters. Its preeminence is most evident in microbiology, environmental toxicology, and cognate fields, where it facilitates esoteric assays demanding unerring conditions. This rigorous treatise elucidates the BOD incubator full form, dissects its working principle, delineates its typologies, enumerates its applications, and presents a BOD incubator diagram for conceptual rigor. For erudite practitioners of BOD incubator in microbiology, a profound grasp of its intricate functionalities is imperative.

What is a BOD Incubator? Understanding the Full Form

The appellation BOD incubator derives from Biochemical Oxygen Demand incubator, a meticulously engineered instrument designed to perpetuate a controlled milieu of temperature, humidity, and occasionally luminosity. Its cardinal purpose is to quantify the oxygen requisitioned by microbial entities during the aerobic catabolism of organic substrates, a metric pivotal to evaluating aquatic ecosystem vitality and environmental equilibrium. Unlike ubiquitous incubators, the BOD incubator is bespoke for cryophilic assays, ensuring minimal thermal perturbations and unparalleled precision.

Working Principle of a BOD Incubator

The BOD incubator working principle hinges on the perpetuation of a cryothermic, stable environment conducive to intricate biological processes. Its operational efficacy is underpinned by a confluence of sophisticated components:

1. Thermostatic Governance: A precision-calibrated thermostatic module orchestrates internal thermal conditions, typically spanning 5°C to 60°C, with a proclivity for cryothermic settings (circa 20°C–25°C) for BOD assays.
2. Cryogenic Apparatus: A compressor-driven refrigeration system ensures steadfast cooling, neutralizing thermal increments from exogenous or endogenous sources.
3. Calorific Mechanism: In frigid external ambients, an integrated heating element activates to sustain the stipulated thermal equilibrium.
4. Hygrostatic Regulation: Select configurations incorporate humidification systems to modulate moisture, indispensable for microbial ontogeny.
5. Thermally Hermetic Enclosure: The chamber’s insulated architecture precludes thermal oscillations, ensuring environmental constancy.
6. Aerodynamic Propagation: Integrated ventilatory systems propagate homogeneous dissemination of thermal and hygrostatic conditions.

This synergistic apparatus enables the BOD incubator to foster microbial proliferation or cellular cultures, and facilitating precise quantification of biochemical oxygen demand. In environmental assays, specimens are incubated at 20°C for a quinquennial duration to ascertain microbial oxygen consumption, a procedure termed the BOD assay.

Types of BOD Incubators

BOD incubators come in various configurations to suit different laboratory needs. The main types include:

1. Standard bod incubator: Designed for general BOD testing, these units offer temperature ranges from 5°C to 60°C and are widely used in water quality analysis.
2. Portable bod incubator: Compact and lightweight, these are ideal for fieldwork or small laboratories with limited space.
3. High Capacity BOD Incubator– Equipped with larger chambers, these are suitable for labs processing high sample volumes.
4. Multi-Chamber BOD Incubator– Features multiple independent chambers, allowing simultaneous incubation at different temperatures.

Each type is designed to meet specific requirements, ensuring flexibility and precision in various applications.

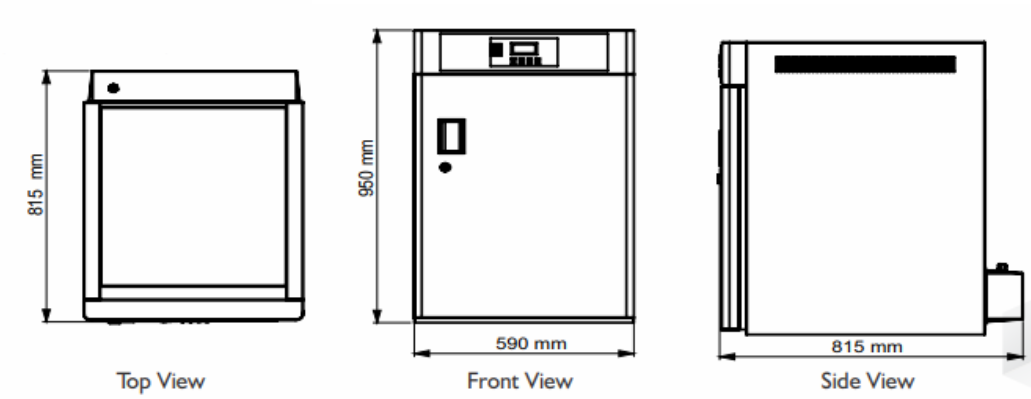

BOD Incubator Diagram: A Visual Overview

A typical BOD incubator diagram illustrates the following components:-

• Outer Cabinet– Made of stainless steel or mild steel for durability.
• Inner Chamber– Constructed from corrosion-resistant materials like stainless steel.
• Cooling Unit: Includes a compressor and evaporator for temperature control.
• Heating Element– Ensures precise heating when required.
• Control Panel– Houses digital or analog controls for temperature and timer settings.
• Shelves– Adjustable trays for sample placement.
• Door- Fitted with a gasket and glass window for insulation and observation.

This modular design ensures efficient operation and ease of maintenance.

Key Uses of BOD Incubators

The BOD incubator uses spans multiple disciplines, with its primary application being the measurement of Biochemical Oxygen Demand in water samples. Here are the major applications:

1. BOD Incubator in Microbiology
In microbiology, BOD incubators are used to cultivate microorganisms under controlled conditions. They are essential for:-

• Studying microbial growth and metabolism.
• Conducting antibiotic sensitivity tests.
• Incubating cultures for research in microbial ecology.

2. Environmental Science and Water Quality Testing
BOD incubators are critical for assessing water pollution levels by measuring the oxygen demand of organic matter in wastewater, sewage, or natural water bodies. The BOD5 test, conducted at 20°C for five days, is a standard procedure in environmental monitoring.

3. Pharmaceutical and Biotechnology Research
These incubators support research by providing stable conditions for:

• Stability testing of drugs and vaccines.
• Enzyme and protein studies.
• Cell culture experiments requiring low temperatures.

4. Food and Beverage Industry
BOD incubators are used to test the microbial load in food products, ensuring safety and quality. They also aid in shelf-life studies by simulating storage conditions.

5. Agricultural Research
In agriculture, BOD incubators facilitate:

• Seed germination studies under controlled temperatures.
• Soil microbiology research to assess nutrient cycling.

How to perform a standardised BOD test?

The standard value of Biochemical Oxygen Demand is determined at 20 degrees Celsius after 5 days of incubation. Notably, the high value of BOD (biochemical oxygen demand) indicates that the heavy growth of microorganisms has infested the water sample.

Standard like ISO 5815-1 complies with the testing. Standard mentions for a Tempering cabinet, room or incubator, capable of being maintained at (20 ± 1) °C and darkened.

   Calculation of result:

The formula to calculate the BOD of sample is the initial minus the final Dissolved oxygen. Check the final dissolved oxygen with the help of DO meter.

BOD = DO _initial- DO _final

Advantages of BOD Incubators

• Precision– Maintains consistent temperature and humidity for reliable results.
• Versatility: Suitable for a wide range of applications in microbiology, environmental science, and beyond.
• Energy Efficiency– Modern models are designed to minimize power consumption.
• User-Friendly– Digital controls and programmable settings simplify operation.

Table: Comparison of BOD Incubator Types

Type	Temperature Range	Capacity	Applications	Portability
Standard BOD Incubator	5°C to 60°C	Medium to Large	Water quality testing, microbiology	Low
Portable BOD Incubator	10°C to 50°C	Small	Fieldwork, small labs	High
High-Capacity BOD Incubator	5°C to 60°C	Very Large	High-volume testing	Low
Multi-Chamber BOD Incubator	5°C to 60°C	Medium to Large	Simultaneous multi-temperature testing	Low

Maintenance Tips for BOD Incubators

To ensure optimal performance, follow these maintenance practices:

• Regular Cleaning– Clean the inner chamber and shelves to prevent contamination.
• Calibration– Periodically calibrate temperature and humidity sensors.
• Inspection– Check the refrigeration system and gaskets for wear and tear.
• Ventilation– Ensure proper airflow around the incubator to prevent overheating.

FAQs About BOD Incubators

Q1. What constitutes the full form of BOD in BOD incubator?
BOD denotes Biochemical Oxygen Demand, encapsulating microbial oxygen consumption during organic decomposition.
Q2. What thermal spectrum does a BOD incubator encompass?
Typically, BOD incubators sustain temperatures from 5°C to 60°C, with 20°C as the canonical BOD assay benchmark.
Q3. How does a BOD incubator diverge from a generic incubator?
A BOD incubator is engineered for cryophilic conditions (e.g., 20°C for BOD assays) with integrated refrigeration, contrasting with generic incubators’ emphasis on elevated thermal ranges.
Q4. Can a BOD incubator serve non-BOD assay purposes?
Indeed, its versatility accommodates microbial culturing, pharmacological stability assays, alimentary safety analyses, and agronomic germination studies.

Why Choose Presto Stantest BOD Incubators?

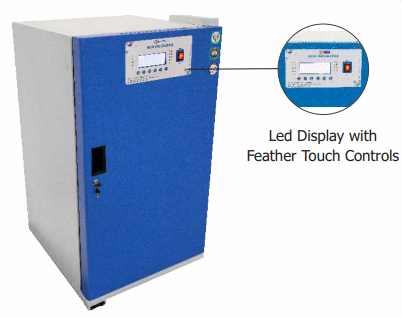

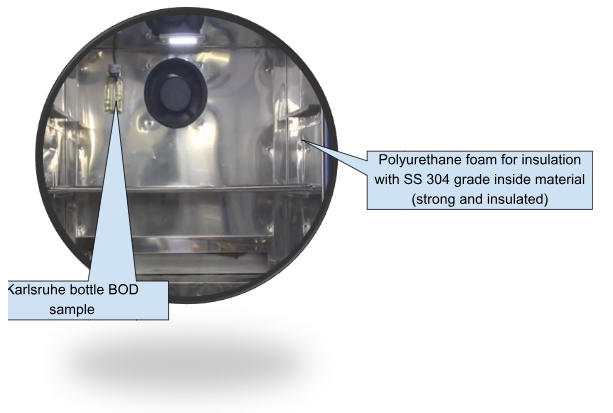

Presto Stantest crafts BOD incubators of unmatched precision, epitomized by the Prima Series. Featuring a graphical interface, RTD PT-100 sensors, and PID controllers, they ensure ±0.5°C accuracy. High-grade glass wool insulation optimizes energy efficiency, while 304-grade stainless steel chambers ensure durability. Ergonomic feather-touch controls, automated heat-cool cycles, and door-activated illumination enhance usability. Available in 110–255-liter capacities, they suit diverse needs. Password protection and calibration ensure security. ISO 9001:2008 certified, Presto serves global giants like Honda, exporting to 34 countries. Comprehensive support, including installation and maintenance, guarantees reliability for rigorous scientific inquiry.

Key Takeaways from BOD Incubator

The BOD incubator stands as a paragon of scientific precision, proffering unparalleled adaptability across microbiology, environmental toxicology, and allied disciplines. Mastery of its full form, working principle, typologies, and applications empowers savants to exploit its capabilities for rigorous inquiry. The BOD incubator in microbiology and its pivotal role in aquatic quality assessment underscore its indispensability. Through meticulous custodial regimens, this apparatus ensures unwavering result fidelity, cementing its status as an inalienable linchpin in scientific exploration.
