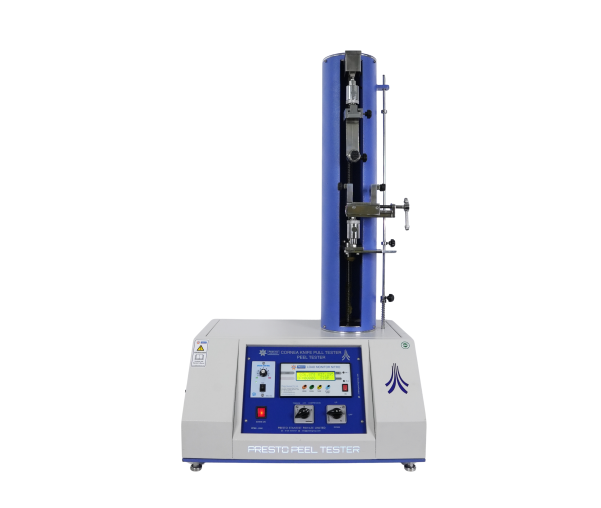

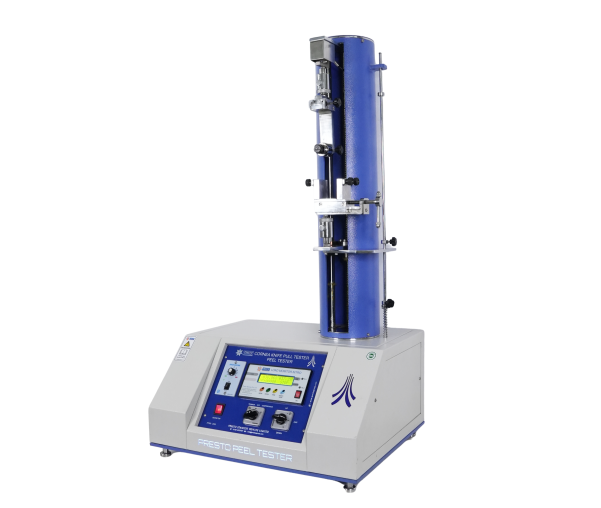

Cornea Knife Pull Tester Cum Pouch Peel Adhesion Tester

Cornea Knife Pull Tester Cum Pouch Peel Adhesion Tester is a consistent tool to quantify the permanence of adhesion or peel ability of self-adhesive pressure sensitive materials.

Rating

5/5

Model CCPT - 100

Video

PRESTO Peel Adhesion Tester is manufactured under test standard ASTM D 903, ASTM D3330 , ASTM F88 and ASTM F904.

Microprocessor based display for accurate test results
Display for Peel Adhesive strength of test specimen
Highly accurate test results under force.
Strong gripping clamps to perform Peel test at 180 ? .
Bright LED display
Inbuilt calibration facility
Feather touch controls

Peel Strength Tester reveals the peeling strength force required to remove pressure sensitive coated material, which has been applied to standard test specimen under specified conditions from the plate at a specified angle and speed.

Model No.: CCPT-100
Product Type: Cornea Knife Pull Tester Cum Pouch Peel Adhesion Tester
Testing Standard: ASTM D903
Load Cell Capacity: 50 kgf
Display: 7-Segment LED Digital Display
Display Type: Microprocessor-Based Digital Display
Accuracy: ±2% of Full Scale
Resolution (Least Count): 0.010 kgf
Test Speed: 100 mm/min ±5%
Optional Speed Range: 10–95 mm/min (VFD Drive – Optional)
Grip Separation: Minimum 25 mm, Maximum 300 mm
Grip Type: Heavy-Duty Gripping Clamps
Test Angle: 180° Peel Test
Memory Function: Stores Maximum Test Value
Safety Features: Safety Limit Switches
Power Supply: 220 V AC, Single Phase, 50 Hz
Machine Construction: Heavy-Duty Mild Steel
Surface Finish: Powder-Coated Grey & Blue with Bright Chrome/Zinc-Plated Components
Machine Dimensions (L × W × H): 600 × 500 × 1120 mm

The Peel Strength tester measures the peeling strength required to peel of the laminates.

Optional Features :
• VFD drive multi-speed facility also available (10-95 mm / min.)

Features & Highlights

Microprocessor-controlled digital system for precise and repeatable peel strength measurements.
Designed to perform 180° peel adhesion tests in accordance with ASTM D903.
High-precision 50 kgf load cell ensures reliable force measurement.
Bright LED digital display for clear and easy result monitoring.
Heavy-duty gripping clamps securely hold the specimen during testing.
Built-in memory automatically stores the maximum test value.
Inbuilt calibration facility for maintaining measurement accuracy.
Feather-touch control panel for simple and user-friendly operation.
Safety limit switches protect the machine during testing.
Robust mild steel construction with corrosion-resistant powder-coated finish.
Optional VFD-controlled variable speed drive for application-specific testing requirements.
Suitable for testing peel adhesion strength of pressure-sensitive adhesives, laminated films, medical pouches, packaging materials, tapes, labels, and flexible laminates.
Ideal for quality control laboratories, R&D centers, packaging manufacturers, medical device manufacturers, and pharmaceutical industries.
