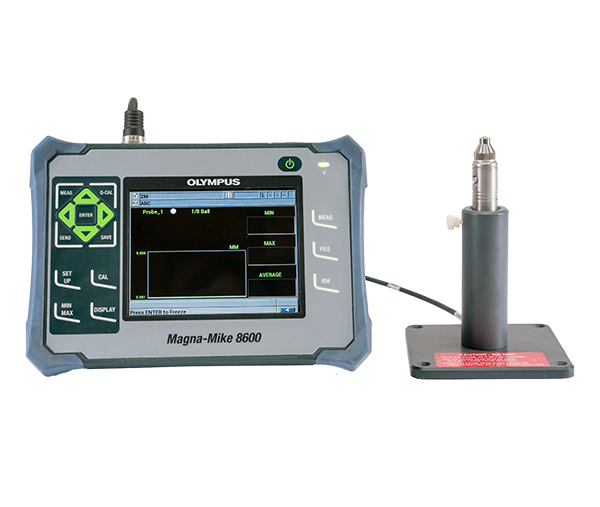

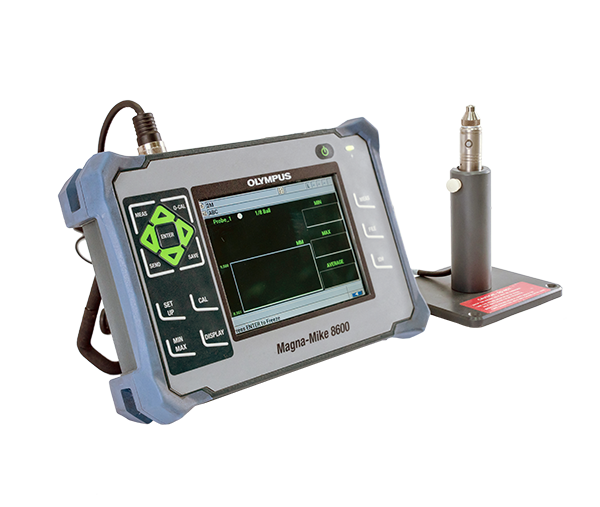

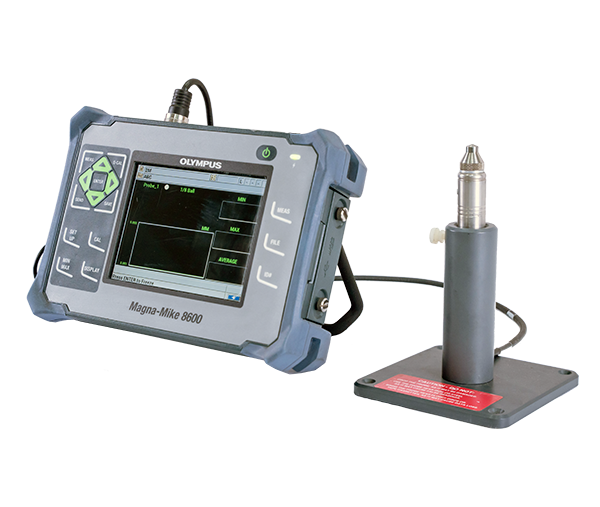

The Non-destructive thickness gauge is used to measure the wall thickness of non-ferrous objects like wood, glass, plastic etc. The gauge works on the testing principle of a hall-effect sensor. It is designed by Olympus which is a leading brand. Get Wall thickness Gauge – Magna Mike 8600 in Ahmedabad, Gujarat
Model Magna-Mike 8600
The thickness gauging is a required step in every industry. Inspecting wall thickness of material, parts, components, or the final products assures that the quality standard is as per the industry set criteria and is matching the customer demands. The destructive way of testing the thickness is way too traditional and is not preferred much. The Magnamike 8600 uses a non-destructive method of measuring the wall thickness. It has a Hall-effect sensor on the probe tip and has a range of the target. The target is made up of ferrous and is inserted inside the specimen. The probe tip is placed on the other side of the wall touching the target. The tip and the target are joined with strong magnetic induction. Space which is left between the target and the probe tip is the recorded wall thickness. The machine is based upon a smart advanced software. Get Wall thickness Gauge – Magna Mike 8600 in Ahmedabad and also in other regions of Nation.
- Ion battery
- Keypad – Japanese, English, International, Chinese
- Languages Supported – English, Spanish, French, German, Japanese, Chinese, Portuguese, Swedish, Norwegian, Dutch, Polish, Russian, Hungarian, Czech, Italian
- Data Storage – Onboard and removable 2 GB Micro SD card
- Battery life (Optional) – 12 h to 13 h (lithium-ion)
- Power requirements – AC Mains: 100 V AC to120 V AC, 200 V AC to 240 VAC
- Display type – Full VGA (640 x 480 pixels) transflective color LCD
- Display dimensions (W x H, Diag.) – 117 mm x 89 mm, 146 mm (4.62 in. x 3.49 in., 5.76 in.)
- Min/Max capture mode – Captured at 60 Hz measurement rate
- Display update rate – 4, 8, 16 and 20 Hz
- Alarm – High and Low alarms
- Resolution – 1 mm (0.01 in.), 0.01 mm (0.001 in.), 0.001 mm (0.0001 in.) (Depending on thickness range)
- Data logger – Internal file-based alphanumeric data logger
- Maximum Thickness range: Up to 25.4mm (1.00 in.)
- Minimum Thickness range: 0.001mm (0.0001 in.)
- Measurement based on probe’s Hall Effect sensor
- Digital Display readout
- Repeatability of test measurements of test sample
- Measurements through Target Ball or wire or Disk using Magnetic field
- Expandable Thickness range up to 25.4mm (1.00 in.)
- Replaceable Wear Caps – Standard and Chisel type
- Expanded target selection – 3/16 and ¼ in. magnetic target balls or Wire target
- Larger Color VGA display
- Fast measurement update rate 60Hz
- Programmable Instrument lock with password
- RS-232/USB/VGA output Communication Modes
- Direct Interface to Excel spreadsheet
- WINXL interface program
- Generate on board reports
- Designed with IP67 rating
- Expanded alphanumeric data logger
- Save and recall option for stored calibration file
- Bench style case with improved gage stand
- Low and high reading Alarm
- Ability to export file to MicroSD card in .txt and CSV format
- Strip Chart view
- Inbuilt Calibration Facility
- Selectable measurement units – mm or inch
- Ability to store Thickness readings in one of standard file formats – Incremental, Sequential, Sequential with Custom point, 2-D grid
- Other Probes designs – Straight and Right Angles available on request
- Accessory Kit – Disk Kit, Wire Target Kit, Standard up to 9.1 mm (0.360 inches), Extended range up to 25.4 mm (1 inch)
- Chart View – Strip Chart Type View
How it Works
