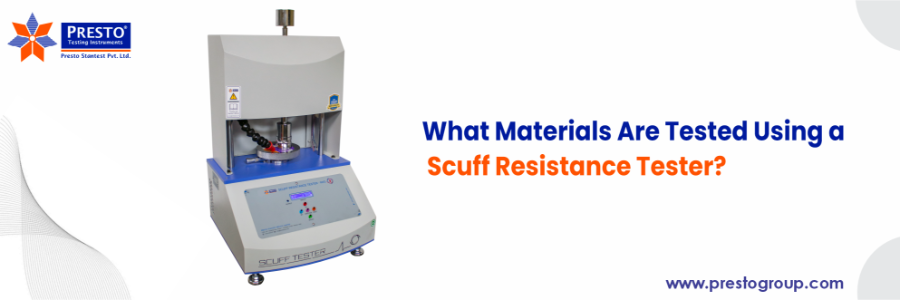

What Materials Are Tested Using a Scuff Resistance Tester?

Overview

In packaging and print-focused businesses, a Scuff Resistance Tester is a small lab asset that quietly protects brand image, compliance, and customer trust. It measures how well printed or coated surfaces resist rubbing, abrasion, and color transfer that occur during transport, storage, and shelf display.

Investors who understand which materials are tested, and why, can better judge the strength of a converter’s or brand owner’s quality control system.

What is a Scuff Resistance Tester?

A Scuff Resistance Tester is a surface print quality testing machine designed to rub two printed or coated surfaces against each other under a fixed load, speed, and number of cycles. The operator compares the samples before and after rubbing to check for ink fading, color transfer, or surface damage.

Most lab models hold circular specimens and rotate them against each other at around 60 rpm under a pressure typically in the 2 to 4 psi range. Advanced versions follow standards such as ASTM F2497 and BS 3110 so that test data is repeatable and auditable for large customers and regulators.

For multi-site packaging operations, a portable Scuff Tester allows quick checks at plants, print shops, or even at a supplier’s site before accepting a shipment of printed materials.

Key Materials Tested Using a Scuff Resistance Tester

The scuff resistance test method is used mainly on printed packaging and label stocks where information and graphics must remain legible throughout the product life. The list below groups the materials most often tested on a Scuff Resistance Tester.

Common Materials and Applications

Material type	Typical applications	What the test evaluates
Printed paper labels	FMCG, food jars, beverage bottles	Ink adhesion, legibility of text and barcodes after rubbing
Self adhesive labels and stickers	Pharma, cosmetics, logistics	Durability of variable data like batch codes and expiry dates under handling
Folding cartons and mono cartons	Consumer goods, personal care	Resistance of printed artwork and branding on carton surfaces during packing and shipping
Corrugated boxes and outer cartons	E-commerce, bulk shipping	Resistance of printed logos and handling marks to abrasion in transit and warehousing
Flexible packaging films (BOPP, PET, PE)	Snacks, confectionery, frozen foods	Stability of inks and coatings on printed films under film to film contact
Laminated labels and foils	High value foods, beverages, personal care	Integrity of laminate structure and printed layers during transport and shelf life
Coated and uncoated paper or board	Commercial printing, premium cartons	Surface strength of coatings and varnishes when exposed to repeated rubbing
Shrink sleeves and wraparound labels	Beverages, household cleaners	Resistance of graphics on curved containers where labels rub during packing and shipping
Inkjet media and specialty substrates	Digital labels, short run packaging	Abrasion and scuff resistance of unprinted or pre coated media as per ASTM F2497

In practice, any flat-printed surface that will come into contact with another surface during transit, storage, or retail display is a candidate for scuff testing.

Scuff Resistance Tester Working Principle

The scuff resistance test method places two samples face to face, usually cut from the same printed web or from a printed sample and a reference material. They are clamped in the Scuff testing machine, brought into contact under a specified pressure, and rotated in opposite directions for a fixed number of cycles.

A typical test sequence includes:

• Setting the load or pressure as well as how many rub cycles on the countertop.
• Installing the printed specimens on the lower and upper test discs.
• Start the test and allow the discs to rub against one another at the specified speed.
• Comparing the scratched area with an unaffected area visually or with a grayscale to evaluate scuffing.

Standards such as ASTM F2497 describe in detail how to control parameters like speed, load, and pad material so that test data is consistent across labs.

Typical Scuff Resistance Tester Uses across Industries

The most important scuff resistance tester uses are linked to the protection of brand value and legal information on packs. Key sectors include:

Industry	Purpose for Scuff Resistance Testing
FMCG and food	Ensure labels and flexible packs remain readable.
Pharmaceutical and healthcare	Protect vital dates (batch, expiry) from becoming illegible.
Cosmetics and personal care	Maintain the premium look of high gloss cartons and labels.
Printing and converting	Qualify new inks, coatings, and substrates.
E-commerce and logistics	Check durability of shipping boxes and tracking labels.

Price and Selection Factors for Investors

There is no static Scuff resistance tester machine price, because it varies with build quality, level of automation, and compliance with global standards. Instead of focusing solely on initial cost, investors often consider lifecycle value and how the instrument reduces print failures and rework.

Key factors while comparing options from any scuff tester manufacturer include:

• Compliance with standards such as ASTM F2497 and BS 3110 for customer audits.
• Robust construction and stable speed control for repeatable results across shifts and sites.
• Digital preset counters, timers, and user-friendly controls that limit operator error.
• Availability of a portable Scuff Tester variant if multiple plants or contract printers need to be audited.
• Technical support, calibration services, and local spare parts from the scuff tester manufacturer.

When these points are met, a higher Scuff resistance tester machine price is usually justified by fewer rejected batches and stronger customer confidence in the converter’s quality system.

Why Portable and Lab Scuff Testers Appeal to Investors

Each key plant has a benchtop Scuff Resistance Tester for printed lots before they enter filling and packing lines. A portable Scuff Tester extends that task to supplier audits, incoming inspections, and on-the-spot investigations when complaints arise.

They all together provide data about how real labels, cartons, and films behave under rubbing and abrasion. The data support robust supply contracts with clearer quality specifications and longer-term protection of brand equity.

Practical Steps to Uplift Your Packaging Quality

Investors who back businesses that own a Scuff Resistance Tester or Scuff testing machine are effectively backing stronger packaging reliability and lower risk.

Practical next steps include:

• Reviewing whether portfolio companies test all critical label, carton, and film SKUs using a defined scuff resistance test method.
• Asking management which materials are tested today and how often, especially for pharma, FMCG, and export packs.
• Comparing competing plants on the adoption of modern instruments from a reputable scuff tester manufacturer.
• Discussing the budget not just for instruments but also for operator training and periodic calibration.

Contact Presto Group Today!

By treating scuff testing as a strategic quality tool rather than a narrow lab routine, investors can support packaging operations that protect brands, reduce waste, and earn long-term customer trust. Get in touch with us to learn more.
