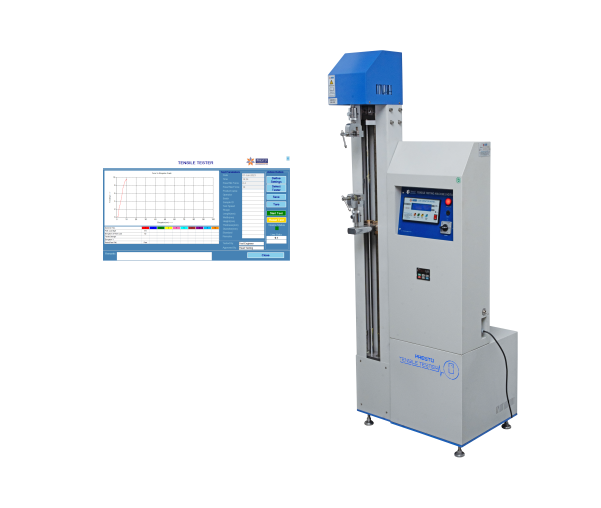

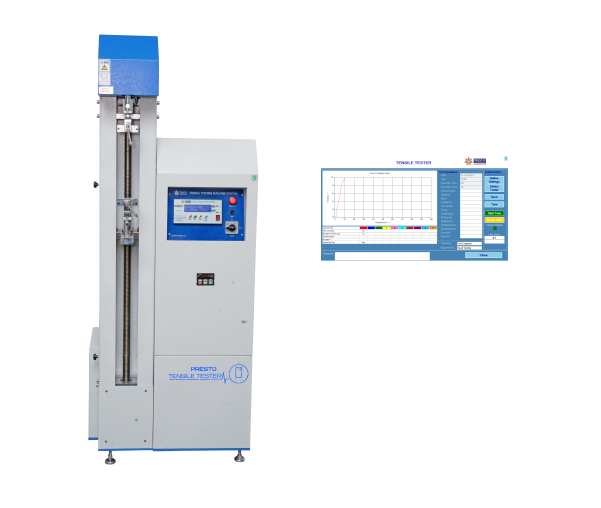

Tensile Testing Machine Digital Cum Computerised Win Test Model
Rating
4.3/5Model TTM-S (as per capacity)
Tensile strength is the stress at which a material breaks or permanently deforms. PRESTO Digital Tensile Tester is a state of the art, highly versatile equipment for checking the breaking strength of packaging related raw materials and finished products. It has a single column vertical movement on low friction ball screws.
This digital cum computerized model of tensile strength tester comes with a digital display and computer display that makes it easy for manufacturers to conduct tensile strength tests on the materials. The machine operates by clamping the material sample in between two grips and then applying a tensile force to the sample until it breaks. The digital control system and Win-Test software measure the amount of force applied, as well as the elongation or deformation of the sample, allowing for the calculation of various mechanical properties.
One of the standout features of this tester is its Graph Test Report, which displays force versus time. This allows users to easily monitor the strength of materials over a period of time, making it easier to identify any weaknesses or defects.
Users can also email reports directly from the tester, as well as tabulate data in Excel for further analysis. Presto is a leading tensile strength tester manufacturer and offers this testing equipment at the best price.
- Display: Computer Display and Digital Display both.
- Accuracy: ±2% of Load Cell Capacity.(On Full Scale)
- Load Sensor: Universal ‘S’ Type load sensor.
- Travel length of the grips: 25mm - 700mm.
- Motor: 1/5 HP, - 1440 rpm, 1 phase power supply.
- Optional:
- Fully Computerized Model (Zeus Ultimo) is also available
- Speed of AC drive : 50 to 500 mm/minute
- (Computer & Printer are not provided with the instrument)
- Higher capacity with Twin column structure also available
- The Graph Test Report is Force Vs Time .
- Report can be saved on desktop
- 10 Sample Reports can be seen on one Report
- Report can be E-mailed
- Data can be tabulated in Excel
- Your company logo & address can be placed in the Test Report
- Report has description of Product name , Operator , Batch , Shape , Standard ,Date , Time & Remarks
- Pass/Fail criteria can be programmed
- Microprocessor based digital display
- Bright LED display
- Feather touch controls
Reviews
Customers Reviews
What our customers say about us is important to us.
A: To know the price, you can reach the team by email or speak directly on +91 9210903903 for quick guidance.
Q: Is Presto a trusted supplier of a tensile testing machine digital cum computerized?
A: Yes, Presto supplies these machines to testing labs and industries that need steady and repeatable strength testing.
Q: What support does Presto offer after purchase?
A: After buying the machine, customers can connect with the Presto team by phone or email for service guidance and technical help.
Q: Are grippers included with this machine?
A: Different grippers for various test materials are available and can be selected as optional accessories.
Q: How does this machine display and store test results?
A: Test values are shown on the digital screen and can also be saved for record keeping and report use through the computerized system.
Q: How does the PRESTO digital tensile Tester help in checking the tensile strength of materials?
A: The machine holds the sample between two grips and pulls it steadily until it breaks, while the screen shows force and stretch values along with a clear graph that helps spot weak points easily.
How it Works
Tensile Testing Machine Digital Cum Computerised Win Test Model
For More details & Information
Please fill this form
Trusted Partners
Trusting by the best, serving the best
Related Products
Tensile Testing Machine Digital
The Tensile testing Machine is highly recommended for evaluating the tensile strength of products and materials. The equipment is based on the Constant Rate of Traverse (CRT) principle. It is equipped with an upper jaw and a lower jaw. Universal Tensile Testing Machine is a reliable piece of equipment which is widely used for checking tensile strength of a product/sample. One of the most common mechanical testing techniques used to determine tensile strength, this is a method wherein controlled tension is applied to a sample until it fully fails.
Thus, the material properties of the sample can be easily determined by this test. It involves measuring the force required to elongate a sample under test to breaking point. Using this test, manufacturers and quality managers are able to determine the core strength of their products.
Registered Design Patent No. 252611
Availability: In stock
