Box Compression Tester is a consistent tool to indicate the Compression strength of cardboard boxes so that it does not get deformed or crushed when stacked one above the other during storage or transit. Cardboard boxes are commonly stacked one on top of the other, during warehousing and storage. So, to ensure that they do not collapse during this, it is necessary to measure their box compression strength. It is based on the principle of measuring the maximum load that the material can withstand without breaking. This process is performed by applying a gradually increasing compression force to a sample until it fails using Box Compression Tester.
Using the equipment, a force-deformation curve can be obtained. This curve helps us evaluate the resistance of a package. It is a reliable equipment that provides accurate information regarding the compressive strength and durability of the package. It enables manufacturers to choose a more resistant packaging and to ensure the contents of the package don’t get damaged during stacking or transit.
Thus, corrugated boxes/cartons/paper packaging can be tested using Box Compression tester. It is widely used to determine compressive resistance, deformation and stacking capability of cartons and corrugated boxes.
Registered Design Patent No. 279106
In stock
This equipment is designed to measure ability of the Mini cartons or printed Duplex cartons to resist external compression loads during transit and storage It is important to evaluate the Compression Strength of the Box in order to make sure that the box will be able to resist the anticipated compressive forces and to determine the load that the box will be able to withstand during transit and storage.
The cardboard strength and construction directly impact the amount of weight a box can carry. A box too weak might puncture or collapse. On the other hand, an excessive box means you pay extra for material and add to environmental wastage.
PRESTO Mini Box Compression Tester is manufactured under various Test Standards ASTM D642, ASTM D4169, TAPPI T804,
ISO 12048, and JIS Z0212
Registered Design No. 341519-002
The force required for bursting or complete rupture of the board is measured through a Digital Indicator. The bursting strength defines the material's quality as compared to the others. Bursting Strength Tester Genie 2.0 provides a hydraulic pressure on the sample.
In the Presto Bursting Strength Tester, a hydraulic pressure is applied on the sample under test, using a neoprene diaphragm, on a circular area. So, a circular piece of the sample of the corrugated board is used for the test. A digital indicator with a range of 0 to 40 kg/ square cm, is utilized for the equipment.
Registered Design Patent No. 279109
Availability: In stock
Bursting Strength Tester - Digital Pneumatic with Printer is the high-end model for estimating bursting strength of the materials like paper, corrugated fibre board, cloth, foil, etc. It is equipped with a thermal printer to print the observation immediately for future use. The machine is designed with pneumatic clamping to avoid any slippage of the sample.
The coefficient of Friction Tester - Digital Cum Computerised is a consistent tool to indicate the starting and sliding friction of plastic films and sheets when sliding over itself or other substance at specified test condition.
Coefficient of Friction Tester is a consistent tool to indicate the starting and sliding friction of plastic films and sheets when sliding over itself or other substance at specified test condition.
Registered Design Patent No. 341519-003
The Drop Tester (As per IS:7028 Pt IV) is a useful equipment for ascertaining the transport worthiness of corrugated & solid fiber boxes and shipping containers. It has provision with angular drop arrangement to help accurately ascertain the transport worthiness of the package from all angles.
In stock
Drop tester is the perfect machine to test the drop strength of the corrugated cartons. It is equipped with a wired remote-control mechanism to eliminate the human interference. The test specimen is observed visually after it is made to fall from a certain height. The instrument work with pneumatic application and used in almost every industry that deals with corrugated cartons.
Heat Sealer is a consistent tool used to perform sealing on flexible packaging products and other thermoplastic materials using pressure and heat by maintaining high temperatures. PRESTO Heat Sealer is manufactured under various Test Standards such as ASTM F 2029.
Presto Adhesion Strength Tester is used to quantify the permanence of adhesion or peel ability of self- adhesive pressure sensitive materials. Peel adhesion is defined as the force required for removing a pressure sensitive coated material.
Peel Bond Strength Digital Tester is a standardized test machine, which is widely used to conduct accurate peel/seal strength test for adhesive materials. Suitable for measuring the stability of adhesives like tape or glue, it is a reliable quality control equipment. It is used for checking the ability of the sample to get peeled off from a surface. The testing equipment is designed and manufactured according to ASTM D903 standard.
Presto Peel Strength Tester has a display screen which is based on a hi-tech microprocessor that converts force applied into numeric values. So, the peel adhesive strength value that is measured can be directly viewed on the screen. Application force is controlled uniformly; this is done in order to ensure equal distribution of pressure, all over the test sample.
Registered Design No. 361206-003
Availability: In stock
Peel Adhesion/Bond/Seal Strength Tester is a consistent tool to quantify the permanence of adhesion or peel ability of a self-adhesive pressure sensitive materials. Used for checking the Peel, Adhesion, Bond, Seal Strength testing for Plastic Films and Foil.
.jpg&w=1200&q=75)
A color spectrophotometer is an instrument designed for physical sample analysis via full spectrum color measurement.Color spectrophotometers offer a higher level of flexibility and versatility than colorimeters due in part to the fact that they offer multiple illuminant/observer combinations and can operate in multiple geometric arrangements.

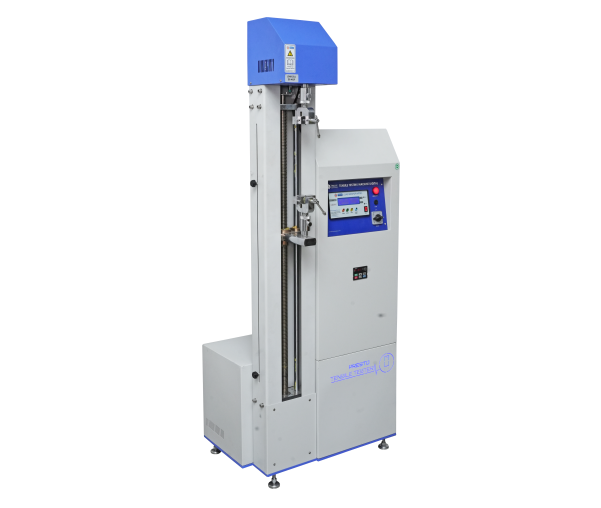

The Tensile testing Machine is highly recommended for evaluating the tensile strength of products and materials. The equipment is based on the Constant Rate of Traverse (CRT) principle. It is equipped with an upper jaw and a lower jaw. Universal Tensile Testing Machine is a reliable piece of equipment which is widely used for checking tensile strength of a product/sample. One of the most common mechanical testing techniques used to determine tensile strength, this is a method wherein controlled tension is applied to a sample until it fully fails.
Thus, the material properties of the sample can be easily determined by this test. It involves measuring the force required to elongate a sample under test to breaking point. Using this test, manufacturers and quality managers are able to determine the core strength of their products.
Registered Design Patent No. 252611
Availability: In stock
Top - load testing (also known as 'column-crush' and 'axial force resistance') is performed mainly on blow moulded, the
reformed or injection moulded plastic containers. It measures the compressive strength of such containers to ensure they do not
deform or break when subjected to axial forces during the processes of filling, closure, storage and transport.
Registered Design Patent No. 341519-004
.jpg&w=1200&q=75)
A portable spectrophotometer is a consistent tool useful for performing several measurements on a variety of samples of colors such as white & black, dark & light and several other color boards. They are primarily used to reflect the measurements and best suited for the sophisticated color analysis such as the problem of metamerism.
.jpg&w=1200&q=75)
The Farbung TP110 is a highly used and preferred color measurement instruments in many industries. There are several new features that are added to the product by the highly competent team of engineers and scientists of Presto Stantest.
.jpg&w=1200&q=75)
TP310 is a prominent color measurement instruments used in many mainstream industries which have been designed and manufactured by competent engineers and scientists of Presto Stantest. The instrument has many advantages of other international standard color measurement instruments.
%20l%20600.png&w=1200&q=75)
Presto Vacuum leak detection system is now available in Prima series. With HMI Touch Screen Display and fully automatic controls, one can ensure accuracy with repeatability and take data acquisition for the various tests. The Vacuum Tank is specially designed to conduct leak integrity testing of large sized packages in any of the testing mediums.
Presto Vacuum leak detection system is now available in Prima series. With HMI Touch Screen Display and fully automatic controls one can ensure accuracy with repeatability and take data acquisition for the various tests. It is capable of testing both Bottles/containers and other packages. The testing medium can be air. It is the best instrument for accurate and quick testing of small to medium sized containers or packages.
Registered Design Patent No. 361206-002
Vibration simulation is an efficient and cost-effective way of determining damage caused by the repetitive movement in the vehicles. In just a few hours we can pinpoint potential damage areas in your package or product caused by vibration.
Our Vibration Table is customizable. You can get a Digital, Computerised, or touchscreen Vibration table according to your sample testing needs! Be it swivel, synchronous, or asynchronous, test your sample to its fullest to ensure durability, long life, and zero rejections.
Availability: In stock
Magnamike, manufactured by Olympus, is a premium-quality device renowned for its excellence in conducting wall thickness gauge testing. Offering a non-destructive testing method, this instrument is ideal for measuring the wall thickness of PET bottles. Presto Stantest serves as an authorized dealer for this device.
In stock
