Application / Mono Carton and Paper Board Testing Instruments

Mono Carton and Paper Board Testing Instruments

Our Valued Clients

Box Compression Tester Digital

Box Compression Tester is a consistent tool to indicate the Compression strength of cardboard boxes so that it does not get deformed or crushed when stacked one above the other during storage or transit. Cardboard boxes are commonly stacked one on top of the other, during warehousing and storage. So, to ensure that they do not collapse during this, it is necessary to measure their box compression strength. It is based on the principle of measuring the maximum load that the material can withstand without breaking. This process is performed by applying a gradually increasing compression force to a sample until it fails using Box Compression Tester.

Using the equipment, a force-deformation curve can be obtained. This curve helps us evaluate the resistance of a package. It is a reliable equipment that provides accurate information regarding the compressive strength and durability of the package. It enables manufacturers to choose a more resistant packaging and to ensure the contents of the package don’t get damaged during stacking or transit.

Thus, corrugated boxes/cartons/paper packaging can be tested using Box Compression tester. It is widely used to determine compressive resistance, deformation and stacking capability of cartons and corrugated boxes.
Registered Design Patent No. 279106
In stock

Box Compression Tester Digital Mini - Patent No. 341519-002

This equipment is designed to measure ability of the Mini cartons or printed Duplex cartons to resist external compression loads during transit and storage It is important to evaluate the Compression Strength of the Box in order to make sure that the box will be able to resist the anticipated compressive forces and to determine the load that the box will be able to withstand during transit and storage. The cardboard strength and construction directly impact the amount of weight a box can carry. A box too weak might puncture or collapse. On the other hand, an excessive box means you pay extra for material and add to environmental wastage. PRESTO Mini Box Compression Tester is manufactured under various Test Standards ASTM D642, ASTM D4169, TAPPI T804, ISO 12048, and JIS Z0212
Registered Design No. 341519-002

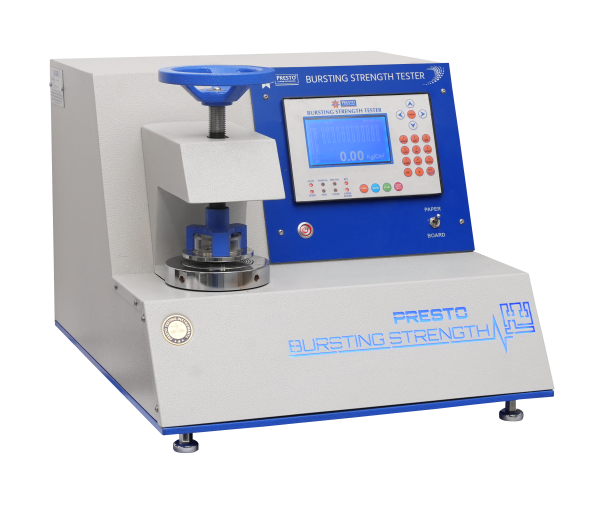

Burst Genie 4.0 Digital

The force required for bursting or complete rupture of the board is measured through a Digital Indicator. The bursting strength defines the material's quality as compared to the others. Bursting Strength Tester Genie 4.0 provides a hydraulic pressure on the sample. In the Presto Bursting Strength Tester, a hydraulic pressure is applied on the sample under test, using a neoprene diaphragm, on a circular area. So, a circular piece of the sample of the corrugated board is used for the test. Widely used in the paper and packaging industries, this Digital Bursting Strength Tester conforms to major global testing standards including ASTM D3786-01, ASTM D3786-80a, IS 1060 Part-1 1987, ASTM D774, ISO 2758, and ISO 2759. Compliance with these standards makes it a reliable choice for manufacturers who need precise quality control and international acceptance of their test results. Its dual test modes for paper and board, along with automatic calculation of bursting factor and pass/fail criteria, make it one of the most advanced solutions for packaging material testing.

Crush /RCT/ECT /FCT Digital Model

The Presto Crush Tester – Digital Model is a high-precision instrument designed to measure the crushing strength of paper, corrugated boards, and related packaging materials. This versatile model performs multiple standard tests including Ring Crush Test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), and Corrugated Crush Test (CCT) — making it an essential quality control tool for paper and packaging industries. Checks the compression sustaining strength specifying the plies and flutes quality.

Gloss Meter Tri-angle

The gloss meter is available in different geometries to measure the specular reflection gloss of a surface or a material. The Gloss Meter Tri-angle is used to determine the gloss on a surface and measures the amount of reflected light.

GSM Balance - Digital Model

The Digital GSM balance is one of the highly effective and accurate laboratory testing equipment that is used to measure the weight of materials including paper, paperboard, solid fiberboards and corrugated boxes. This paper gsm checking machine ensures that users can get precise testing results for testing the grammage of products.

GSM Round Cutter - Dx

PRESTO Round Cutter for Grammage GSM Round cutter is useful for precise circular cutting to check the grammage of samples. The sample cutter cuts out a circular specimen of 100? Which is exactly 1 / 100th of a square meter, rapidly and accurately.

Handheld Moisture Meter - PTM 2020

Presto Moisture Meter PTM-2020 is the latest high sensitivity hand held moisture meter developed specially for the packaging industry. The portable moisture meter is used for measuring the moisture content of paper, corrugated sheets, cardboard stocks, kraft paper, paper tubes & paper bales,quickly and effectively.

Moisture Analyzer-FB-MA110-1

The Moisture Analyzer FB-MA110-1 is engineered to deliver faster, more accurate, and more efficient moisture measurements—helping quality teams test more samples in less time. With its advanced halogen heating system and intuitive user interface, the FB-MA110-1 offers the perfect balance of performance and ease of use for modern laboratories and production environments.

TheFB-MA110-1 halogen heating system distributes heat uniformly over the sample and speeds up the drying process, delivering fast and precise measurements.

Paper Tensile Testing Machine

Presto offers and supplies the Paper Tensile Testing Machine, which is highly significant to test the breaking strength of packaging related finished products and raw materials..

Scuff Resistance Tester

The word scuffing means scraping the surface of a printed substrate or paper material against another object. It is a major property which is used to measure the quality of the print. Presto Stantest..

Scuff Resistance Tester - NXG - Model No. PSR-295

Scuff Resistance Tester is a unique test instrument to determine the color transfer from printed or coated material against rubbing. Scuff resistance testing can reveal how well a material will hold up against abrasion, rubbing, and scratching. This information is critical in industries such as packaging and printing where there is a vast use of labels and other printed materials.

Scuff Resistance Tester - PRIMA SERIES- Model No. PSR - 292 (Prima)

Scuff testing of labels and other printed materials is used to determine their resistance to abrasion, scratching, or rubbing. This type of testing is essential for ensuring that the labels and printed materials can withstand handling and transportation without losing their legibility, durability, or aesthetic appeal.

Spectrophotometer TP 3100

A color spectrophotometer is an instrument designed for physical sample analysis via full spectrum color measurement.Color spectrophotometers offer a higher level of flexibility and versatility than colorimeters due in part to the fact that they offer multiple illuminant/observer combinations and can operate in multiple geometric arrangements.

Tensile Testing Machine Digital

A Tensile Testing Machine is a precision laboratory instrument designed to evaluate the tensile strength, elongation, and mechanical properties of materials under controlled testing conditions.
It is highly recommended for evaluating the tensile strength of products and materials. The equipment is based on the Constant Rate of Traverse (CRT) principle. It is equipped with an upper jaw and a lower jaw. Universal Tensile Testing Machine is a reliable piece of equipment which is widely used for checking tensile strength of a product/sample. One of the most common mechanical testing techniques used to determine tensile strength, this is a method wherein controlled tension is applied to a sample until it fully fails.
Thus, the material properties of the sample can be easily determined by this test. It involves measuring the force required to elongate a sample under test to breaking point. Using this test, manufacturers and quality managers are able to determine the core strength of their products.

Registered Design Patent No. 252611
Availability: In stock

Mono Carton and Paper Board Testing Instruments

Box Compression Tester Digital

Box Compression Tester Digital Mini - Patent No. 341519-002

Burst Genie 4.0 Digital

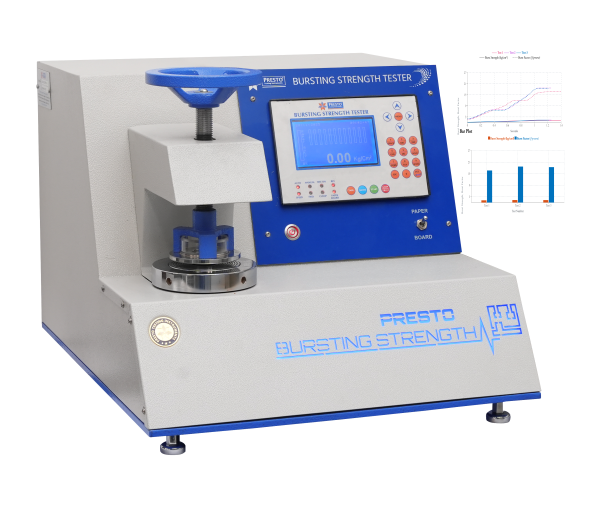

Bursting Strength Tester Digital Cum Computerised Model

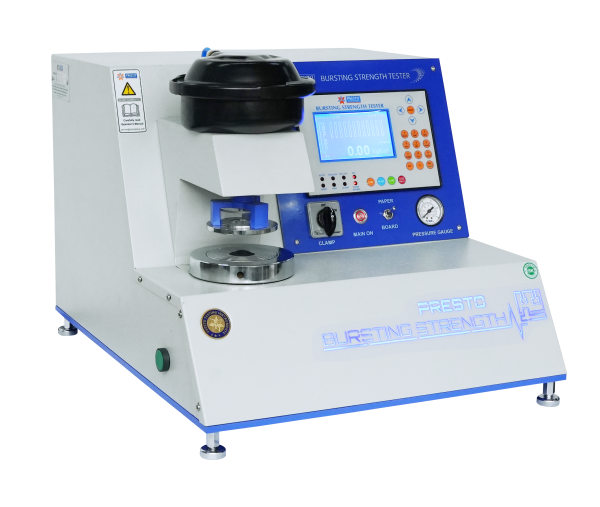

Bursting Strength Tester – Digital Pneumatic Burst Genie 4.0

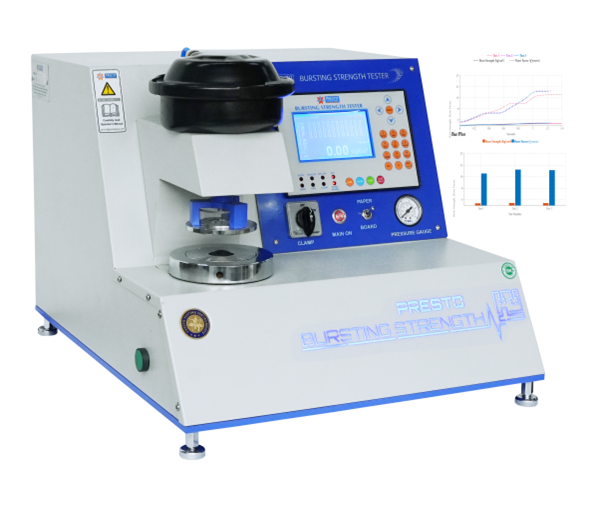

Bursting Strength Tester –Pneumatic Burst Genie 4.0 Computerized
